Stackable Ceramic Shelves for Firing– High Temp Alumina Support Frame up to 1350°C
ZYLAB’s Stackable Ceramic Shelves can be used to support ceramic substrates, such as PCBs or wafers, during high-temperature firing in ovens, kilns, or muffle furnaces(chamber furnaces). These firing frames are constructed from high-quality alumina ceramic, ensuring stability and resistance to thermal shock up to...
Introduction

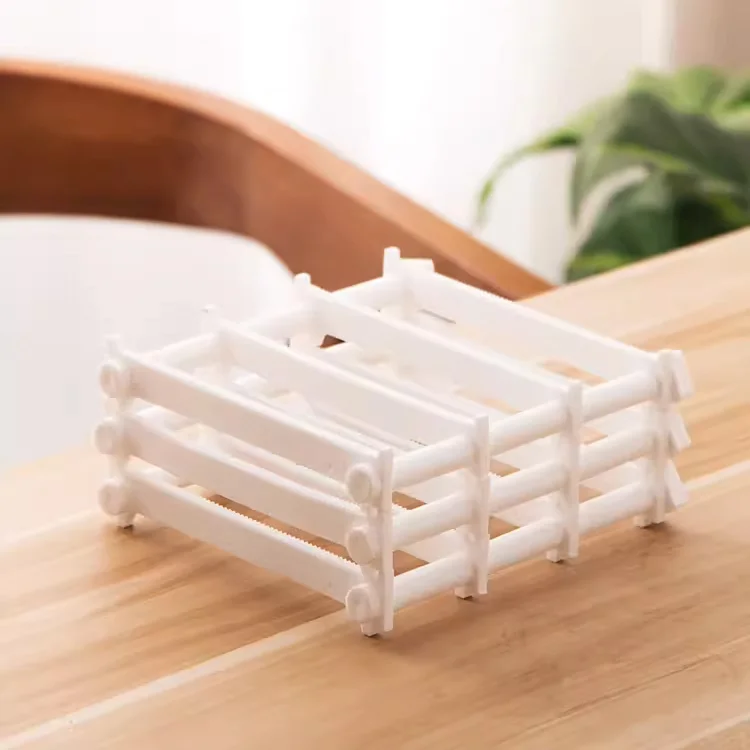

ZYLAB’s Stackable Ceramic Shelves can be used to support ceramic substrates, such as PCBs or wafers, during high-temperature firing in ovens, kilns, or muffle furnaces(chamber furnaces). These firing frames are constructed from high-quality alumina ceramic, ensuring stability and resistance to thermal shock up to 1350°C.
Key Features
- Material: High-temperature resistant alumina ceramic
- Max Operating Temperature: 1350°C
- Dimensions: 183mm × 167mm × 30mm
- Stackable Design: Efficient vertical space usage inside furnaces
- Precise Machining: Stable support for flat ceramic parts during sintering
- Compatible Equipment: Muffle furnaces, chamber furnaces, top-loading kilns, front-loading kilns, etc.
Applications
- Sintering of alumina and ceramic substrates
- Firing of ceramic PCBs and hybrid circuits
- Support for thin ceramic sheets during thermal processing
- Heat treatment in lab-scale kilns
- Ceramic glazing or pre-baking processes
- Hanging or suspension firing of small ceramic components

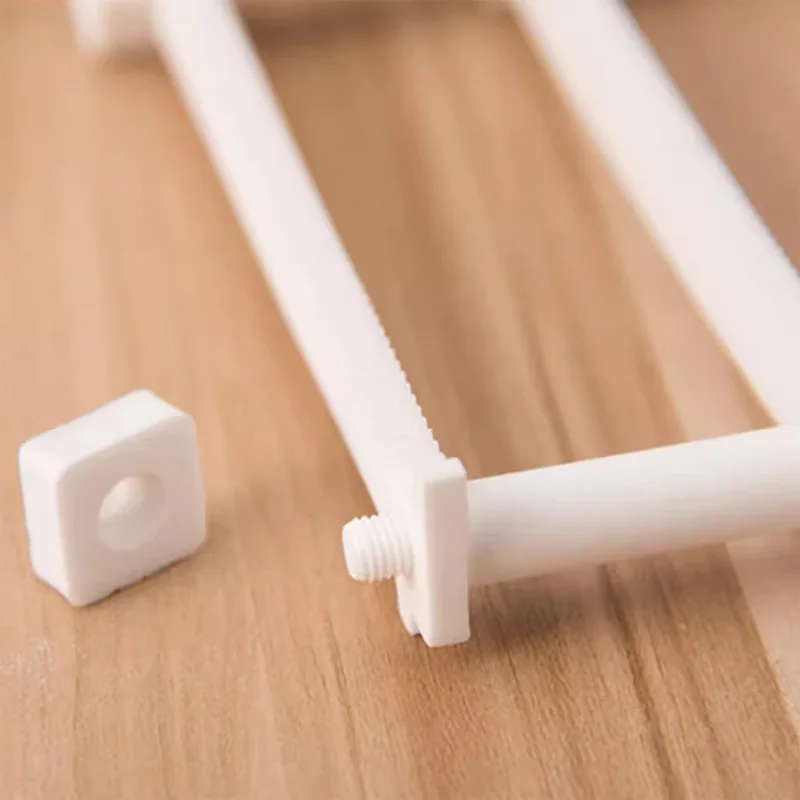

Stackable Ceramic Shelves for Firing– High Temp Alumina Support Frame Up to 1350°C In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
