Alumina Ceramic Tube | High Purity, High Temperature Resistant

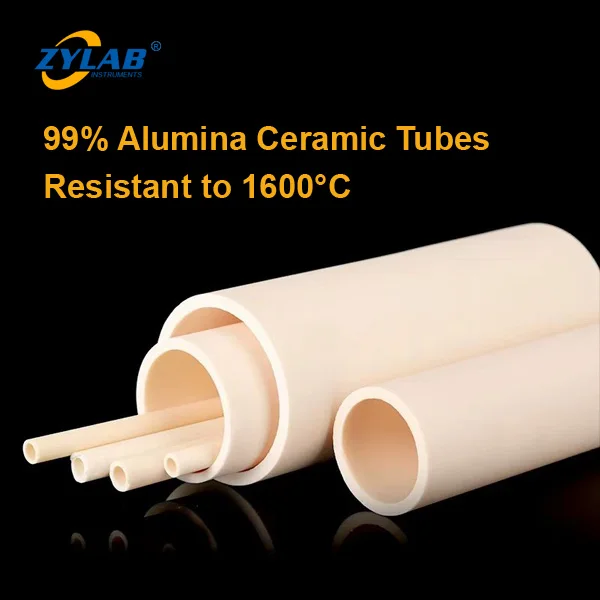

ZYLAB Alumina Ceramic Tube is designed for high-temperature and high-purity applications, offering outstanding thermal stability, excellent corrosion resistance, and mechanical strength. Manufactured from high-purity alumina (>99%), our ceramic tubes are ideal for demanding environments such as laboratory testing,...
Product Details
ZYLAB Alumina Ceramic Tube is designed for high-temperature and high-purity applications, offering outstanding thermal stability, excellent corrosion resistance, and mechanical strength. Manufactured from high-purity alumina (>99%), our ceramic tubes are ideal for demanding environments such as laboratory testing, high-temperature furnaces, and industrial processing.
Whether used for protective sheaths, insulation sleeves, or as part of scientific instrumentation, ZYLAB alumina tubes deliver reliable performance even under extreme conditions.
Material: High-purity alumina (＞99%)
Temperature Resistance: Long-term operating temperature up to 1600°C
Strong and Durable: Stable under thermal and mechanical stress
Corrosion Resistant: Handles harsh chemicals and atmospheres
Excellent Insulation: Reliable electrical insulation at high temperatures
For more information, custom orders, or technical support, please contact us.
Applications
High-temperature furnace components
Protective tubes for thermocouples
Insulating sleeves for heating elements
Laboratory analysis and sample preparation
Gas diffusion and chemical reaction processes
Ceramic support rods and spacers
Why Choose ZYLAB Alumina Ceramic Tubes?
High-Quality Standards:
Designed and manufactured to meet rigorous industrial and laboratory requirements.Custom Solutions:
We offer tailor-made tube dimensions, wall thicknesses, and special designs according to your project needs.Reliable Supply and Support:
Fast lead times, expert technical consultation, and global shipping to ensure a seamless purchasing experience.
Looking for high-quality alumina ceramic tubes for your next project?
Contact ZYLAB today to get a personalized quote, discuss custom designs, or learn more about our full range of ceramic products.
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.

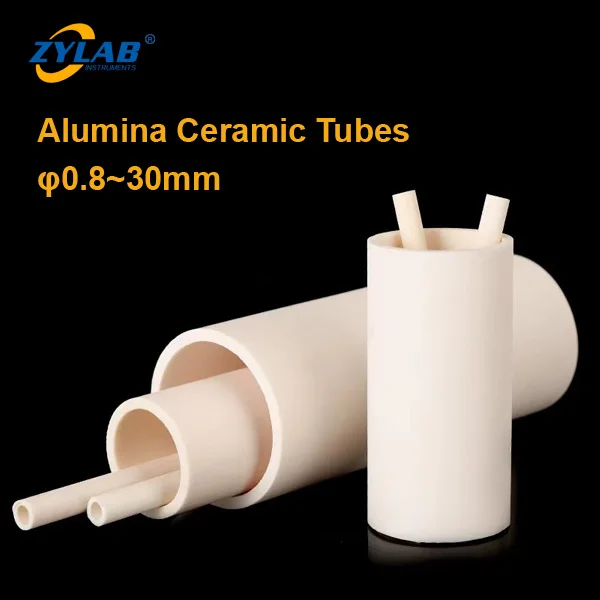

| Alumina Ceramic Tube (ID * OD * Length,UoM:mm) | |||
|---|---|---|---|
| 0.25*0.8*100 | 0.4*0.8*100 | 0.6*1*100 | 0.8*1.5*100 |
| 1*2*100 | 1.5*3*100 | 2*3*100 | 2*4*100 |
| 2*6*100 | 3*5*100 | 3*6*100 | 3*7*100 |
| 3*8*100 | 4*5*100 | 4*6*100 | 4*7*100 |
| 4*8*100 | 4*10*100 | 5*7*100 | 5*8*100 |

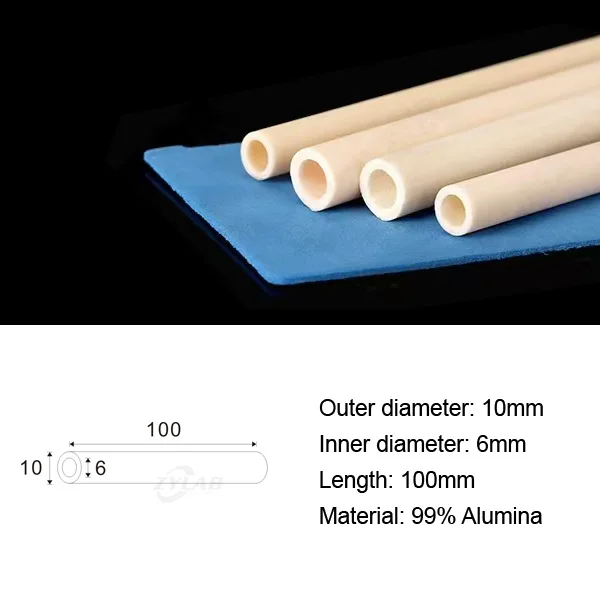

| 5*10*100 | 6*8*100 | 6*9*100 | 6*10*100 |
| 6.5*12*100 | 7*11*100 | 8*12*100 | 8*15*100 |
| 8*16*100 | 9*13*100 | 10*13*100 | 10*14*100 |
| 10*15*100 | 12*15*100 | 12*16*100 | 15*20*100 |
| 18*25*100 | 20*30*100 |
