99% Alumina Kiln Furniture for Muffle Furnace – Setter Plates & Support Pillars for High-Temperature Firing
ZYLAB 99% Alumina Kiln Furniture for Muffle Furnaces is specially designed for high-temperature applications such as sample sintering, heat treatment, and ceramic firing. This modular set typically includes alumina setter plates and support pillars, offering excellent thermal stability, corrosion resistance, and...
Introduction
ZYLAB 99% Alumina Kiln Furniture for Muffle Furnaces is specially designed for high-temperature applications such as sample sintering, heat treatment, and ceramic firing. This modular set typically includes alumina setter plates and support pillars, offering excellent thermal stability, corrosion resistance, and mechanical strength.
Manufactured from 99% high-purity alumina, the components are ideal for clean firing environments and precise thermal processing, even in repeated use cycles at temperatures up to 1700°C.
Whether used in laboratory, dental, or industrial settings, this kiln furniture set ensures reliable and uniform support for your samples during firing.
Please share your muffle furnace specifications (inner chamber dimensions (L×W×H) and temperature requirements) , and we will provide a tailor-made solution for you.
Contact us for free consultation or a quote!
Key Features
High Purity: Made from ≥99% alumina for superior chemical and thermal stability
High Temperature Resistance: Stable performance up to 1700°C
Modular Structure: Includes flat plates and vertical pillars for flexible assembly
Corrosion & Oxidation Resistant: Suitable for demanding firing atmospheres
Precision Machined: High dimensional accuracy for even sample loading
Custom Sizes Available: Tailored to fit different muffle furnace chambers
Applications of Alumina Kiln Furniture
Sample sintering and calcination in laboratory muffle furnaces
Support structure for ceramic or powder metallurgy components
Dental zirconia crown or bridge sintering
High-temperature heat treatment processes
Thermal processing of electronic substrates or advanced materials
Case Study
Client: European university research lab
Furnace type: 1200°C muffle furnace (chamber size 260×330×280 mm)
Client Needs:
High-purity support system for ceramic sintering
Custom size to fit their furnace
Stable, reusable stacking structure
ZYLAB Solution:

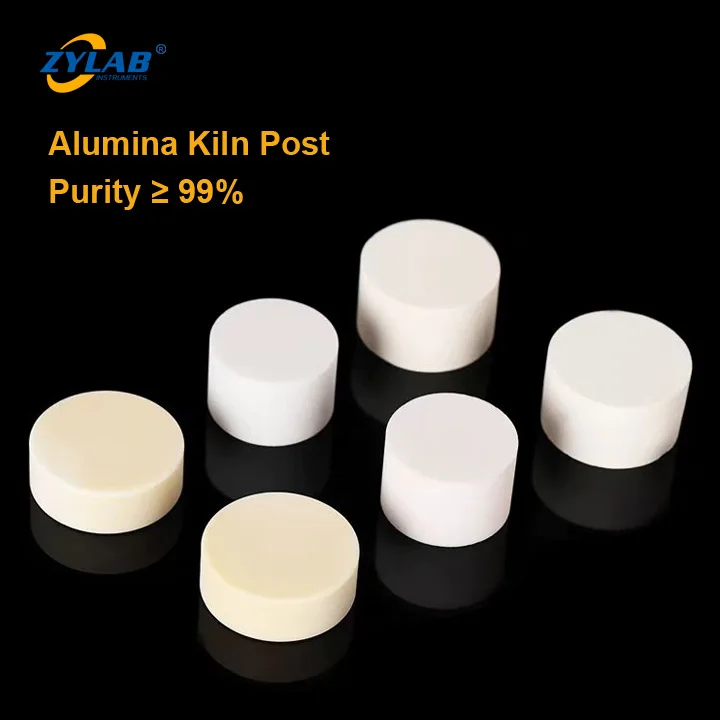

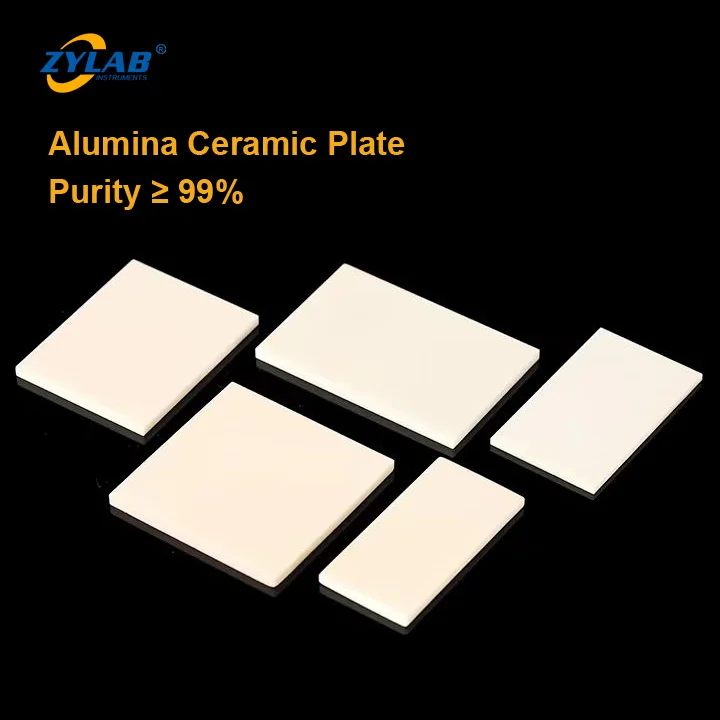

Selected six pieces of 250×158×9 mm 99% alumina plates and twenty pieces of φ30×20 mm 99% alumina support posts.
After assembly, the kiln furniture forms a 6-layer structure with a total size of 250×158×154 mm, perfectly matching the customer’s furnace chamber dimensions.
Results:
Clean surface with high flatness, perfectly suited for use inside the furnace.
Solved the problem of processing multiple samples at once.
Prevents contamination and maintains sample purity.
Customization Service
Customizable in size, thickness, and stacking combinations
Optional features such as holes, grooves, or markings available upon request
Compatible with most horizontal and vertical muffle furnaces
A Furnace Furniture Solution Composed of Alumina Plates and Stands
Custom Alumina Furnace Furniture | Drilling, Engraving and Grooving
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| 20×20×1.5 | 20×20×3 | 30×30×2 | 40×30×3 |
|---|---|---|---|
| 40×40×3 | 45×23×3 | 50×25×3 | 50×30×3 |
| 50×40×3 | 50×50×3 | 50.8×50.8×0.5 | 50.8×50.8×1 |
| 60×30×3 | 60×40×3 | 60×50×3 | 60×60×3 |
| 60×60×10 | 65×65×3 | 70×70×3 | 75×75×4 |
| 80×40×3 | 80×40×4 | 80×80×4 | 84×75×8 |
| 85×85×4 | 90×60×3 | 90×90×4 | 100×30×3 |
| 100×40×3 | 100×40×6 | 100×40×9 | 100×50×3 |
| 100×50×9 | 100×60×3 | 100×65×3 | 100×84×1.5 |
| 100×84×3 | 100×84×4 | 100×84×6 | 100×100×3.5 |
| 100×100×5 | 100×100×7 | 100×100×8 | 101.6×101.6×0.5 |
| 101.6×101.6×1 | 105×105×4 | 110×110×4 | 115×55×3 |
| 115×65×4 | 115×115×4 | 120×60×5 | 120×80×5 |
| 120×120×4 | 120×120×6 | 120×120×10 | 130×130×6 |
| 135×120×7 | 140×140×6 | 150×130×7 | 150×150×6 |
| 150×150×7 | 155×40×4 | 160×120×5 | 160×140×5 |
| 160×160×6 | 180×180×6 | 190×190×4 | 200×100×6 |
| 200×150×5 | 200×200×8 | 220×220×8 | 230×115×30 |
| 230×230×8 | 250×155×9 | 250×250×8 | 300×150×8 |
| 300×200×8 | 300×300×6 | 310×185×8 | 320×90×10 |
| 320×100×10 | 160×140×9 | 320×320×6 | 330×330×15 |
