High-Purity Alumina Kiln Furniture for Laboratory Furnace
ZYLAB’s high-purity alumina kiln furniture is engineered for precision sintering, thermal processing, and sample support in laboratory muffle furnaces and box furnaces. Manufactured from ≥99% pure alumina ceramic, these kiln components offer excellent thermal shock resistance, chemical stability, and dimensional...
Introduction
ZYLAB’s high-purity alumina kiln furniture is engineered for precision sintering, thermal processing, and sample support in laboratory muffle furnaces and box furnaces. Manufactured from ≥99% pure alumina ceramic, these kiln components offer excellent thermal shock resistance, chemical stability, and dimensional accuracy—ensuring clean, consistent performance even in high-temperature environments up to 1700°C.
Please share your muffle furnace or box furnace specifications (inner chamber dimensions (L×W×H) and temperature requirements) , and we will provide a tailor-made solution for you.
Contact us for free consultation or a quote!
Key Features
High Purity: Made of ≥99% Al₂O₃ alumina ceramic, ensuring minimal contamination and high resistance to corrosion and thermal stress.
Customizable Design: Available in various plate sizes, thicknesses, and stacking configurations to fit both standard and custom furnace chambers.
Excellent Flatness: Precision-machined surfaces maintain sample stability and temperature uniformity.
Reusable & Durable: Long service life across multiple sintering cycles.

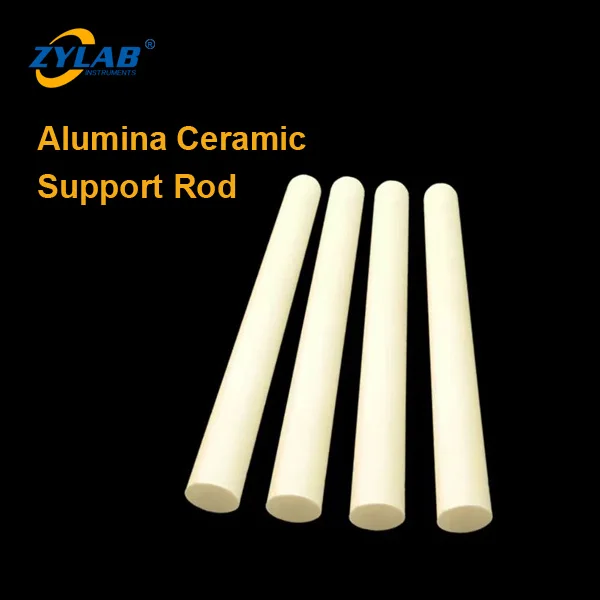

Modular System: Includes setter plates, support posts, and optional grooves or holes for secure multi-level stacking.
Applications of High-Purity Alumina Kiln Furniture
Ceramic sample sintering
Powder metallurgy research
Thermal post-processing in additive manufacturing
High-purity material firing
R&D in universities and industrial laboratories
Ash content testing, thermal decomposition
Why Choose ZYLAB Kiln Furniture?
Precision-engineered for laboratory and industrial furnaces
Fast response and full customization available
Compatible with most horizontal and vertical muffle furnace brands
Trusted by research institutions across Europe and beyond
A Furnace Furniture Solution Composed of Alumina Plates and Stands
Custom Alumina Furnace Furniture | Drilling, Engraving and Grooving
Specifications
Figures below are the manufacturer data for this model. Anything not listed is confirmed in writing with the quotation rather than estimated here.
| 20×20×1.5 | 20×20×3 | 30×30×2 | 40×30×3 |
|---|---|---|---|
| 40×40×3 | 45×23×3 | 50×25×3 | 50×30×3 |
| 50×40×3 | 50×50×3 | 50.8×50.8×0.5 | 50.8×50.8×1 |
| 60×30×3 | 60×40×3 | 60×50×3 | 60×60×3 |
| 60×60×10 | 65×65×3 | 70×70×3 | 75×75×4 |
| 80×40×3 | 80×40×4 | 80×80×4 | 84×75×8 |
| 85×85×4 | 90×60×3 | 90×90×4 | 100×30×3 |
| 100×40×3 | 100×40×6 | 100×40×9 | 100×50×3 |
| 100×50×9 | 100×60×3 | 100×65×3 | 100×84×1.5 |
| 100×84×3 | 100×84×4 | 100×84×6 | 100×100×3.5 |
| 100×100×5 | 100×100×7 | 100×100×8 | 101.6×101.6×0.5 |
| 101.6×101.6×1 | 105×105×4 | 110×110×4 | 115×55×3 |
| 115×65×4 | 115×115×4 | 120×60×5 | 120×80×5 |
| 120×120×4 | 120×120×6 | 120×120×10 | 130×130×6 |
| 135×120×7 | 140×140×6 | 150×130×7 | 150×150×6 |
| 150×150×7 | 155×40×4 | 160×120×5 | 160×140×5 |
| 160×160×6 | 180×180×6 | 190×190×4 | 200×100×6 |
| 200×150×5 | 200×200×8 | 220×220×8 | 230×115×30 |
| 230×230×8 | 250×155×9 | 250×250×8 | 300×150×8 |
| 300×200×8 | 300×300×6 | 310×185×8 | 320×90×10 |
| 320×100×10 | 160×140×9 | 320×320×6 | 330×330×15 |
High-Purity Alumina Kiln Furniture for Laboratory Furnace In Detail
Processes This Unit Supports
These are the applications ZYLAB lists this model under. Each link opens the full equipment set for that process, which is useful when a project needs more than one machine.
- General laboratory sample preparation
Who Orders It
Fields this model already works in, plus what ZYLAB puts behind it: a 2-year warranty on most products, glass excluded, spare parts in stock and free application support by WhatsApp or email.
- University and institute research laboratories
Related Projects
Related Equipment
Models from the same family and the same processes, in case a different chamber size or temperature range fits better.
Protective Gas Box for Biochar Pyrolysis in Box Furnaces
Grooved Alumina Crucible – High-Temperature Ceramic Crucible
Alumina Plate with Grooves – High-Temperature Firing Support
Stackable Setter Plate with Spacers – High-Temp Alumina Supports for Sintering
Stackable Ceramic Shelves for Firing– High Temp Alumina Support Frame up to 1350°C
Support Pillar for Electric Furnace Kiln Furniture
99% Alumina Kiln Furniture for Muffle Furnace – Setter Plates & Support Pillars for High-Temperature Firing

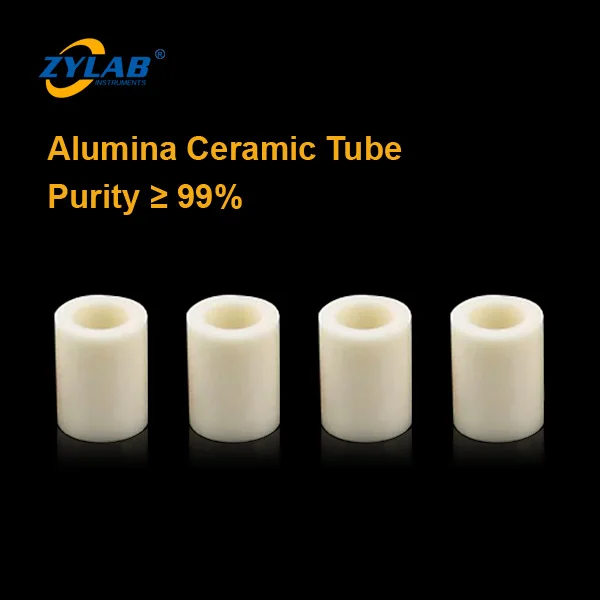

Alumina Ceramic Tube | High Purity, High Temperature Resistant
