Alumina Plate with Grooves – High-Temperature Firing Support
The ZYLAB Alumina Plate with Grooves is a high-performance firing support plate designed for high-temperature applications in furnaces and kilns. Manufactured from >95% high-purity alumina, it offers excellent thermal stability, mechanical strength, and chemical resistance. The unique grooved surface enhances airflow...
Description
The ZYLAB Alumina Plate with Grooves is a high-performance firing support plate designed for high-temperature applications in furnaces and kilns. Manufactured from >95% high-purity alumina, it offers excellent thermal stability, mechanical strength, and chemical resistance. The unique grooved surface enhances airflow and ensures even heat distribution, providing a stable base for samples, crucibles, and workpieces during firing or sintering processes.

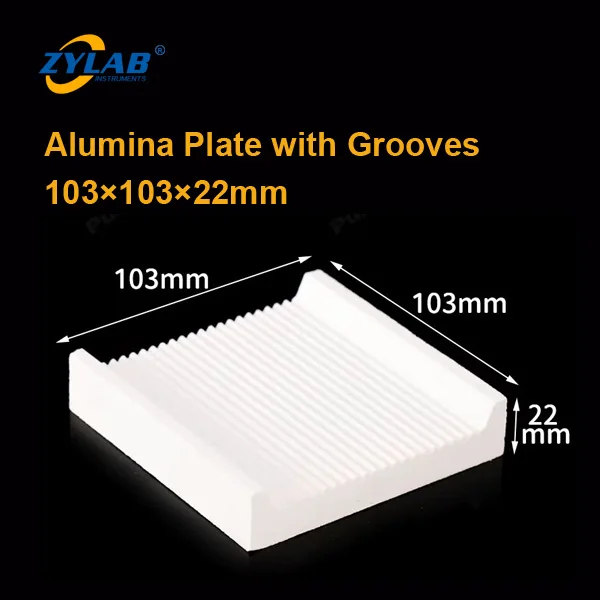

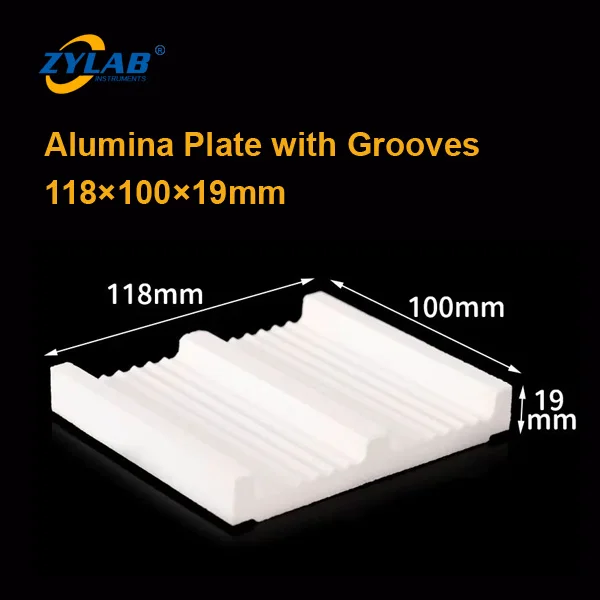

Dimensions: 103×103×22mm & 118×100×19mm
Alumina Purity: >95%
Continuous operating temperature: ≤1600°C
Multiple plates can be stacked or combined to form a complete furnace set.
We offer customized services according to your requirements!
If you need more detailed information, please contact us immediately. We offer free quotes on all products!
Key Features
High-Purity Alumina (>95%) for superior thermal and chemical resistance
Grooved Surface Design promotes uniform heat transfer and air circulation
Robust Mechanical Strength withstands heavy loads and thermal shock
Continuous Working Temperature up to 1600°C for long-term reliability
Chemical Inertness against acids, alkalis, and molten salts
Customizable Dimensions and Groove Patterns to fit specific requirements
Applications
Ceramic and porcelain firing and sintering
Powder metallurgy heat treatment
Laboratory high-temperature experiments
Support platform for crucibles in industrial and research furnaces
