Carbide End Mill
This is a solid carbide end mill for high-speed milling of steel, cast iron, stainless steel, and aluminum. It is designed for finishing and semi-finishing operations with stable performance and long service life. The tool is produced…
Product Overview

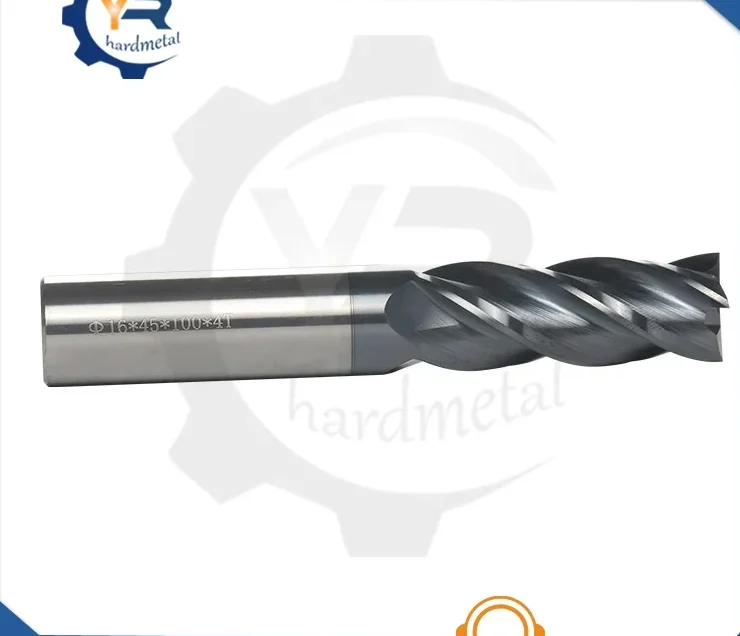

This is a solid carbide end mill for high-speed milling of steel, cast iron, stainless steel, and aluminum. It is designed for finishing and semi-finishing operations with stable performance and long service life. The tool is produced from tungsten carbide rods and shaped to the customer's drawing or sample. It features high rigidity, sharp cutting edges, and good dynamic balance for consistent results.
Key Benefits
- Long service life reduces tool change frequency during production
- High rigidity and sharp edge ensure clean cutting surface quality
- Good symmetry and dynamic balance support high-speed milling without vibration
- Smooth chip removal allows for higher feed rates and larger cutting volumes
- Made to drawing or sample, so it matches existing tooling or new designs
Technical Data
Values below come from the product data we publish. Anything not listed is confirmed against your drawing at quotation.
| Material | Solid tungsten carbide (WC-Co) |
|---|---|
| Application | Machining steel cast iron stainless steel aluminum |
| Finish | Ground to drawing |
| Dimensions | To customer drawing or sample |
| Lead Time | Stock items 3-5 days after payment; customised items quoted per order |
| Grades Available | YL10.2 YG6 YG6X YG8 YG8X YG10 YG12 YG15 YG15X YN6 YN9 |
Problems It Solves
- Frequent tool breakage or dulling in high-speed or high-load milling operations
- Poor surface finish due to vibration or imbalance in the cutting tool
- Inconsistent chip removal leading to clogging and tool damage
- Mismatch between tool geometry and machine setup, causing poor accuracy
- Lack of traceability or test verification before delivery, leading to rework
Who It Is For
- Machinery and mechanical parts manufacturers needing precision milling tools
- Tooling shops producing custom parts with tight tolerances
- CNC machining centres running high-speed operations on multiple materials
- Mould and die makers requiring long-life end mills for complex contours
- Manufacturers upgrading from HSS or coated tools to solid carbide for better performance
Application Scenarios
- Finishing and semi-finishing of steel components in automotive and machinery manufacturing
- Machining cast iron housings and brackets with consistent surface finish
- Cutting stainless steel parts in chemical and food processing equipment
- Milling aluminum components in aerospace and electronics industries
- High-speed machining in CNC vertical and horizontal machining centres
Technical Features
- High precision and good symmetry for stable high-speed operation
- Dynamic balance tested to reduce vibration during cutting
- Sharp cutting edge and high rigidity for clean surface finish
- Smooth chip removal channel design for high feed and depth of cut

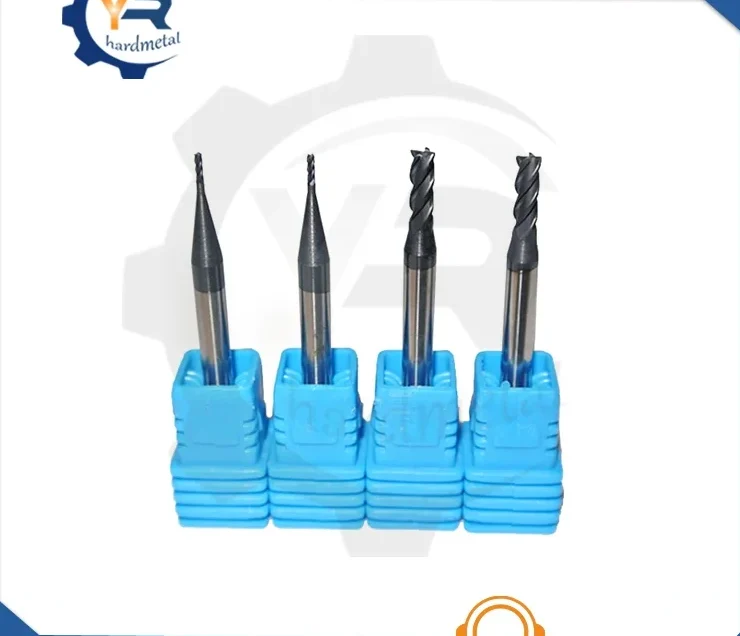

- Available in various handle types including right angle, long neck, ball nose, corner radius
Materials and Grades
- Tungsten carbide rods with cobalt content selected for hardness and toughness balance
- Lower cobalt grades such as YL10.2 for high wear resistance in steel and cast iron
- Higher cobalt grades such as YG15 for impact resistance in interrupted cuts or hard materials
Customisation Options
- Manufactured to customer drawings or physical samples
- Available in various geometries: ball nose, corner radius, long neck, right angle
- Grades selected based on material and cutting conditions
- Samples provided for pre-testing before bulk order commitment
How This Part Is Made
Drawing or sample review and grade selection
Material preparation from tungsten carbide rods
CNC grinding of cutting edges and flute geometry
Heat treatment and sintering to stabilise structure
Precision grinding and balancing
Dimensional and physical inspection
Packaging and shipping
Quality Control
- Physical properties, shape and tolerance are checked before shipping
- Every order is tested before bulk production is released
- Inspection photographs of the finished order are sent for confirmation before delivery
Use Guide
- Provide the material to be machined, cutting speed, feed rate, and required finish so the grade and geometry can be matched
- Send the drawing or sample for accurate replication, especially for non-standard shapes
- Use the tool at recommended speeds and feeds to avoid edge chipping
- Inspect the tool after each use for wear or chipping, especially in interrupted cuts
- Keep one sample from the first batch for comparison in future orders
How It Compares With The Alternatives
| Alternative | Trade-off |
|---|---|
| HSS end mill | HSS is cheaper and easier to resharpen, but wears out quickly in steel and cast iron, leading to more tool changes and lower productivity |
| Coated carbide end mill | Coated tools have a surface layer that wears through; once gone, the base material fails rapidly. Solid carbide wears uniformly and lasts longer |
| Standard stock end mill | Standard sizes may not match the required geometry or length; custom tools eliminate the need for adapters or compromises |
Carbide End Mill FAQ
Are you a trade company or a manufacturer?
A manufacturer. The company has produced tungsten carbide parts for over 15 years and takes on design and processing of carbide products with technical support.
Where is your factory located?
Zhuzhou City, Hunan Province, China, which is the country's tungsten carbide production base.
Can you produce the products according to my own drawing?
Yes. OEM and ODM to customer drawings is standard. We can produce end mills based on your drawing or sample.
Can I get a sample before placing a bulk order?
Yes. Samples are available for pre-testing. Contact us with your drawing or sample to request a quote.
How long does an order take?
Stock items are shipped 3-5 days after payment is received. Customised items are given a delivery time in the quotation.
How do I know the parts were checked before they shipped?
Physical properties, shape and tolerance are inspected before shipping, and detailed inspection photographs of the order are sent for confirmation before delivery.
Do you offer a warranty?
Yes. We offer a 100% satisfaction guarantee. If there is a quality issue with overseas orders, provide photos by email and we will replace the parts at our cost.
