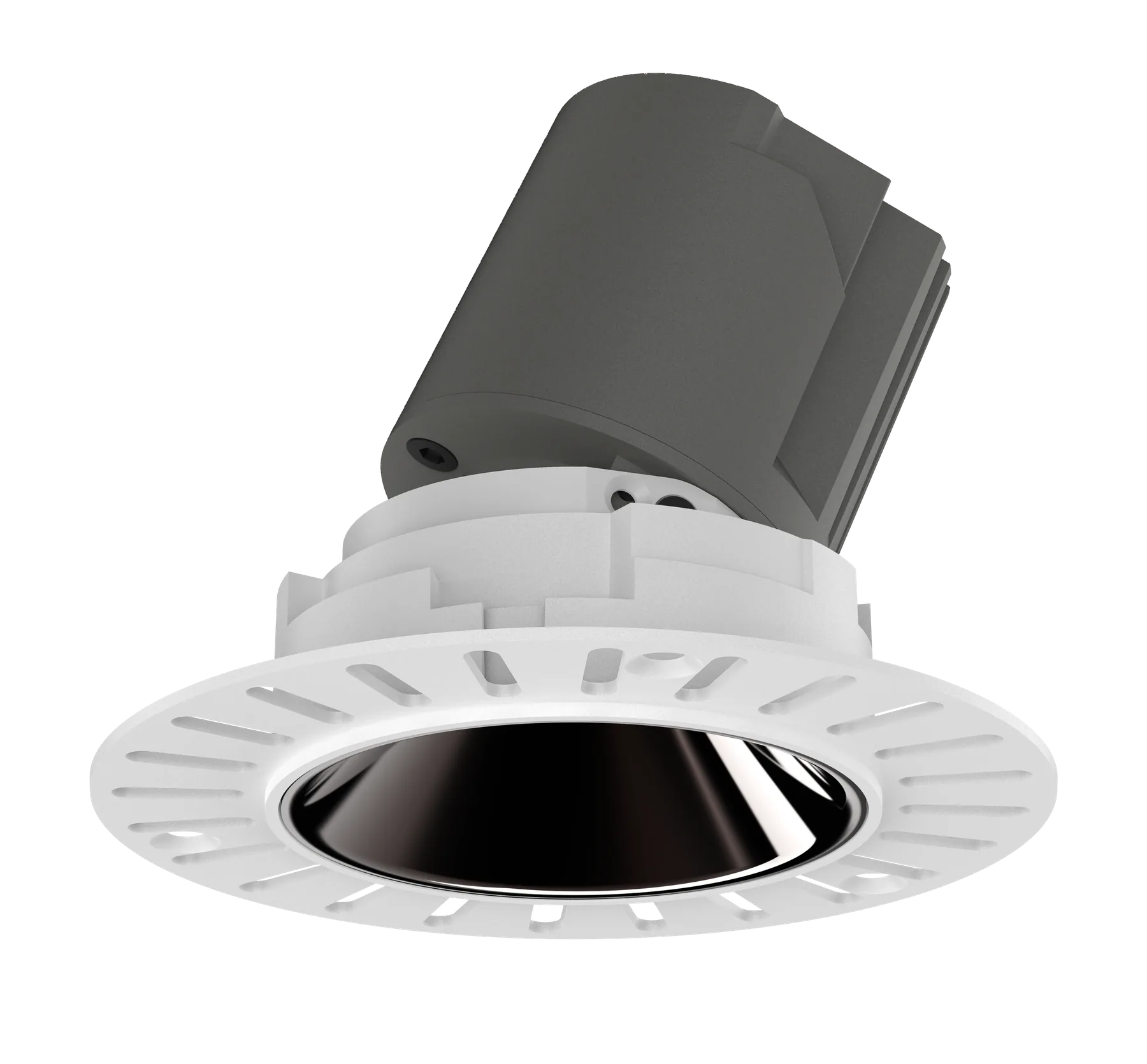

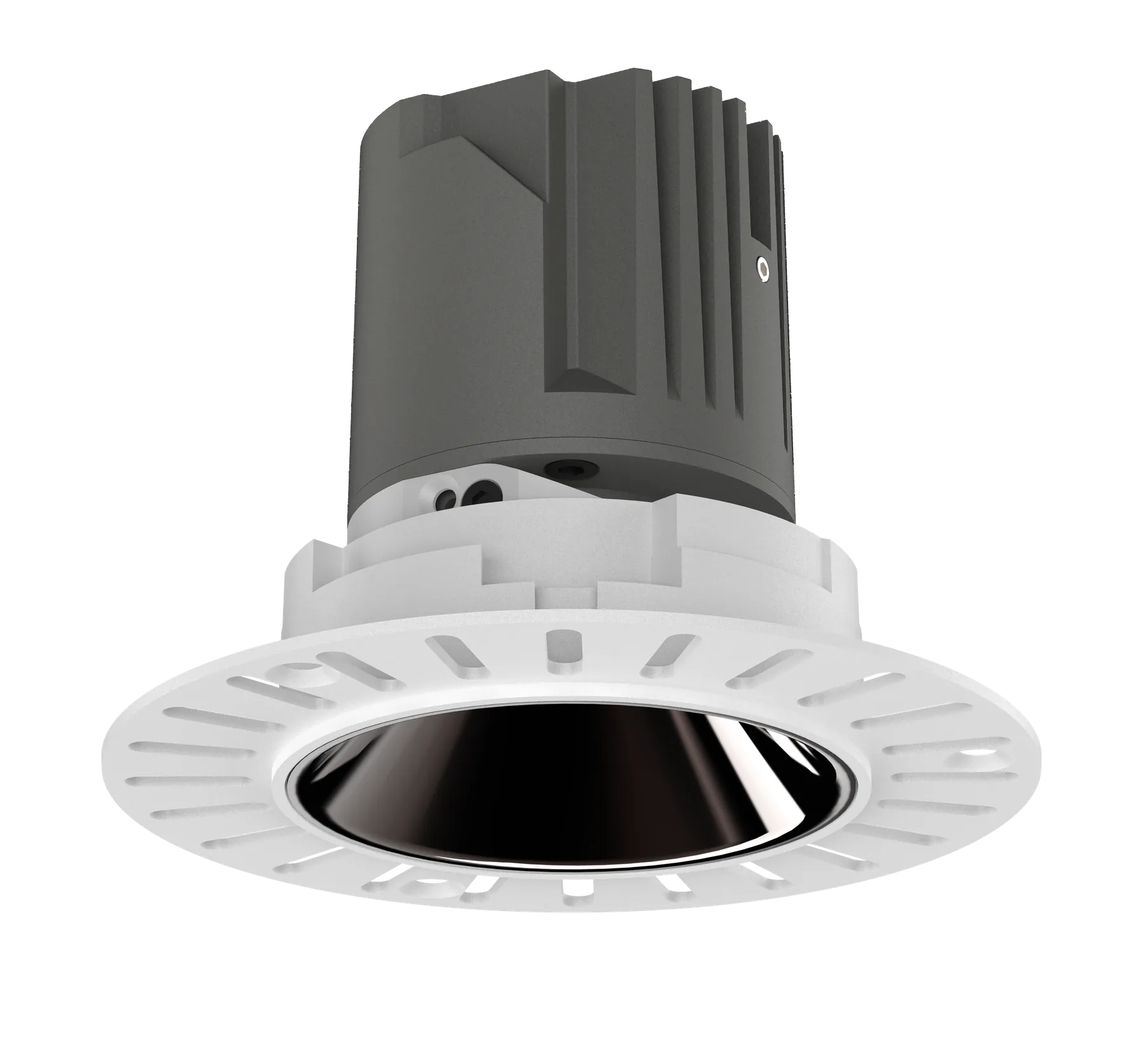

YY71011 S1 Series LED Spotlight 12 W
The YY71011 is a recessed spotlight rated at 12 W. It drops into a Ø55 mm opening and is supplied with a choice of 15°, 24°, 38° and 60° optics, so the same ceiling position can be set up for accent light or for general cover. Like the rest of the range it uses a die-cast aluminium body for passive cooling, with no fan to fail. The reflector is offered in gun black / bright silver / matte black / matte white, which is what sets how dark the aperture looks from normal standing and seated angles.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The YY71011
- 4 beam options on one body: 15°, 24°, 38° and 60°
- Fixed Ø55 mm ceiling cutout shared with other models in the range
- 12 W rating suited to accent lighting on standard commercial ceilings
- Reflector finishes in gun black / bright silver / matte black / matte white
- Body colour in white + grey
- Overall size 82 x H86 mm
What It Fixes On Site
- Display cabinets and niches with almost no ceiling depth
- Tall ceilings where a wide beam loses intensity before it lands
- Projects that need matching mini and full-size heads
- Reflector finishes that show up as bright rings in photographs
Published Figures For The YY71011
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 12 W |
|---|---|
| Beam Angle | 15°, 24°, 38° and 60° |
| Dimensions (mm) | 82 x H86 |
| Ceiling Cutout (mm) | Ø55 |
| LED Chip Platform | 1304/020/1204/1507 |
| Reflector Finish | Gun black / bright silver / matte black / matte white |
| Body Colour | White + Grey |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | YY71011 |
How It Is Built
- Light engine platform 1304/020/1204/1507
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24°, 38° and 60°
- Passive cooling, no fan
Where The YY71011 Is Used
Jewellery and watch cabinets
Wine cabinets and wardrobes
Hotel corridors
High-ceiling fashion floors
Who Buys This Model
- Retail and hospitality projects mixing cabinet and ceiling light
- Designers specifying very narrow accent beams
- OEM customers who need a full aperture ladder in one family
- Distributors replacing several suppliers with one series
Specifying and Installing It
- Cut the ceiling to Ø55 mm and check the void clears the 82 x H86 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 38° and 60° are available and the optic is fitted at the factory.
- Choose the reflector finish by room. Gun black / bright silver / matte black / matte white are offered on this model.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The YY71011 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
| Compared With | Difference |
|---|---|
| YY71006 | Both drop into the same Ø55 mm opening; 12 W here against 8 W; beam angles only this model offers: 60°; the YY71006 adds 5°, 8°, 10°, 50°. |
| YY71009 | Both drop into the same Ø55 mm opening; 12 W here against 8 W; beam angles only this model offers: 60°; the YY71009 adds 5°, 8°, 10°, 50°. |
Related Models In The S1 Series
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
YY71011 Questions
What ceiling cutout does the YY71011 need?
Ø55 mm. The body measures 82 x H86 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the YY71011?
15°, 24°, 38° and 60°. The angle is fixed per order line, so one project can take several angles in this same model.
What reflector finishes are available?
Gun black / bright silver / matte black / matte white. Darker finishes keep the aperture looking dark from normal viewing angles; brighter finishes return more light into the beam.
Can the YY71011 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the YY71011?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The YY71011
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
