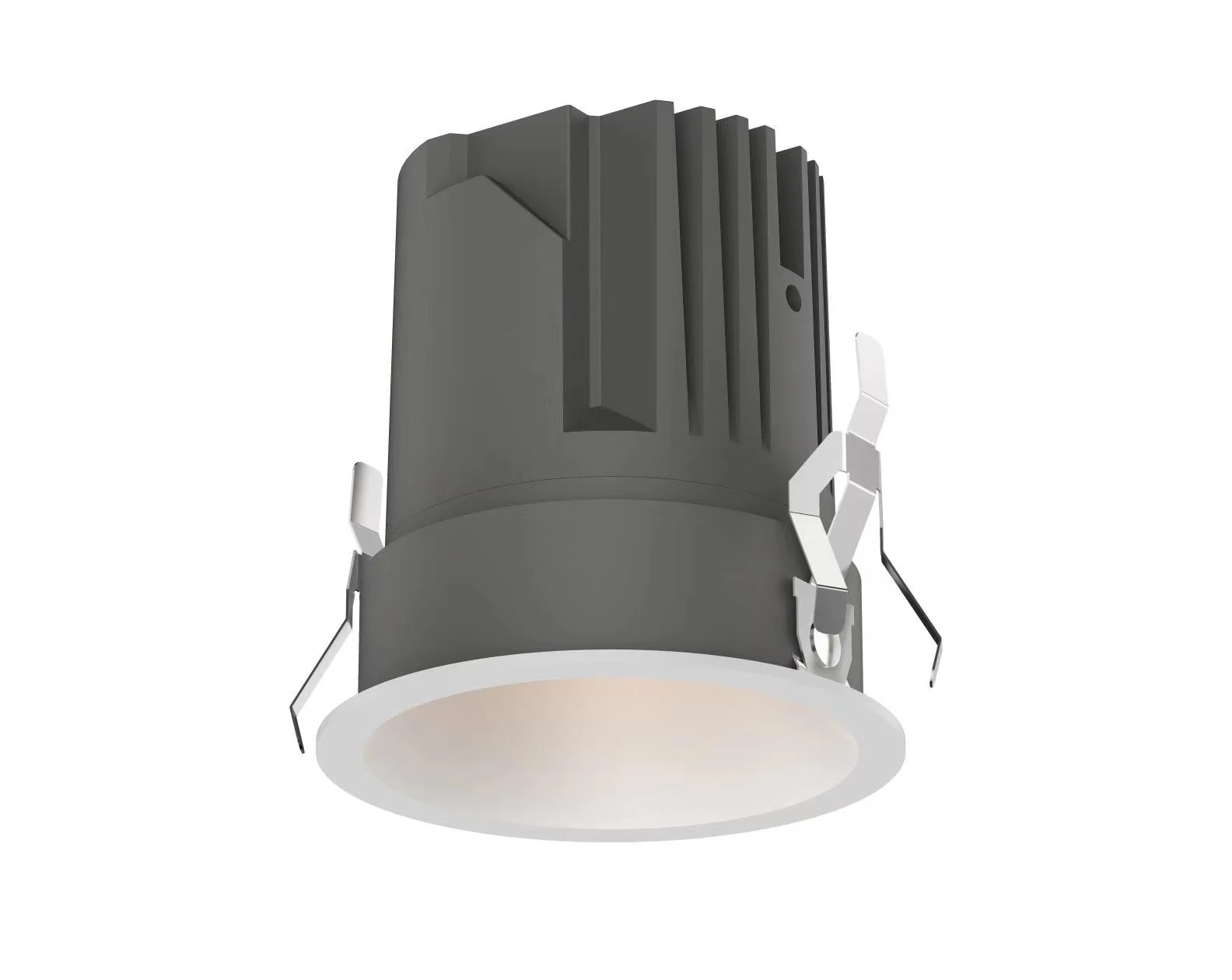

YY71007A S1 Series LED Spotlight 12 W
Specified at 12 W, the YY71007A is the S1 Series model for projects that have settled on a Ø65 mm aperture. Beam angles of 15°, 24°, 38° and 60° are available, which is what lets one aperture size serve several lighting jobs. Cooling is passive through the cast aluminium body, a design our own die-casting workshop produces to the same geometry each run. Available reflector finishes are matte black / matte white, chosen per zone rather than per building.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The YY71007A
- 4 beam options on one body: 15°, 24°, 38° and 60°
- Fixed Ø65 mm ceiling cutout shared with other models in the range
- 12 W rating suited to accent lighting on standard commercial ceilings
- Reflector finishes in matte black / matte white
- Body colour in white / black
- Overall size 72 x H86 mm
What It Fixes On Site
- Projects that need matching mini and full-size heads
- Reflector finishes that show up as bright rings in photographs
- Display cabinets and niches with almost no ceiling depth
- Tall ceilings where a wide beam loses intensity before it lands
Published Figures For The YY71007A
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 12 W |
|---|---|
| Beam Angle | 15°, 24°, 38° and 60° |
| Dimensions (mm) | 72 x H86 |
| Ceiling Cutout (mm) | Ø65 |
| LED Chip Platform | 1304/0202/1507 |
| Reflector Finish | matte black / matte white |
| Body Colour | White / Black |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | YY71007A |
How It Is Built
- Light engine platform 1304/0202/1507
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24°, 38° and 60°
- Passive cooling, no fan
Where The YY71007A Is Used
Hotel corridors
High-ceiling fashion floors
Jewellery and watch cabinets
Wine cabinets and wardrobes
Who Buys This Model
- OEM customers who need a full aperture ladder in one family
- Distributors replacing several suppliers with one series
- Retail and hospitality projects mixing cabinet and ceiling light
- Designers specifying very narrow accent beams
Specifying and Installing It
- Cut the ceiling to Ø65 mm and check the void clears the 72 x H86 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 38° and 60° are available and the optic is fitted at the factory.
- Choose the reflector finish by room. matte black / matte white are offered on this model.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The YY71007A Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The S1 Series
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
YY71007A Questions
What ceiling cutout does the YY71007A need?
Ø65 mm. The body measures 72 x H86 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the YY71007A?
15°, 24°, 38° and 60°. The angle is fixed per order line, so one project can take several angles in this same model.
What reflector finishes are available?
matte black / matte white. Darker finishes keep the aperture looking dark from normal viewing angles; brighter finishes return more light into the beam.
Can the YY71007A be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the YY71007A?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The YY71007A
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
