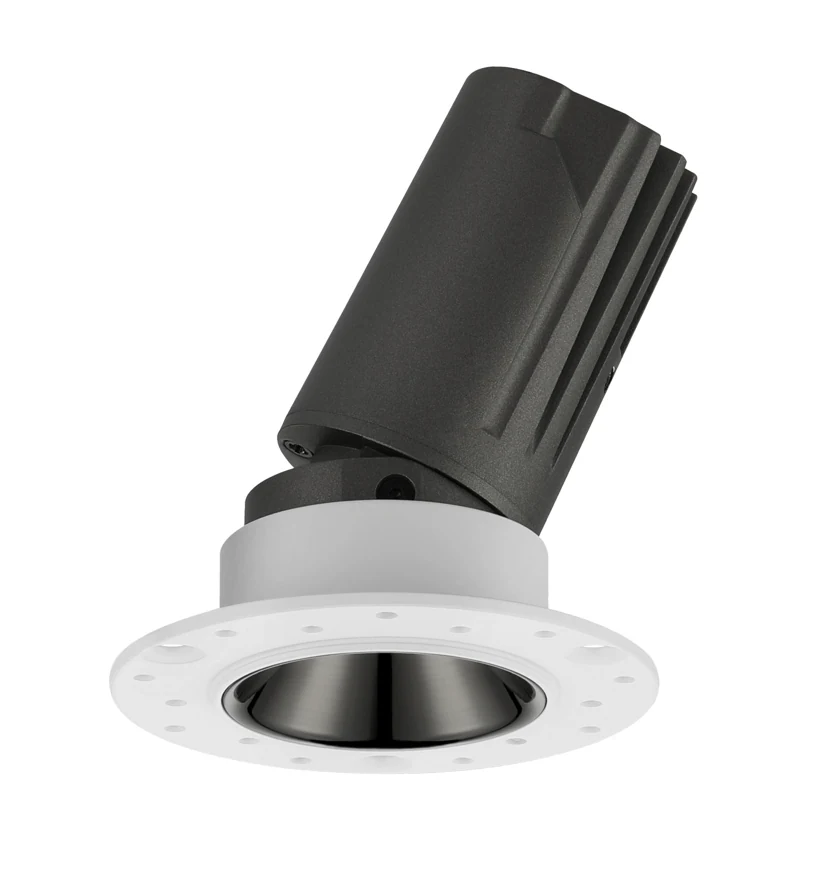

YY71010 S1 Series LED Spotlight 8 W
The YY71010 is the 8 W spotlight in the S1 Series. Its 70 x H86 mm body sits in a Ø45 mm cutout and the optic is chosen at order stage from 5°, 8°, 10°, 15°, 24°, 38° and 50°. Cooling is passive through the cast aluminium body, a design our own die-casting workshop produces to the same geometry each run. The reflector is offered in gun black / bright silver / matte black / matte white, which is what sets how dark the aperture looks from normal standing and seated angles.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The YY71010
- 7 beam options on one body: 5°, 8°, 10°, 15°, 24°, 38° and 50°
- Fixed Ø45 mm ceiling cutout shared with other models in the range
- 8 W rating suited to accent lighting on standard commercial ceilings
- Reflector finishes in gun black / bright silver / matte black / matte white
- Body colour in white + grey
- Overall size 70 x H86 mm
What It Fixes On Site
- Tall ceilings where a wide beam loses intensity before it lands
- Projects that need matching mini and full-size heads
- Reflector finishes that show up as bright rings in photographs
- Display cabinets and niches with almost no ceiling depth
Published Figures For The YY71010
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 8 W |
|---|---|
| Beam Angle | 5°, 8°, 10°, 15°, 24°, 38° and 50° |
| Dimensions (mm) | 70 x H86 |
| Ceiling Cutout (mm) | Ø45 |
| LED Chip Platform | 1304 |
| Reflector Finish | Gun black / bright silver / matte black / matte white |
| Reflector Material | Aluminium |
| Body Colour | White + Grey |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | YY71010 |
How It Is Built
- Light engine platform 1304
- Die-cast aluminium housing produced in our own casting workshop
- Aluminium reflector
- Recessed installation
- Beam angle fixed per order line from 5°, 8°, 10°, 15°, 24°, 38° and 50°
- Passive cooling, no fan
Where The YY71010 Is Used
Wine cabinets and wardrobes
Hotel corridors
High-ceiling fashion floors
Jewellery and watch cabinets
Who Buys This Model
- Designers specifying very narrow accent beams
- OEM customers who need a full aperture ladder in one family
- Distributors replacing several suppliers with one series
- Retail and hospitality projects mixing cabinet and ceiling light
Specifying and Installing It
- Cut the ceiling to Ø45 mm and check the void clears the 70 x H86 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 5°, 8°, 10°, 15°, 24°, 38° and 50° are available and the optic is fitted at the factory.
- Choose the reflector finish by room. Gun black / bright silver / matte black / matte white are offered on this model.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The YY71010 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The S1 Series
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
YY71010 Questions
What ceiling cutout does the YY71010 need?
Ø45 mm. The body measures 70 x H86 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the YY71010?
5°, 8°, 10°, 15°, 24°, 38° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What reflector finishes are available?
Gun black / bright silver / matte black / matte white. Darker finishes keep the aperture looking dark from normal viewing angles; brighter finishes return more light into the beam.
Can the YY71010 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the YY71010?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The YY71010
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
