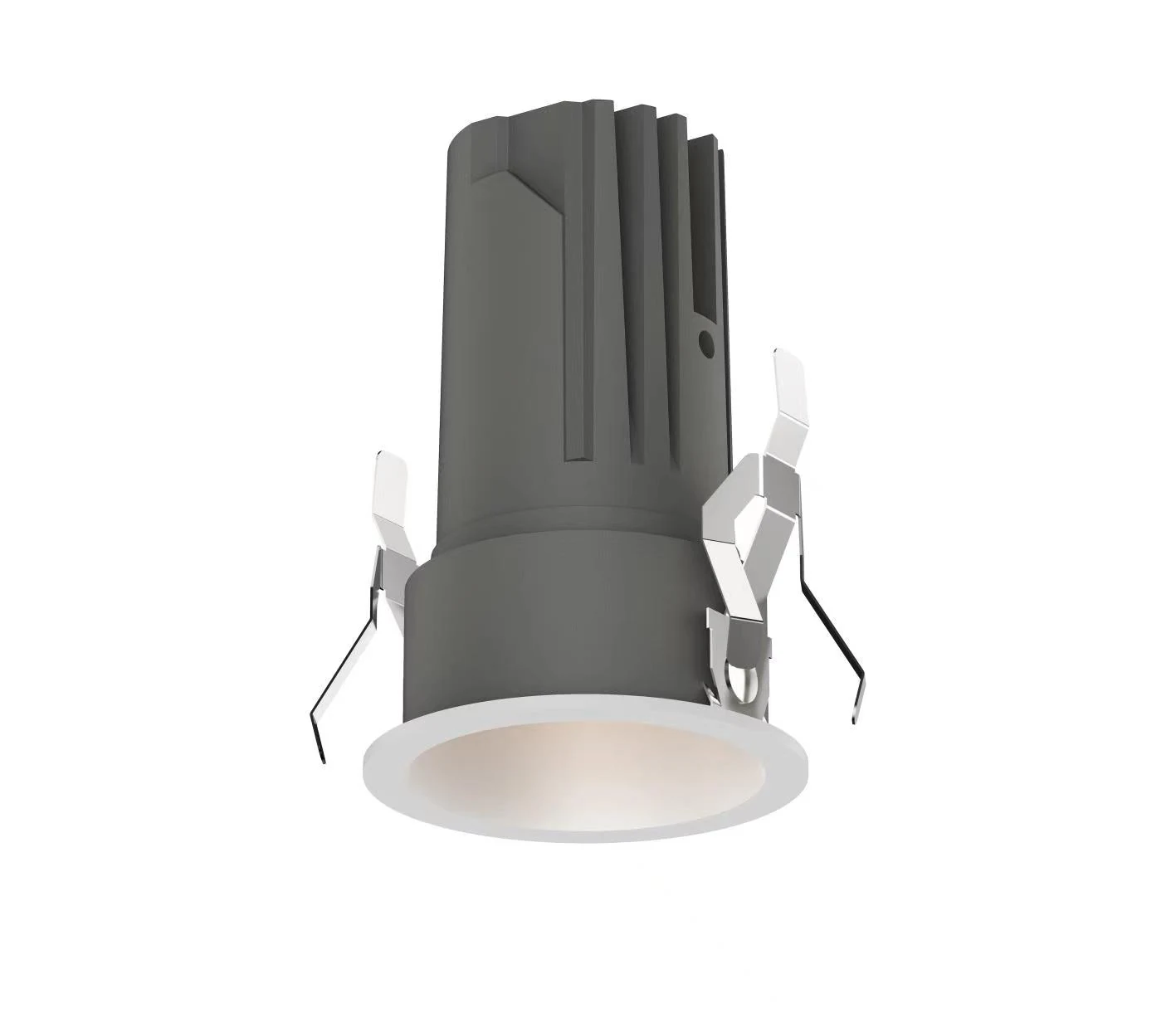

YY71005A S1 Series LED Spotlight 8 W
Specified at 8 W, the YY71005A is the S1 Series model for projects that have settled on a Ø45 mm aperture. Beam angles of 15°, 24°, 38° and 50° are available, which is what lets one aperture size serve several lighting jobs. The aluminium body doubles as the heat path, which is why it is cast in house rather than bought in. Available reflector finishes are matte black / matte white, chosen per zone rather than per building.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The YY71005A
- 4 beam options on one body: 15°, 24°, 38° and 50°
- Fixed Ø45 mm ceiling cutout shared with other models in the range
- 8 W rating suited to accent lighting on standard commercial ceilings
- Reflector finishes in matte black / matte white
- Body colour in white / black
- Overall size 52 x H79 mm
What It Fixes On Site
- Display cabinets and niches with almost no ceiling depth
- Tall ceilings where a wide beam loses intensity before it lands
- Projects that need matching mini and full-size heads
- Reflector finishes that show up as bright rings in photographs
Published Figures For The YY71005A
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 8 W |
|---|---|
| Beam Angle | 15°, 24°, 38° and 50° |
| Dimensions (mm) | 52 x H79 |
| Ceiling Cutout (mm) | Ø45 |
| LED Chip Platform | 1304 |
| Reflector Finish | matte black / matte white |
| Body Colour | White / Black |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | YY71005A |
How It Is Built
- Light engine platform 1304
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24°, 38° and 50°
- Passive cooling, no fan
Where The YY71005A Is Used
Jewellery and watch cabinets
Wine cabinets and wardrobes
Hotel corridors
High-ceiling fashion floors
Who Buys This Model
- Retail and hospitality projects mixing cabinet and ceiling light
- Designers specifying very narrow accent beams
- OEM customers who need a full aperture ladder in one family
- Distributors replacing several suppliers with one series
Specifying and Installing It
- Cut the ceiling to Ø45 mm and check the void clears the 52 x H79 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 38° and 50° are available and the optic is fitted at the factory.
- Choose the reflector finish by room. matte black / matte white are offered on this model.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The YY71005A Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The S1 Series
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
YY71005A Questions
What ceiling cutout does the YY71005A need?
Ø45 mm. The body measures 52 x H79 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the YY71005A?
15°, 24°, 38° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What reflector finishes are available?
matte black / matte white. Darker finishes keep the aperture looking dark from normal viewing angles; brighter finishes return more light into the beam.
Can the YY71005A be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the YY71005A?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
