LED Wiring Harness Kit
Fused and relayed wiring harness kits sized to the lamps they feed, with connectors, switch and mounting hardware.
Product overview
What This Product Is
Most auxiliary lighting failures are wiring failures. A harness that is undersized, unfused, or fused at the wrong end turns a good lamp into a warranty claim and occasionally into a fire. Sunlitec supplies harnesses matched to the lamps rather than as a generic accessory, so the wire gauge, the relay and the fuse all reflect the actual load.
E-mark approvedCISPR 25 Class 4FMVSS 108ISO 9001 controlled production
Who it is for
Users
- Installers fitting lamps to vehicles
- Accessory brands bundling complete kits
- Fleet workshops standardising an install
- Distributors selling lamps that need a harness
Problems it solves
Pain Points
- Generic harnesses with wire too thin for the lamps they are sold with
- Fuses fitted at the lamp end, which leaves the whole run unprotected
- Relays that weld shut and leave the lamps on
- Connectors that corrode at the first washdown and cause flicker
Benefits
What You Get
- Wire gauge, relay and fuse sized to the actual lamp load
- Fuse at the battery end so the full run is protected
- Connectors chosen for the environment the harness will live in
- Ordered with the lamps, so the kit arrives complete
Why buy it from us
Manufacturing And Quality
- Harnesses specified together with Sunlitec lamps as one system
- Relay, fuse, switch and connectors supplied in the kit
- 100% inspection before shipment
- Available bundled with light bars, work lights and driving lights
Production runs under ISO 9001 controlled process in Nanhai, Foshan, Guangdong, on a line built in 2013.
Technical features
Specifications
Values confirmed from the current production build. Where a figure varies by model or has not been published, it is marked TBC rather than estimated — ask us and we will send the datasheet for the exact model.
| Product type | LED lighting wiring harness kit |
|---|---|
| Kit contents | Harness, relay, fuse, switch and connectors, TBC by model |
| Pre-shipment inspection | 100% of units |
| Wire gauge | TBC, matched to lamp load |
| Relay rating | TBC |
| Fuse rating | TBC |
| Input voltage range | TBC |
| Harness length | TBC |
| Connector type | TBC |
| Ingress protection | TBC |
Certification documentation is issued against the specific model on your quotation, not as a general company statement.
Product photography

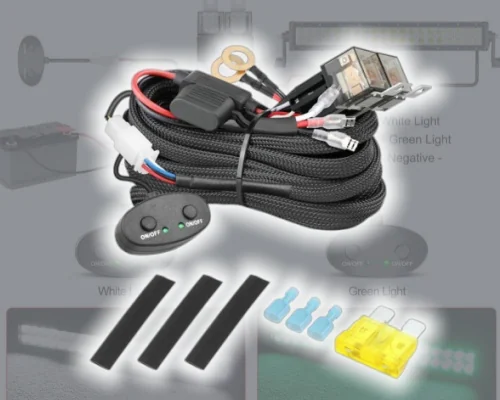

LED Wiring Harness Kit In Detail
Comparison
How It Compares
A generic harness from a parts shelf is cheaper and is the most common cause of auxiliary lighting problems. A harness matched to the lamp costs a little more and removes the guesswork about gauge, relay rating and fuse position. For multi circuit installations, pair it with a switch panel rather than running several separate harnesses.
Use guide
Installation And Service Notes
- Fuse at the battery end of the run, never at the lamp end
- Route away from exhaust heat, sharp edges and moving suspension components
- Use a grommet at every panel pass through
- Leave a service loop at the lamp so vibration loads the loop and not the terminal
- Dielectric grease on connectors that will see washdown
Application scenarios
Industries That Use This Product
Truck And Fleet
Auxiliary lighting for long haul trucks, trailers, utility bodies and municipal fleets where standardisation matters more than novelty.
Construction And Engineering Vehicles
Work lighting for excavators, loaders, cranes, engineering vehicles and site plant running long shifts in dust and vibration.
Complete Vehicle Lighting Kits
Lamp, harness and switch specified together so the installer gets a kit that works rather than three parts that might.
OEM Machinery Lighting Supply
Factory fit lighting for machinery builders who need the same lamp available for the life of the model.
Related reading
Guides That Cover This Product
Wiring Auxiliary Lights Correctly
Most auxiliary lighting failures are wiring failures. Four decisions prevent nearly all of them.
FAQ
LED Wiring Harness Kit FAQ
Which harness do I need for my lights?
Tell us the lamp models and how many you are fitting. The wire gauge, relay and fuse are chosen from the total load, which is why we prefer to quote the harness with the lamps.
Why does the fuse go at the battery end?
The fuse protects the wire, not the lamp. Fitted at the battery end it protects the whole run. Fitted at the lamp end, a chafe anywhere upstream is unprotected.
Can one harness run several lamps?
Yes, within its rating. Give us the total load and we will confirm whether one harness covers it or whether the installation needs a switch panel.
Do your light bars come with a harness?
Bars can be supplied bare or as a kit with the matching harness and switch. Say which you want at quotation.
Keep exploring
Related Products
Switch Panels And Wiring
Multi Gang Switch Panel
Multi circuit switch panels with app and remote control to run several lighting circuits from one dash unit.
View product →
LED Light Bars
Single Row LED Light Bar
Slim single row light bars for long range forward lighting with a low drag profile on the roof or bumper.
View product →
LED Driving Lights
LED Driving Light
E-mark approved auxiliary driving lamps for road legal long range forward lighting.
View product →Request Pricing On The LED Wiring Harness Kit
Send the quantity, the destination market and how you intend to mount it. We reply with pricing, lead time and the compliance documents for this model.
