Red Zone Safety Light Forklift

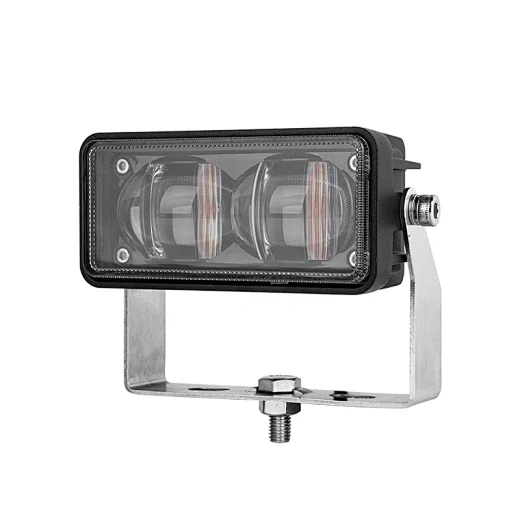

The SLL-5301 is a 5 inch red LED forklift safety light designed to prevent pedestrian and vehicle collisions in industrial environments. Six 5W LUNIMUS LEDs produce a clear, bright red linear beam on the ground that marks a defined safety zone around forklifts, reducing the risk of leg injuries and accidental contact during loading, movement or parking. The light is built for continuous operation in harsh conditions with an IP68 rating, overvoltage and overheat protection, and a die-cast aluminium housing with durable UV resistant coating.
- Red line beam creates a visible safety zone on the ground to prevent pedestrian and vehicle encroachment
- IP68 sealing and die-cast aluminium housing ensure long-term performance in dusty, wet and high-vibration environments
- Overvoltage and overheat protection prevent damage from electrical fluctuations common in industrial vehicle systems
- 9 to 110V DC operation allows use across a wide range of forklift electrical systems without voltage regulation
- 50,000 hour lifespan reduces maintenance frequency and replacement costs on high-utilisation machines
Where This Lamp Is Used
- Side and rear mounting on forklifts in warehouse aisles to mark safe clearance zones during movement
- Installation on industrial vehicles in loading bays where pedestrians and forklifts share the same space
- Use on electric forklifts with variable voltage systems that range from 9V to 110V
- Mounting on forklifts operating in outdoor yards exposed to rain, dust and temperature extremes
- Integration into safety systems on automated guided vehicles (AGVs) where visual warning is required
Who It Is For
- Fleet operators managing large numbers of forklifts who need consistent safety marking across all units
- Machinery OEMs fitting safety lights during production and requiring repeatable mounting patterns
- Warehouse and logistics managers upgrading from basic warning lights to visible, durable safety zones
- Industrial equipment dealers selling safety accessories for forklifts and material handling machines
- Distributors sourcing a single model with wide voltage compatibility to serve multiple forklift brands
Problems It Solves
- Invisible or weak warning signals on forklifts lead to pedestrian encroachment and leg injuries
- Cheap plastic lights degrade under UV exposure and fail in high-vibration environments
- Lights with narrow beam patterns or low lumen output are not visible at ground level in bright areas
- Voltage fluctuations in forklift electrical systems damage unprotected LED drivers and shorten lifespan
- Lack of IP68 sealing causes water ingress and internal fogging after cleaning or outdoor exposure
Technical Features
- Six 5W LUNIMUS LEDs with a total real power draw of 30W and 2400 effective lumens
- Line beam pattern projects a straight, visible red warning line on the ground
- Red colour temperature at 6000K ensures high visibility and distinctiveness from other lighting

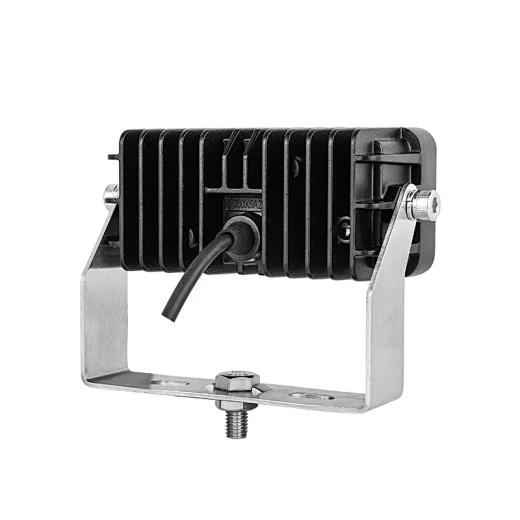

- Die-cast aluminium housing with semi-gloss black UV resistant polyester powder coating
- Anti-scratch polycarbonate lens with UV stabilisation for long-term clarity
- Overvoltage and overheat protection built into the driver circuit
- IP68 sealing with gasketed cable entry and sealed housing joints
- Bare wire lead of 40cm as standard with optional Deutsch connector available
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-5301 |
|---|---|
| Max Power | 30W |
| Real Power | 30W |
| LED | 6 pcs x 5W LUNIMUS |
| Theoretical Lumen | 2400 lm |
| Effective Lumen | 2400 lm |
| Beam Pattern | Line |
| Colour Temperature | 6000K |
| Operating Voltage | 9 to 110V DC |
| Housing Material | Die-cast aluminium, UV resistant polyester powder coating |
| Lens Material | Anti-scratch polycarbonate |
| Bracket Material | Steel, powder coated |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +85 degrees Celsius |
| Electrical Connection | Bare wire 40cm, Deutsch connector available |
Materials Used
- Die-cast aluminium housing with semi-gloss black UV resistant polyester powder coating
- Anti-scratch UV stabilised polycarbonate lens
- Steel mounting bracket with powder coating
- Silicone rubber gasket and sealed cable entry
- Internal overvoltage and overheat protection circuit
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating application with UV resistant finish
LED board assembly with LUNIMUS emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate forklift operation
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative cable length to match a specific forklift harness
- Private label logo on the housing and printed carton
- Mixed cartons combining this light with other SUNLITEC models for trial orders
- Adjustable bracket pattern to match a specific machine mounting layout
How It Compares With the Alternatives
| Round LED warning light | The line beam creates a defined zone on the ground while a round beam only marks a point |
|---|---|
| Lower lumen red light | 2400 effective lumens ensures visibility even in bright warehouse lighting |
| Plastic-bodied safety light | Die-cast aluminium housing resists impact and UV degradation over time |
How to Fit and Use It
- Leave a drip loop in the 40cm lead to prevent water from entering the gland
- Aim the line beam across the ground at the intended safety zone and adjust for ground slope
- Clean the polycarbonate lens with water and a soft cloth only to avoid damaging the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for industrial safety use
The lamp is IP68 rated and carries overvoltage and overheat protection, suitable for continuous operation in industrial environments.
Models Often Compared With This One
Get a Price on Red Zone Safety Light Forklift
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
