Forklift Blue Safety Lights
The SLL-5059-45A is a 5 inch round blue spot safety light for forklifts designed to improve visibility and safety in narrow aisles and high-traffic intersections. It emits a focused 7 degree blue spotlight with 3600 lumens to warn pedestrians and other operators when the forklift is reversing. The 360 degree swivel bracket allows precise aiming at the hazard zone, and the IP68 sealed die-cast aluminium housing resists dust, water, and impact in industrial environments.
- Blue spot beam at 7 degrees concentrates light on the immediate reversing path instead of spreading it across a wide area
- 360 degree swivel bracket allows adjustment to the exact angle needed for aisle or intersection coverage
- IP68 sealing prevents water and dust ingress during washdowns and in humid warehouse conditions
- 9 x 5W CREE LEDs deliver 3600 lumens with a 50,000 hour lifespan, reducing replacement frequency
- 9 to 32V DC operation supports both 12V and 24V forklift electrical systems without voltage conversion
Where This Lamp Is Used
- Reversing warning light on forklifts in narrow warehouse aisles with high pedestrian traffic
- Intersection safety on forklifts operating in busy loading docks with multiple vehicle movements
- Night operation in dimly lit industrial facilities where standard white lights are not visible enough
- Forklifts used in food processing or chemical plants where washdowns are frequent and sealing is critical
- Fleet operators replacing older flashing red or amber lights with a more visible blue spot beam
Who It Is For
- Forklift fleet operators needing a reliable reversing warning light for daily warehouse use
- Machinery OEMs integrating safety lights into forklifts during production
- Warehouse safety managers upgrading lighting to meet internal safety standards
- Distributors of industrial vehicle lighting seeking a model with E-Mark certification
- Equipment dealers offering safety upgrades on used or remanufactured forklifts
Problems It Solves
- Older flashing red or amber lights are not visible enough in bright warehouse lighting or at night
- Fixed beam lights cannot be aimed at the exact hazard zone, leaving blind spots during reversing
- Non-sealed lights fail after repeated washdowns due to water ingress and internal corrosion
- Lights with short lifespans require frequent replacement, increasing maintenance downtime
- Voltage instability in forklifts can damage lights without overvoltage protection
Technical Features

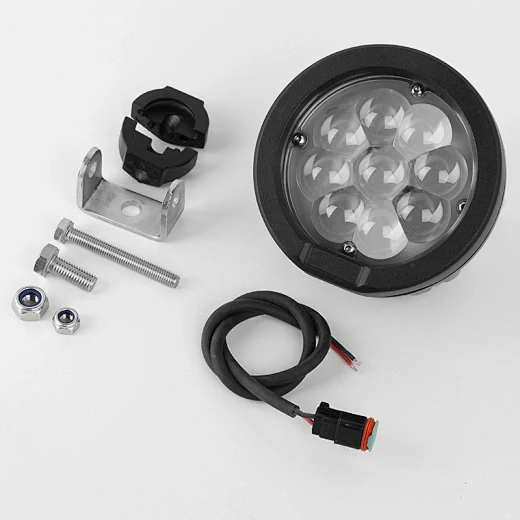

- Nine 5W CREE LEDs with a total output of 3600 lumens and a 7 degree spot beam pattern

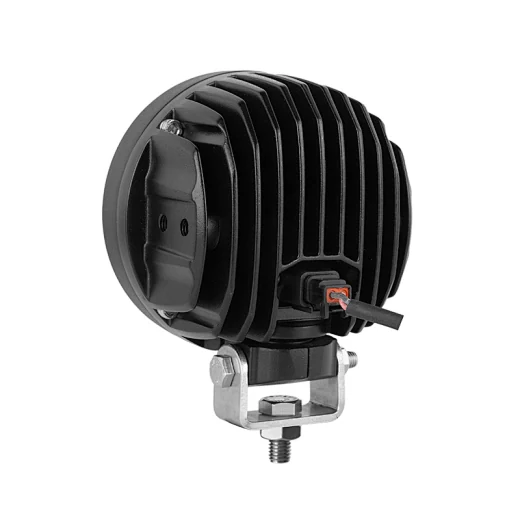

- 360 degree swivel mounting bracket for precise beam aiming at the hazard zone
- Die-cast aluminium housing with durable UV resistant polyester powder coating
- Anti-impact polycarbonate lens with scratch and UV resistance for long-term clarity
- Operating voltage range of 9 to 32V DC, compatible with 12V and 24V forklift systems
- Overvoltage and overheat protection circuits to prevent damage from electrical faults
- Sealed cable entry with gasket to maintain IP68 rating under vibration and pressure
- Operating temperature range from -40 to +85 degrees Celsius for cold storage and hot environments
- Blue light at 6000K colour temperature for high visibility in daylight and low-light conditions
- Rated for more than 50,000 hours of continuous operation
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-5059-45A |
|---|---|
| Diameter | 5 inches |
| Max Power | 45W |
| LED | 9 pcs x 5W CREE |
| Lumens | 3600 LM |
| Beam Pattern | 7° Spot |
| Beam Angle | 7 degrees |
| Swivel Mount | 360 degree |
| Operating Voltage | 9-32V DC |
| Operating Temperature | -40 to +85 degrees Celsius |
| Colour Temperature | 6000K |
| Waterproof Rating | IP68 |

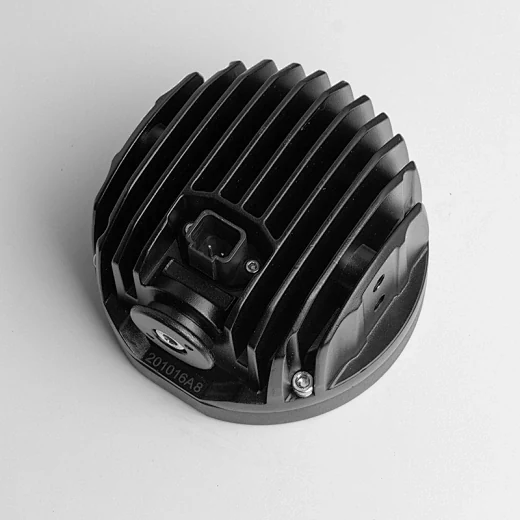

| Housing Material | Die-cast aluminium |
| Lens Material | Durable polycarbonate |
| Bracket Material | Die-cast aluminium with UV resistant polyester powder coating |

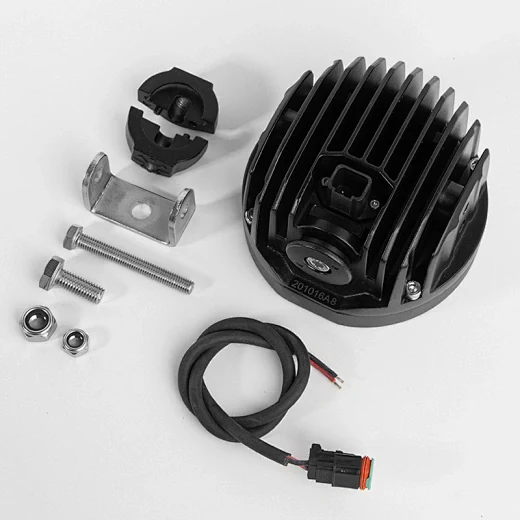

| Cable Entry | Sealed with gasket |
| Protection | Overvoltage, overheat protection |
| Certification | E-Mark |
Materials Used
- Die-cast aluminium housing and bracket
- Durable UV resistant polycarbonate lens
- Silicone rubber gasket for cable entry sealing
- UV resistant polyester powder coating on housing and bracket
- Internal PCB with CREE LED emitters and protection circuits
How This Lamp Is Built
Die casting of the aluminium housing and bracket
Powder coating with UV resistant polyester finish
LED board assembly with 9 x 5W CREE emitters
Lens bonding and gasket sealing at cable entry
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against IP68 rating using pressure and water immersion
- Vibration testing on a vibration test machine to simulate forklift operation
- Salt spray corrosion testing on coated surfaces and brackets
- High and low temperature alternating humidity testing across -40 to +85 degrees Celsius
Customisation Options
- Deutsch connector instead of standard bare wire lead
- Alternative beam pattern (e.g. flood or wide spot) on request
- Private label logo on the housing and printed carton
- Custom cable length to match specific forklift harness routing
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Standard white spot light | Blue light is more visible in daylight and less likely to be confused with general work lighting |
|---|---|
| Fixed beam safety light | 360 degree swivel allows exact aiming at the hazard zone, not just a fixed direction |
| Non-sealed industrial light | IP68 sealing prevents failure after washdowns or in humid environments |
| Single voltage light | 9-32V operation covers both 12V and 24V forklift fleets without changing part numbers |
How to Fit and Use It
- Mount the light on the rear of the forklift using the 360 degree swivel bracket and adjust the beam to cover the reversing path
- Leave a drip loop in the 40cm lead to prevent water from running into the gland
- Aim the 7 degree spot beam at the immediate reversing zone, not the far distance, to maximize warning visibility
- Clean the polycarbonate lens with water and a soft cloth only; avoid solvents that degrade the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V forklifts
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for industrial use
The lamp carries E-Mark certification and is IP68 rated, suitable for use in industrial environments with washdowns and high vibration.
Get a Price on Forklift Blue Safety Lights
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
