LED Warning Light
The SLL-6020A is a 4 inch LED forklift safety warning light designed for industrial environments where visibility and durability are critical. Two 10W CREE LEDs produce a 10° spot beam in both red and blue, projecting 1000 lumens to warn pedestrians and vehicles of approaching forklifts in warehouses, loading bays, and tight work zones. The die-cast aluminium housing with IP68 sealing and UV-resistant polyester coating ensures long life in dusty, wet, or high-vibration conditions. The light operates on 9–48V DC, making it compatible with both 12V and 24V forklift systems without requiring voltage regulators.
- 10° spot beam focuses light over distance to warn pedestrians and vehicles ahead, not just in the immediate area
- Dual red and blue beams increase visibility and recognition in busy industrial environments
- IP68 sealing prevents water and dust ingress during washdowns or outdoor use
- 9–48V DC operation allows one part number to fit 12V and 24V forklifts, reducing inventory
- 50,000 hour lifespan means replacement is needed less than once per year under normal use
Where This Lamp Is Used
- Front and rear warning lighting on forklifts operating in high-traffic warehouse aisles
- Side-mounted warning lights on forklifts used in narrow loading bays or tight storage areas
- Fleet-wide safety upgrades for warehouse operators replacing older incandescent warning lights
- Installation on electric forklifts where electrical noise from motors could interfere with unshielded lights
- Use on forklifts operating in outdoor yards or docks where exposure to rain, dust, and temperature extremes is common
Who It Is For
- Fleet operators upgrading forklift safety systems with reliable, long-life warning lights
- Warehouse managers needing consistent warning signals across multiple forklift models
- Machinery OEMs integrating safety lighting into new forklift builds with a single part number
- Distributors selling forklift safety accessories who need a compact, high-visibility light
- Equipment dealers fitting warning lights on used forklifts before resale
Problems It Solves
- Flickering or failing incandescent warning lights that burn out before 1000 hours
- Lights with poor beam focus that scatter light in all directions instead of warning ahead
- Non-IP68 sealed lights that fail after a single washdown or exposure to coolant spray
- Single-color warning lights that blend into the environment and are ignored by workers
- Voltage-sensitive lights that fail on 24V systems or require additional voltage regulators
- Lights with plastic housings that crack under impact or degrade under UV exposure
Technical Features
- Two 10W CREE LEDs with a combined output of 1000 lumens in a 10° spot beam
- Dual red and blue spot beams for enhanced visibility and hazard recognition

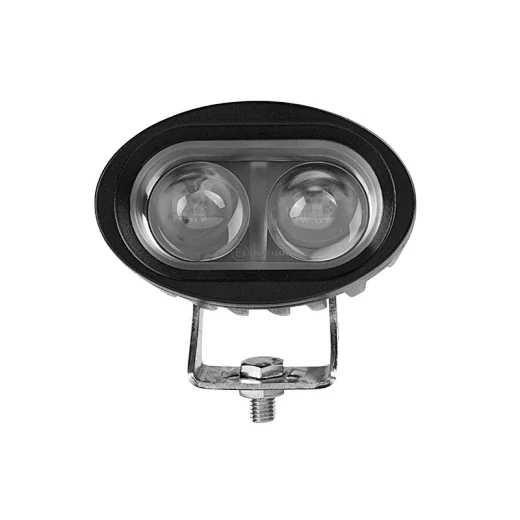

- Die-cast aluminium housing with durable UV polyester powder coating
- Anti-UV, impact-resistant polycarbonate lens with scratch protection
- IP68 sealing against water, dust, and vibration in harsh industrial environments
- Overvoltage and overheat protection circuits to prevent electrical damage
- 9–48V DC operating range for compatibility with 12V and 24V forklifts
- Operating temperature range from -40 to +85 degrees Celsius
- 10° spot beam pattern focused on distance rather than wide area
- Bare wire leads of 40cm standard, with connector options available on request
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-6020A |
|---|---|
| Power | 2 x 10W CREE LEDs |
| Lumens | 1000 LM |
| Beam Pattern | 10° Spot |
| Colour | Red and Blue |
| Operating Voltage | 9–48V DC |
| Operating Temperature | -40 to +85 degrees Celsius |
| Waterproof Rating | IP68 |
| Housing Material | Die-cast aluminium |
| Lens Material | UV-resistant polycarbonate |
| Coating | Durable UV polyester powder coating |
| Protection | Overvoltage and overheat protection |
| Mounting | Standard bracket with 4 mounting holes |
| Cable Length | 40cm bare wire, connector available on request |
Materials Used
- Die-cast aluminium housing with UV-resistant polyester powder coating
- Anti-UV, impact-resistant polycarbonate lens
- Silicone gasket and sealed cable entry for IP68 protection
- Copper wire leads with PVC insulation
- Stainless steel mounting screws and brackets
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating with UV-resistant polyester finish
LED board assembly with two 10W CREE emitters
Lens bonding and gasket sealing for IP68 integrity
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing tested to IP68 standard under pressure and immersion
- Vibration testing on a vibration test machine to simulate forklift operation
- Salt spray corrosion testing on housing and mounting hardware
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Deutsch connector instead of standard 40cm bare wire lead
- Single-color version (red only or blue only) instead of dual
- Private label logo on the housing and printed carton
- Alternative cable length to match specific forklift harnesses
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Single-color LED warning light | Dual red and blue beams increase recognition in high-traffic zones |
|---|---|
| Flood beam warning light | Spot beam projects light further ahead for early warning, flood spreads light too wide |
| Smaller 3 inch warning light | Same beam focus but larger 4 inch body allows better heat dissipation and higher lumen output |
How to Fit and Use It
- Mount on a flat surface using the standard bracket and verify the 4 mounting holes align with your forklift's existing holes
- Route the 40cm bare wire lead away from moving parts and keep the cable entry pointing downward
- Use a 3A fuse on the positive feed to protect against overcurrent
- Aim the spot beam at the ground ahead of the forklift to warn pedestrians and vehicles in the path
- Clean the PC lens with water and a soft cloth only; avoid solvents that degrade the anti-UV coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V forklifts
Yes. The operating range is 9 to 48V DC, so the same part number can be fitted to 12V and 24V forklifts.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for industrial use
The lamp is IP68 sealed, CE and RoHS compliant, and tested for operation from -40 to +85 degrees Celsius, suitable for harsh industrial environments.
