7 Inch CREE 10W High Power Driving Light
The SLL-7090 is a 7 inch high power driving light designed for off-road vehicles and heavy machinery that operate in extreme conditions. Nine 10W CREE LEDs deliver 7200 lumens in a focused 10 degree spot beam, providing long-range visibility through dust, rain and fog. The die-cast aluminium housing with UV resistant polyester powder coating and IP68 sealing ensures durability in harsh environments. The light operates on 9–32V DC, making it compatible with both 12V and 24V systems, and includes overvoltage and overheat protection for reliable performance under fluctuating electrical loads.
- 10 degree spot beam delivers 7200 lumens for long-range visibility in off-road and night operations
- IP68 sealing and a die-cast aluminium housing resist water, dust and vibration on construction and mining machines
- 9–32V DC operation supports both 12V and 24V vehicle systems without changing part numbers
- Overvoltage and overheat protection prevent damage from electrical surges or high ambient temperatures
- 50,000 hour lifespan reduces maintenance frequency on fleet vehicles and remote machinery
Where This Lamp Is Used
- Front lighting on off-road trucks and 4x4 vehicles operating in remote mining or forestry zones
- Primary beam lighting on excavators and cranes working at night in construction sites with poor ambient light
- Auxiliary lighting on utility vehicles and service trucks used on unlit rural roads
- Fleet vehicles operating in cold climates where electrical systems are stressed by low temperatures
- Heavy machinery used in coastal or agricultural areas where salt and moisture accelerate corrosion
Who It Is For
- Distributors of 12V and 24V vehicle lighting who need one part number to serve both systems
- Machinery OEMs fitting driving lights on production line vehicles and requiring consistent mounting and electrical specs
- Fleet operators replacing halogen or lower-output LED driving lights that fail under vibration or heat
- 4x4 accessory brands building a private label driving light range with high lumen output and durability
- Equipment dealers supplying lighting upgrades for older models of trucks, tractors and excavators
Problems It Solves
- Halogen driving lights burn out quickly under vibration and draw excessive current from the alternator
- Cheap LED lights with inadequate sealing fail after exposure to rain, dust or pressure washing
- Narrow voltage range limits use across different vehicle systems and increases SKU count
- Lights with no overvoltage protection are damaged by alternator spikes during engine start
- Painted surfaces degrade under UV exposure or salt spray, leading to premature corrosion
- Low lumen output forces operators to rely on multiple lights, increasing complexity and cost
Technical Features

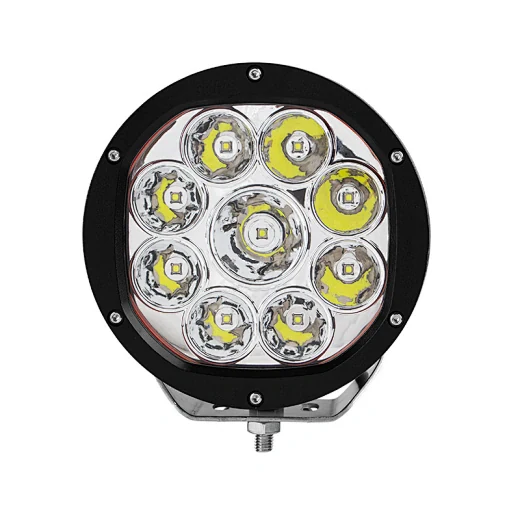

- Nine 10W CREE LEDs with a total output of 7200 lumens in a 10 degree spot beam
- 9–32V DC operating range covers 12V and 24V systems with no part number change
- Die-cast aluminium housing with durable UV resistant polyester powder coating
- Polycarbonate lens with anti-reflective coating and impact resistance
- IP68 sealing protects against water immersion, dust ingress and high-pressure washdown
- Overvoltage and overheat protection circuits prevent damage from electrical faults
- Operating temperature range of -40 to +85 degrees Celsius for use in extreme climates
- 10 degree spot beam pattern for long-distance visibility without glare
- Bare wire lead of 40cm standard with optional Deutsch connector available
- 50,000 hour rated lifespan under continuous operation
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-7090 |
|---|---|
| LED | 9 pcs x 10W CREE |
| Beam Pattern | Spot |
| Beam Angle | 10 degrees |
| Operating Voltage | 9–32V DC |
| Operating Temperature | -40 to +85 degrees Celsius |
| Colour Temperature | 6000K |
| Waterproof Rating | IP68 |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Bracket Material | Die-cast aluminium |
| Cable Length | 40cm bare wire standard, Deutsch connector available |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing and bracket
- UV resistant polyester powder coating
- Anti-reflective polycarbonate lens
- Silicone rubber gasket and sealed cable entry
- Bare copper wire lead with PVC insulation
How This Lamp Is Built
Die casting of the aluminium housing and bracket
Powder coating with UV resistant polyester finish
LED board assembly with CREE emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate machine mounted service
- Salt spray corrosion testing on housing coating and bracket
- High and low temperature alternating humidity testing across the -40 to +85 degrees Celsius range
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative beam pattern (spot or flood) on request
- Private label logo on the housing and printed carton
- Alternative cable length for integration with specific machine harnesses
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Halogen driving light of similar output | Draws less than 1A at 12V against over 5A for halogen and survives vibration that destroys filament-based lights |
|---|---|

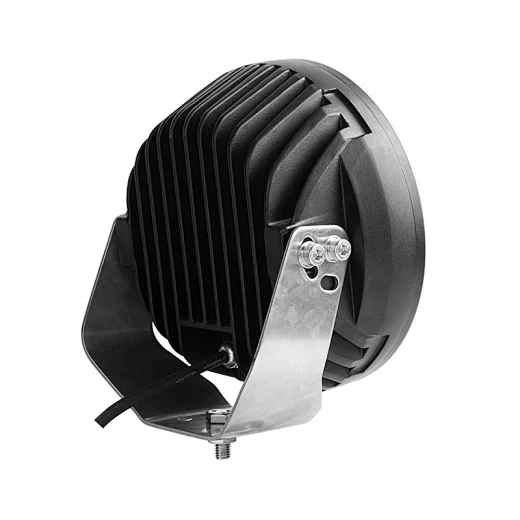

| Round 7 inch driving light | The square body allows a larger LED array behind the same mounting footprint but requires a flat surface for the top bracket |
| Flood beam version of the same lamp | Spot beam reaches further ahead for road visibility while flood covers a wider area but at lower intensity |
| Smaller 5 inch driving light | Higher output and longer beam reach but requires more space on the vehicle front end |
How to Fit and Use It
- Leave a drip loop in the 40cm lead to prevent water from entering the gland
- Aim the 10 degree spot beam at the road ahead and use a separate flood lamp for side coverage if needed
- Clean the polycarbonate lens with water and a soft cloth only, as solvents may damage the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 9 to 32V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant and carries IP68 sealing, which supports use on vehicles that operate on public roads.
Get a Price on 7 Inch CREE 10W High Power Driving Light
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
