9 Inch LED Driving Light SLL-F033
The SLL-F033 is a 9 inch LED driving light designed for off-road vehicles and heavy machinery that operate in low visibility conditions. It delivers a raw output of 13500 lumens using Osram CROP-SH LEDs, projecting a beam that reaches 1 lux at 1171 meters. It operates on 12V systems and draws 11.6A, making it suitable for use on trucks, excavators and 4x4s where consistent long-range illumination is required.
- 13500 raw lumens with a 1 lux reading at 1171 meters for long-range visibility in off-road and night operations
- 12V operation with 11.6A draw ensures compatibility with standard vehicle electrical systems
- Osram CROP-SH LEDs provide high lumen output and stable performance under continuous duty
- 9 inch diameter body fits standard mounting patterns on trucks, 4x4s and engineering vehicles
- No hot spot or uneven beam distribution due to even LED array layout across the lens
Where This Lamp Is Used
- Front lighting on off-road trucks and 4x4s operating in remote areas without street lighting
- Primary illumination on excavators and cranes during night construction or mining shifts
- Auxiliary lighting on fleet vehicles used in logging, agriculture or utility services
- Mounting on the front of a train or bus for low-light visibility in tunnels or rural routes
- Use on vessels and boats navigating in open water at night with minimal ambient light
Who It Is For
- Fleet operators needing consistent long-range lighting for night driving on unlit roads
- Machinery OEMs integrating a standard 9 inch driving light into new vehicle builds
- Distributors of off-road lighting looking for a high-output model with proven reliability
- 4x4 accessory brands developing a private label driving light range with strong performance
- Equipment dealers fitting lighting upgrades on older machines without electrical upgrades
Problems It Solves
- Halogen driving lights fail quickly under vibration and produce insufficient beam distance
- Cheap LED lights with poor heat dissipation degrade rapidly or fail after a few hundred hours
- Inadequate sealing allows water and dust to enter, causing internal fogging and electrical faults
- Low lumen output from small LED arrays leaves the road ahead in shadow beyond 500 meters
- Non-standard mounting patterns make retrofitting difficult and require custom brackets
Technical Features

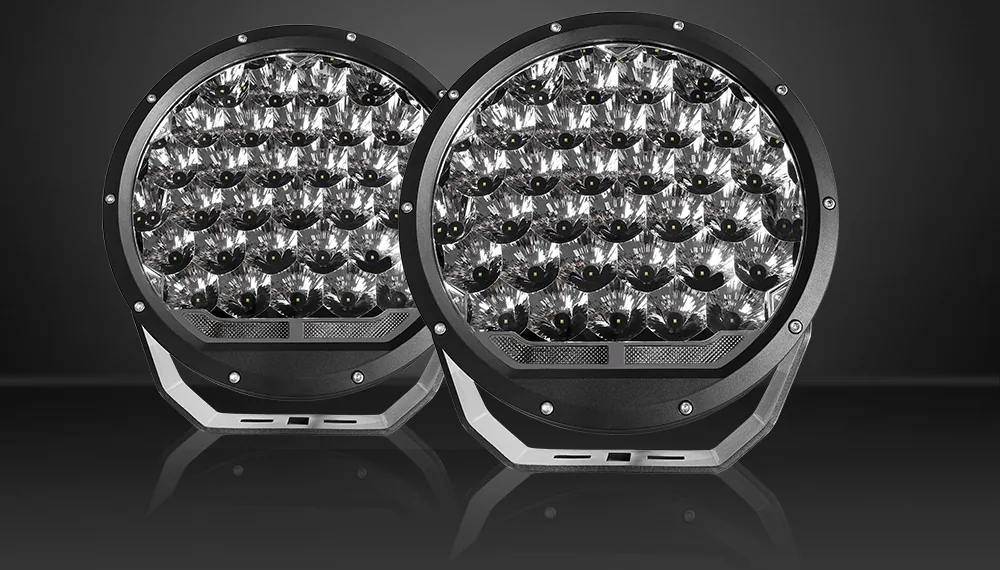

- Nine Osram CROP-SH LEDs with a total raw lumen output of 13500 lm
- Beam distance of 1 lux at 1171 meters, suitable for long-range visibility
- Die-cast aluminium housing with semi-gloss black powder coating for heat dissipation and corrosion resistance
- Anti-scratch UV resistant polycarbonate lens over the LED array
- 12V DC input with 11.6A current draw, compatible with standard 12V vehicle systems
- 9 inch diameter body with a flat mounting surface and pre-drilled holes for bolt-on installation
- Bare wire lead of 40cm as standard, with connector options available on request
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-F033 |
|---|---|
| Size | 9 inch |
| Max Power | 140W |
| Real Power | 140W |
| LED | 9 pcs x Osram CROP-SH |
| Raw Lumen | 13500 lm |
| 1 Lux Reading | 1171 meters |
| Beam Pattern | Spot |
| Operating Voltage | 12V DC |
| Amp Draw | 11.6A |
| Lens Material | Anti-scratch UV resistant PC |
| Certification | CE, RoHS |
Materials Used
- Anti-scratch UV resistant polycarbonate lens
- Silicone rubber gasket and sealed cable entry gland
- Semi-gloss black powder coating on housing and bracket
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black
LED board assembly with Osram CROP-SH emitters
Lens bonding and gasket sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Vibration testing on a vibration test machine to reproduce machine mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
Customisation Options
- Deutsch DT connector instead of the standard 40cm bare wire lead
- Alternative beam pattern (flood or combo) on request
- Private label logo on the housing and printed carton
- Custom cable length to match a specific vehicle harness
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| 12V halogen driving light | Draws 11.6A at 12V against roughly 20A for halogen and lasts over 50000 hours without filament failure |
|---|---|
| Smaller 6 inch LED driving light | Provides 1171 meter 1 lux reach compared to under 500 meters on smaller units, with better beam control |
| Round 9 inch driving light | The square mounting face allows for a flat surface fit on vehicle bumpers and guards where round bodies may not align |
| LED light with plastic housing | Die-cast aluminium resists deformation under heat and impact, unlike plastic housings that crack or warp |
How to Fit and Use It

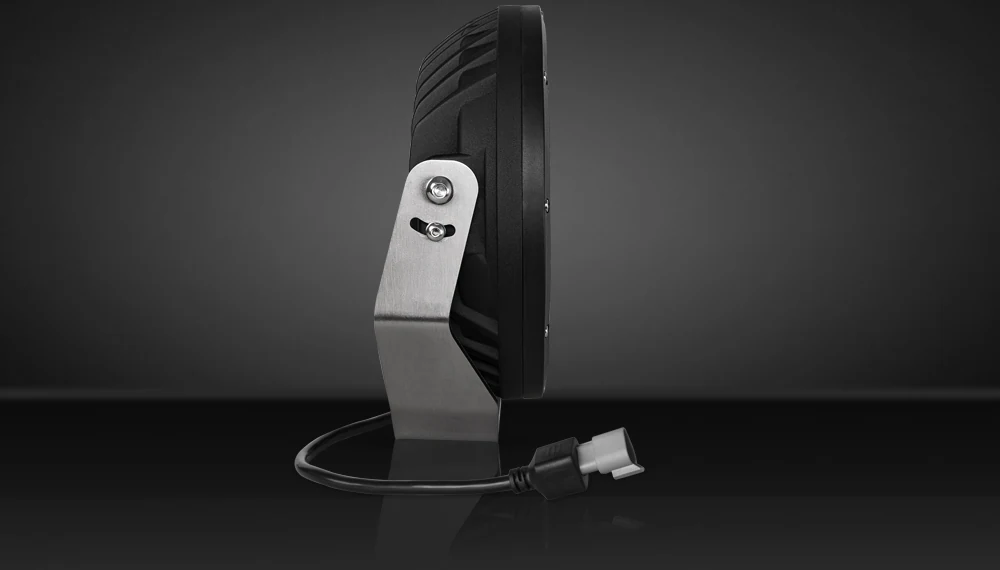

- Mount on a flat surface using the bottom bracket and verify the 9 inch diameter matches the vehicle mounting pattern
- Wire through a fused feed sized for 11.6A at 12V and keep the cable entry pointing downward to prevent water ingress
- Leave a drip loop in the 40cm lead so water runs away from the gland rather than into it
- Aim the spot beam at the road ahead and adjust for optimal visibility without blinding oncoming traffic
- Clean the PC lens with water and a soft cloth only, since solvents will degrade the anti-scratch coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on 12V systems
Yes. The lamp is designed for 12V DC operation and draws 11.6A, making it compatible with standard 12V vehicle electrical systems.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Get a Price on 9 Inch LED Driving Light SLL-F033
Send the quantity, the destination port and any branding requirement. You will get pricing, packing data and the production lead time.
