7 Inch 60W Black/White Remote Control LED Search Light SLL-CH001-60W

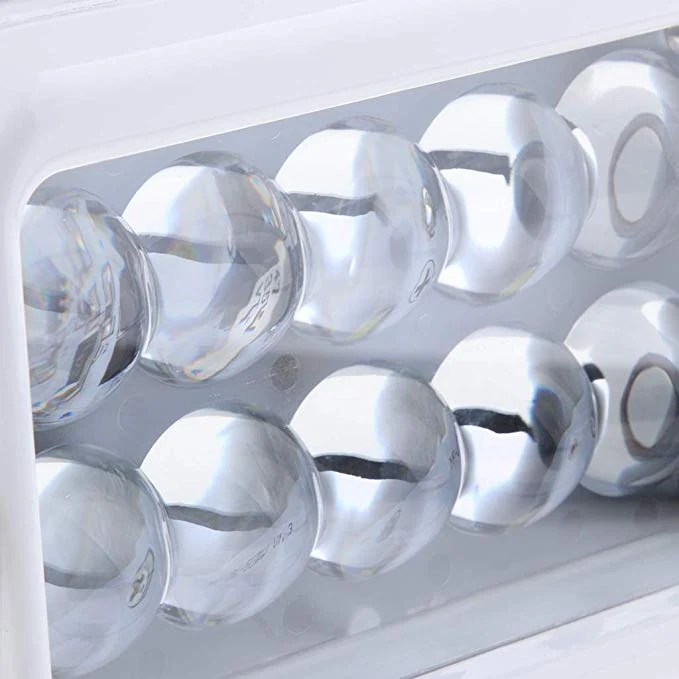

The SLL-CH001-60W is a 7 inch remote control LED search light designed for machines that need to operate in total darkness, such as off-road vehicles, cranes, and mining machinery. Twelve 5W high intensity LEDs deliver 4800 lumens in a 30 degree spot beam, projecting a focused beam up to 1000 meters to illuminate distant terrain. The die-cast aluminium housing is sealed to IP65 and rated for more than 30000 hours, so it performs reliably in harsh conditions without frequent replacement. The black and white body colour allows for visual distinction in low light environments.
- 30 degree spot beam projects 4800 lumens up to 1000 meters, ideal for long-range visibility on off-road and mining machines
- IP65 sealing protects against dust and water jets, suitable for use in rain, mud, and high-pressure wash environments
- 12 x 5W high intensity LEDs provide consistent output with a 6000K colour temperature for clear, daylight-like illumination
- Remote control allows operation from a distance, reducing the need for operators to approach the light during use
- Die-cast aluminium housing resists deformation under impact and dissipates heat effectively, extending LED life
Where This Lamp Is Used
- Long-range visibility on excavators and cranes operating at night in construction zones
- Remote operation of search lights on mining support vehicles where the operator stays inside the cab
- Emergency lighting on service trucks and utility vehicles responding to incidents in dark or remote areas
- Nighttime inspection and maintenance on large machinery where a fixed light cannot reach all angles
- Auxiliary lighting on off-road vehicles used in forestry, agriculture, or oil and gas exploration
Who It Is For
- Fleet operators managing 12V and 24V vehicles that require long-range lighting for night operations
- Machinery OEMs integrating search lights into new models and needing a reliable, repeatable design
- Distributors of vehicle lighting seeking a remote control model with a clear distinction between black and white bodies
- 4x4 accessory brands building a private label search light line with remote control functionality
- Equipment dealers fitting search lights on machines used in mining, forestry, and remote infrastructure projects
Problems It Solves
- Fixed search lights require the operator to move to the light to turn it on, increasing risk in hazardous environments
- Low-lumen lights fail to illuminate beyond 200 meters, limiting visibility on open terrain or large construction sites
- Non-remote lights cannot be operated from inside the cab, requiring the operator to exit the vehicle in cold or dangerous conditions
- Plastic housings crack under impact or degrade under UV exposure, leading to early failure on outdoor machines
- Lights with no remote control must be wired directly to a switch, increasing harness complexity and potential failure points
Technical Features
- Twelve 5W high intensity LEDs with a total power draw of 60W and 4800 lumens output
- 30 degree spot beam pattern with a focus distance of up to 1000 meters
- Die-cast aluminium housing with semi-gloss black and white body finish for visual contrast
- Anti-UV PC lens resistant to cracking and yellowing under prolonged sunlight exposure
- Remote control operation with a range sufficient for use from inside the cab or at ground level
- Operating voltage range of 12V and 24V DC, compatible with most vehicle electrical systems
- IP65 sealing protects against dust and water jets from any direction, suitable for outdoor and wash-down environments
- 30000 hours rated lifetime, reducing the need for frequent replacements on high-use machines
- 7 inch diameter housing with a compact footprint that fits standard mounting brackets
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-CH001-60W |
|---|---|
| Max Power | 60W |
| LED | 12 pcs x 5W high intensity |
| Theoretical Lumen | 4800 lm |
| Beam Pattern | Spot |
| Beam Angle | 30 degrees |
| Colour Temperature | 6000K |
| Operating Voltage | 12/24V DC |
| Housing Material | Die-cast aluminium |
| Lens Material | PC |
| Waterproof Rating | IP65 |
| Lifetime | More than 30000 hours |
| Dimensions | 7 inch diameter |
| Body Colour | Black, White |
| Remote Control | Yes, included |
| Mounting | Standard bracket compatible, 7 inch diameter |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing for structural strength and heat dissipation
- Anti-UV polycarbonate (PC) lens resistant to impact and sunlight degradation
- Silicone gasket for sealing between housing and lens
- Semi-gloss black and white powder coating on the housing
- Internal wiring with heat-resistant insulation and strain relief
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Powder coating in semi-gloss black or white finish
LED board assembly with 12 x 5W high intensity emitters
Lens bonding with silicone gasket and sealing
Quality Control on This Model
- Photometric output verified in an integrating sphere to confirm 4800 lumens
- Sealing verified against IP65 standard using water jet and dust exposure tests
- Vibration testing on a vibration test machine to simulate machine-mounted operation
- Salt spray corrosion testing on housing coating and metal components
Customisation Options
- Custom cable length to match a specific machine harness
- Alternative body colour (black or white) for branding or visibility purposes
- Private label logo on the housing and printed carton
- Replacement of remote control with a wired switch for fleet standardisation
- Mixed cartons combining this search light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Fixed switch search light | Remote control allows operation from inside the cab, reducing exposure to weather and hazards |
|---|---|
| Plastic-bodied search light | Die-cast aluminium resists impact and heat, preventing warping and cracking under prolonged use |
| Wider beam search light | 30 degree spot beam reaches further than a flood beam but requires a stable mount for long-distance aiming |
| Non-remote 60W LED search light | Remote control eliminates the need for additional wiring and switch installation in the cab |
How to Fit and Use It
- Mount on a flat surface using a standard bracket compatible with 7 inch diameter lights
- Connect to a 12V or 24V DC source with a fused feed sized for 5A (60W at 12V)
- Keep the remote control antenna clear of metal obstructions and within 30 meters of the light
- Aim the 30 degree beam at the target area and adjust the mount for consistent coverage
- Clean the PC lens with water and a soft cloth only; avoid solvents that may damage the anti-UV coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating voltage is 12/24V DC, so the same part number can be used on both systems.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for road going machines
The lamp is CE and RoHS compliant, and the IP65 sealing rating ensures durability in outdoor conditions.
