11 Inch 60W Remote Control LED Search Light SLL-CH078-60W
The SLL-CH078-60W is an 11 inch remote control LED search light designed for vehicles and heavy machinery that need long-range illumination in dark or hazardous environments. Twelve 5W high intensity LEDs deliver 4800 effective lumens in a 30 degree spot beam, providing a focused beam that cuts through fog, dust, and darkness. The die-cast aluminium housing and polycarbonate lens are built to withstand vibration and outdoor exposure, with an IP65 sealing rating that prevents water and dust ingress during operation. The light operates on 12V or 24V DC systems and has a rated lifetime of more than 30000 hours, reducing the need for frequent replacements on machines that run overnight or in remote locations.
- 30 degree spot beam delivers 4800 effective lumens over long distances, ideal for scanning terrain or identifying obstacles
- IP65 sealing prevents water and dust from entering the housing during operation in wet or dusty conditions
- 12V and 24V DC operation allows one part number to serve both light and heavy duty vehicle fleets
- Die-cast aluminium housing with polycarbonate lens resists impact and maintains optical clarity over time
- 30000 hour lifetime reduces downtime and replacement frequency on machines used in continuous or remote operations
Where This Lamp Is Used
- Nighttime navigation and obstacle detection on off-road vehicles and mining machinery
- Search and rescue operations on emergency response vehicles and utility trucks
- Loading and unloading operations on cranes and excavators in low-light conditions
- Security and perimeter scanning on vessels, boats, and stationary equipment
- Remote operation on forklifts and engineering vehicles where the operator stays inside the cab
Who It Is For
- Fleet operators managing 12V and 24V vehicle fleets who need a single search light model across both systems
- Machinery OEMs integrating search lights into production line builds with consistent mounting and electrical interfaces
- Distributors of off-road and industrial lighting seeking a remote control option for trial and resale
- 4x4 accessory brands developing private label search light systems with remote control functionality
- Equipment dealers fitting search lights on machines used in mining, construction, and agriculture
Problems It Solves
- Halogen search lights fail quickly under vibration and require frequent replacement on heavy machinery
- Non-remote search lights force the operator to exit the cab to aim the light, increasing risk and slowing operations
- Lights with poor sealing allow water and dust into the housing, leading to short circuits or lens fogging
- Inconsistent beam patterns from low-lumen or poorly focused LEDs leave critical areas unlit during night work
- Lack of dual voltage compatibility forces distributors to stock two separate SKUs for 12V and 24V systems
Technical Features
- Twelve 5W high intensity LEDs with a total power draw of 60W and 4800 effective lumens
- 30 degree spot beam pattern with a focused beam for long-distance visibility
- Die-cast aluminium housing with polycarbonate lens for impact resistance and optical clarity
- Semi-gloss black or white body color with a durable surface finish

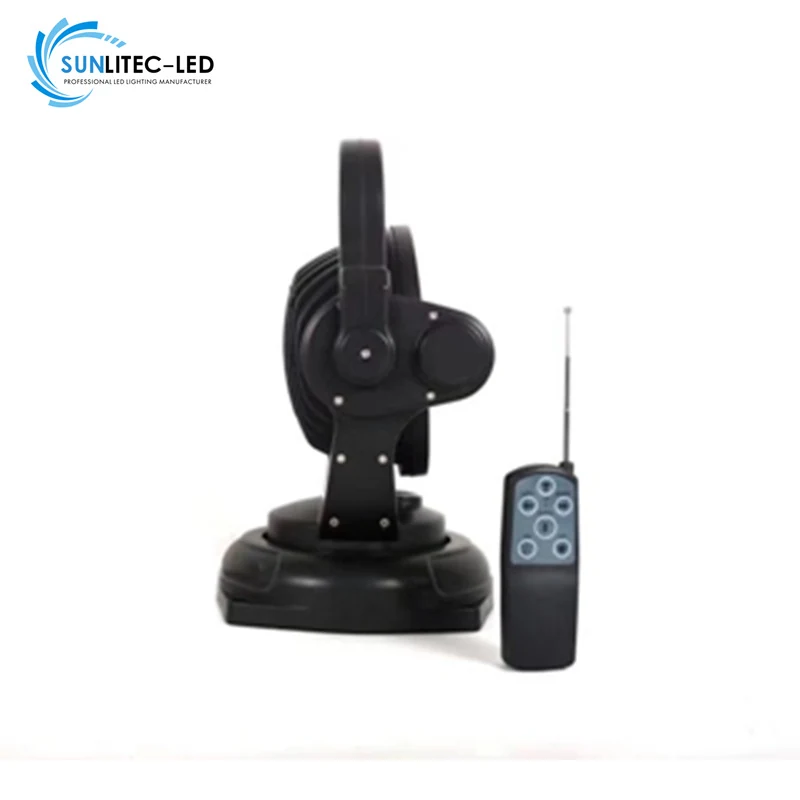

- Remote control operation with a base unit using plastic and magnets for secure mounting
- 12V and 24V DC input range allows use across light and heavy duty vehicle systems
- IP65 sealing rating protects against water jets and dust ingress during outdoor use
- Rated lifetime of more than 30000 hours, measured in years of continuous operation
- Mounting base with plastic and magnet components for easy installation on metal surfaces
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-CH078 60W |
|---|---|
| Max Power | 60W |
| Real Power | 60W |
| LED | 12 pcs x 5W high intensity |
| Theoretical Lumen | 4800 lm |
| Effective Lumen | 4800 lm |
| Beam Pattern | Spot |
| Beam Angle | 30 degrees |
| Colour Temperature | 6000K |
| Operating Voltage | 12/24V DC |
| Housing Material | Die-cast aluminium |
| Lens Material | Polycarbonate |
| Bracket Material | Plastic and magnets |
| Mounting | Base with plastic and magnets |
| Waterproof Rating | IP65 |
| Electrical Connection | Standard wiring, remote control included |
| Lifetime | More than 30000 hours |
| Size | 11 inch base |
| Certification | CE, RoHS |
Materials Used
- Die-cast aluminium housing for heat dissipation and structural strength
- Polycarbonate lens with impact and UV resistance
- Plastic base with magnet mounting for secure attachment to metal surfaces
- Silicone gasket for sealing the housing and lens interface
- Semi-gloss black or white powder coating on the housing
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Polishing and surface treatment of the housing before coating
Powder coating in black or white finish
LED board assembly with 12 high intensity 5W LEDs
Quality Control on This Model
- Photometric output verified in an integrating sphere for lumen accuracy
- Sealing verified against the IP65 rating using water spray and dust exposure tests
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Remote control function tested for signal range and reliability under simulated field conditions
Customisation Options
- Change of body color from black to white or other standard finishes
- Alternative remote control frequency or signal range for specific fleet requirements
- Private label logo on the housing and carton
- Custom cable length or connector type to match a specific machine harness
- Mixed cartons combining this search light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Halogen search light of similar output | Draws 5A at 12V against roughly triple that for halogen and survives vibration that destroys a filament |
|---|---|
| LED search light with flood beam | The 30 degree spot beam reaches further ahead than flood, but leaves the near area darker |
| Search light without remote control | Remote operation allows the operator to aim the light from inside the cab, reducing risk and improving efficiency |
How to Fit and Use It
- Mount the base with plastic and magnets on a clean, flat metal surface to ensure stable attachment
- Use the remote control to aim the light from inside the cab, avoiding the need to exit the vehicle
- Check the 30 degree beam pattern is aligned with the intended target area before finalizing the mount
- Clean the polycarbonate lens with water and a soft cloth only, as solvents may damage the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take around 3 to 7 working days. Bulk lead time depends on the model and the quantity ordered.
Do you have a minimum order quantity
There is an MOQ for standard orders, but smaller orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in around 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 12/24V DC, so the same part number can be fitted to both systems.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including a private label logo on the housing and printed cartons.
Is it approved for use on public roads
The lamp is CE and RoHS compliant, which meets basic electrical and environmental standards for market entry in Europe and other regions.
