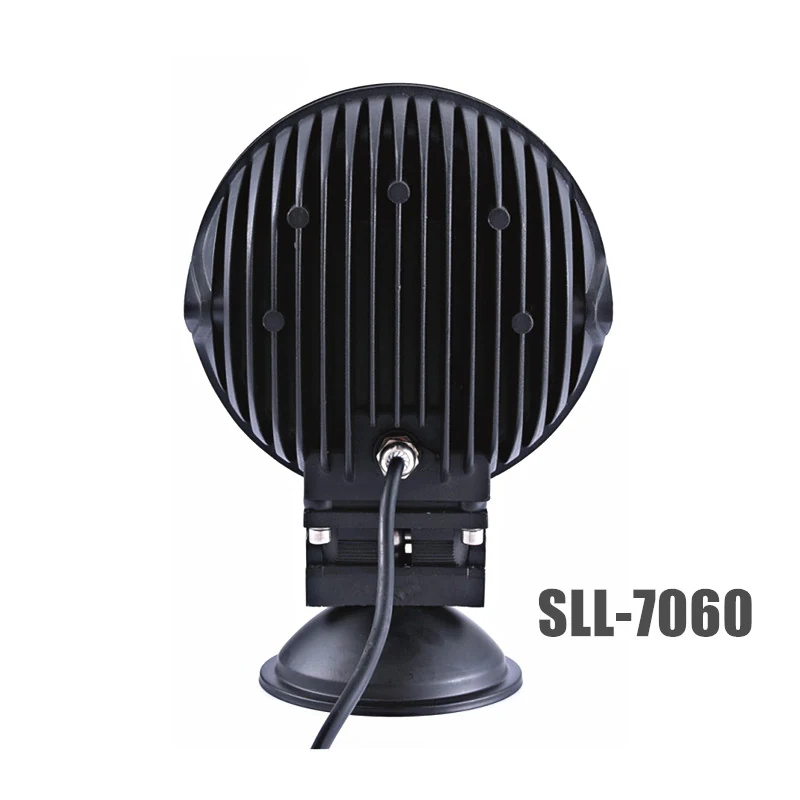

7 Inch 60W 4D CREE Hyper Spot Round LED Driving Work Light for Car Truck SLL-7060-60W
The SLL-7060-60W is a 7 inch round hyper spot LED driving work light designed for off-road and heavy machinery that operates in darkness, dust, and vibration. Twelve 5W CREE LEDs deliver 5064 effective lumens in a focused spot beam, illuminating the path ahead on trucks, excavators, and 4x4s without relying on halogen or low-efficiency bulbs. The die-cast aluminium housing is sealed to IP68 and carries CE and RoHS compliance, which helps ensure the light meets electrical and environmental standards for use on vehicles that operate on public roads.
- 12 x 5W CREE LEDs deliver 5064 effective lumens in a hyper spot beam for long-range visibility
- IP68 sealing prevents water and dust ingress during pressure washing and high-dust operations
- 10-30V DC operation allows one part number to be used across 12V and 24V vehicle systems
- Die-cast aluminium housing with black or chrome ring resists deformation under high heat and impact
- Operating range of -40 to +50 degrees Celsius ensures reliable performance in extreme climates
Where This Lamp Is Used
- Front driving light on off-road trucks and 4x4s operating at night on unpaved roads
- Auxiliary lighting on excavators and dozers where a narrow beam cuts through fog and dust
- Front-mounted light on fire trucks and emergency vehicles during low-visibility operations
- Lighting on mining trucks and engineering vehicles where vibration and dust degrade standard lamps
- Trailers and utility vehicles needing a durable, long-range light that survives daily exposure
Who It Is For
- Distributors sourcing durable LED driving lights for resale to 4x4 and fleet customers
- Machinery OEMs fitting lighting on production line vehicles that must pass road inspection
- Fleet operators replacing halogen driving lights that fail under vibration and heat
- 4x4 accessory brands building a private label range with consistent beam performance
- Equipment dealers needing one part number to cover both 12V and 24V vehicle fleets
Problems It Solves
- Halogen driving lights burn out quickly under vibration and draw excessive current from the vehicle’s electrical system
- Cheap sealed lights fail after a few wash cycles due to poor cable gland sealing and lens fogging
- Non-certified lights may be rejected during road inspection on vehicles used on public roads
- Narrow beam lights on machines with wide chassis leave the sides and edges of the vehicle in shadow
- Painted mild steel brackets rust within weeks on machines washed daily with water and chemicals
Technical Features
- Twelve 5W CREE LEDs with a total theoretical output of 5064 lumens
- Hyper spot beam pattern focused for long-distance visibility with a narrow beam angle

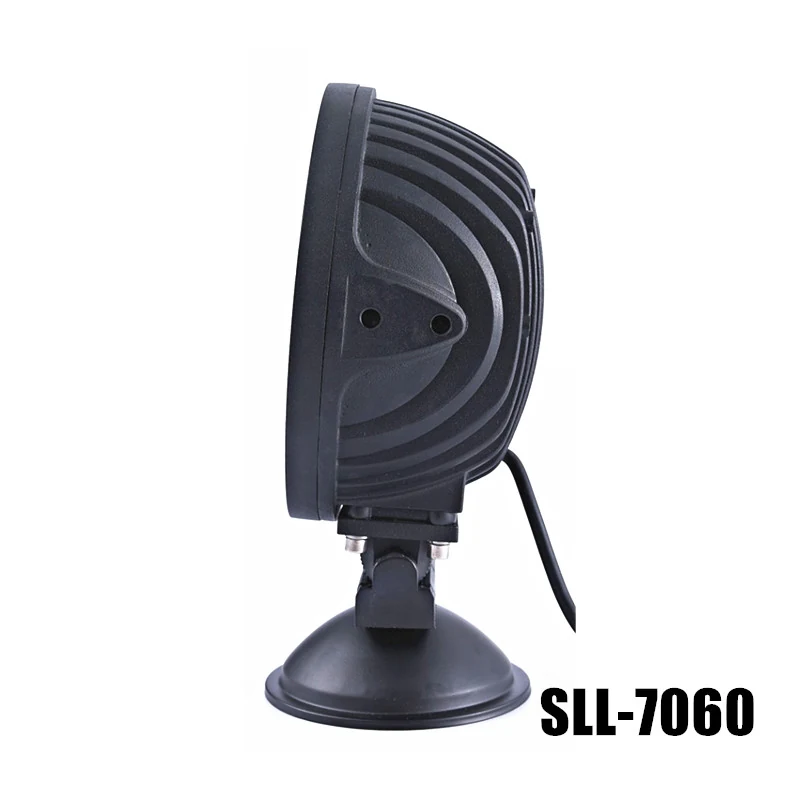

- Die-cast aluminium housing with semi-gloss black or chrome finish for heat dissipation and durability
- PMMA lens with anti-reflective coating to reduce glare and maintain light output
- Sealed cable entry gland with silicone gasket to maintain IP68 rating under pressure
- Operating voltage range of 10 to 30V DC compatible with 12V and 24V vehicle systems
- Rated for -40 to +50 degrees Celsius operating environment
- Bare wire lead of 40cm as standard with option for custom length on request
- EMC protected internal wiring to prevent electrical interference with vehicle systems
Technical Specification
Values taken from the original factory specification for this model. Fields the factory sheet does not state are left out rather than estimated.
| Part Number | SLL-7060 60W |
|---|---|
| Max Power | 60W |
| LED | 12 pcs x 5W CREE |
| Theoretical Lumen | 5064 lm |
| Effective Lumen | 5064 lm |
| Beam Pattern | Hyper Spot |
| Colour Temperature | 6000K |
| Operating Voltage | 10-30V DC |
| Housing Material | Die-cast aluminium |
| Lens Material | PMMA |
| Waterproof Rating | IP68 |
| Operating Temperature | -40 to +50 degrees Celsius |
| Electrical Connection | Bare wire 40cm, custom length available |
| Packing | 10 sets per carton, carton 40 x 30 x 30 cm |
| Certification | CE, RoHS, ECE R10, IP68 |
Materials Used
- Die-cast aluminium housing for heat dissipation and structural strength
- PMMA lens with anti-reflective coating for high light transmission
- Silicone rubber gasket and sealed cable gland for IP68 integrity
- Semi-gloss black or chrome finish on the housing and ring
How This Lamp Is Built
Die casting of the aluminium housing and heat sink
Surface treatment with semi-gloss black or chrome finish
LED board assembly with 12 x 5W CREE emitters
Lens bonding and gasket sealing with silicone
Quality Control on This Model
- Photometric output verified in an integrating sphere
- Sealing verified against the IP68 rating before shipment
- Vibration testing on a vibration test machine to simulate machine-mounted service
- Salt spray corrosion testing on housing coating and stainless bracket
- High and low temperature alternating humidity testing across the -40 to +50 degrees Celsius range
Customisation Options
- Deutsch DT connector or alternative cable length on request
- Spot beam or flood beam option depending on application
- Private label logo on the housing and printed carton
- Custom sticker design and packing box for brand-specific orders
- Mixed cartons combining this light with other SUNLITEC models for trial orders
How It Compares With the Alternatives
| Round 7 inch work lamp with flood beam | The hyper spot beam reaches further ahead but requires a clear line of sight, while flood covers a wider area but at shorter range |
|---|---|
| Larger 8 inch driving light | Higher output but may not fit on narrow vehicle grilles or mounting brackets designed for 7 inch units |
| LED light with plastic housing | Die-cast aluminium resists deformation under heat and impact, while plastic housings warp or crack over time |
How to Fit and Use It
- Leave a drip loop in the 40cm lead to prevent water from entering the gland
- Aim the hyper spot beam at the road ahead and use a separate flood lamp for near-side visibility
- Clean the PMMA lens with water and a soft cloth only—avoid solvents that may degrade the anti-reflective coating
Questions About This Model
Can I order a sample before placing a bulk order
Yes. Sample orders are welcome and mixed samples of different models in one shipment are accepted.
What is the lead time
Sample orders normally take 3 to 7 working days. Bulk lead time depends on the model and quantity ordered, typically 3 to 15 days if production is required.
Do you have a minimum order quantity
There is an MOQ for standard orders, but small orders are also accepted, which suits distributors testing a new model.
How is the lamp shipped
Samples usually go by DHL, UPS, FedEx or TNT in about 4 to 7 days. Bulk orders ship by air in about 7 to 15 days or by sea in about 15 to 30 days.
Will this lamp work on both 12V and 24V machines
Yes. The operating range is 10 to 30V DC, so the same part number can be fitted to 12V and 24V vehicles.
Can you supply the lamp with our own brand
Yes. OEM and ODM service is available, including private label logo on the housing and printed cartons.
What is the warranty
We offer a 1-year warranty. If there is a failure within the first year, contact us with photos or video, and we will replace the unit after confirmation.
