41.7 Inch 106cm 9HP Diesel Snow Sweeper SJ0902GD-5

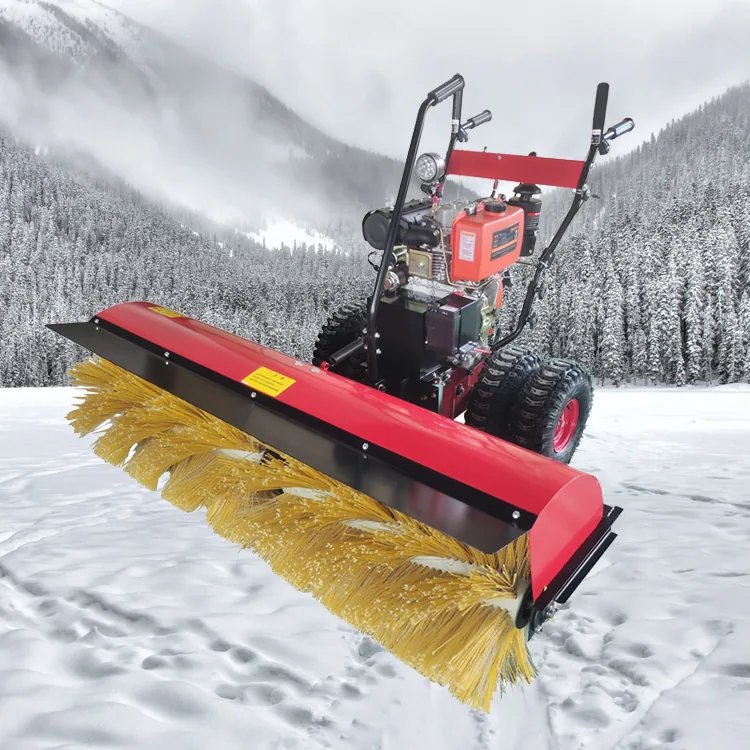

The SJ0902GD-5 is a diesel walk behind snow sweeper for commercial and industrial sites that have to clear large paved areas quickly and already run diesel plant. A 418cc Beiante 188F/E OHV four stroke engine rated 7.5kW at 3600rpm turns a 50cm brush across a 106cm working width, sweeping up to 5000 square metres per hour on 1.6 litres of fuel an hour. Brush sweeping lifts snow off block paving and coated surfaces without the scraping damage a steel blade causes, and the head angles 25 degrees to either side so the operator windrows snow away from finished ground. It is built to CE standard for Europe and loads 58 units to a 40HQ container.
- Diesel engine means one fuel across a site that already runs diesel plant, so there is no separate petrol store to manage
- 1.6L per hour consumption keeps running cost predictable across a full winter shift
- 106cm brush width clears a standard footpath in a single pass
- Up to 5000 square metres per hour makes a large commercial or industrial site schedulable
- Head angles 25 degrees left or right so snow is swept away from the lane already finished
- Manual and electric start fitted, which matters for a diesel on a cold morning
- 58 units per 40HQ container, more than the steering equipped version, which lowers freight per unit
Product Gallery
Specifications
| Model No | SJ0902GD-5 |
|---|---|
| Engine Brand | Diesel Beiante 188F/E, OHV, 4 stroke |
| Power | 7.5kW/3600rpm |
| Displacement | 418cc |
| Start Mode | Manual start and electric start |
| Fuel Capacity | 5.5L |
| Oil Capacity | 1.65L |
| Fuel Consumption | 1.6L/H |
| Area Sweep (Max) | 5000 m²/H |
| Transmission Mode | Friction wheel |
| Working Width | 106cm / 41.7″ |
| Brush Diameter | 50cm / 19.7″ |
| Forward / Reverse Speeds | 5 forward / 2 reverse |
| Wheels | 15″ four snow wheels |
| Universal Wheel | 6″ wheels |
| Working Head Adjustable Angle | Left 25 degrees, right 25 degrees |
| Easy Fast Assembly | Yes |
| Packing | Wooden box, 1PC/carton |
| Certification for Europe | CE Standard |
| Gross / Net Weight | 130 / 120kg |
| Carton Size | 125*115*92cm |
| Warranty | One year |
| Loading 20′ / 40′ / 40HQ | 24 / 50 / 58pcs |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Industrial and logistics sites clearing yards, access roads and loading areas
- Municipal crews sweeping footpaths, pedestrian areas and bus stops
- Facility teams clearing block paved forecourts and entrances
- Depots and ports where petrol storage is restricted but diesel is already on site
- Contractors running fixed seasonal routes across several commercial properties
Who It Is For
- Importers and distributors stocking diesel winter maintenance equipment
- Industrial, port and logistics site maintenance teams
- Municipal and highway maintenance departments
- Property and facility management contractors
- Equipment hire and rental companies
Problems It Solves
- Running petrol machines on a diesel site means a second fuel store, second stock and a second set of handling rules
- A plough blade skips over a thin fresh fall and leaves a compacted film that turns to ice
- Steel blades scratch block paving, resin surfaces and painted markings the site owner then has to repair
- Hand shovelling a large industrial yard cannot be finished before the first shift arrives
- Diesel engines are hard to start by recoil in low temperatures, which is why electric start is fitted
- Uncertified machines leave the EU importer carrying the CE compliance burden
Technical Features
- Diesel Beiante 188F/E OHV four stroke engine rated 7.5kW at 3600rpm from 418cc
- 106cm / 41.7 inch working width with a 50cm / 19.7 inch brush diameter
- Area sweep of up to 5000 square metres per hour
- Friction wheel transmission with five forward and two reverse speeds
- Working head adjustable 25 degrees left and 25 degrees right
- 15 inch four snow wheel set with 6 inch universal wheels
- Manual and electric start fitted as standard
- 5.5L fuel tank with 1.6L per hour consumption
- Easy fast assembly out of the box
Certifications
- CE Standard for Europe
Quality Control
- Incoming inspection on diesel engines, drive components and steel before they reach the line
- In process checks during welding and assembly of the brush head
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Manual and packaging artwork in the destination market language
- Packing format adjusted to suit the sales channel
How It Compares
Against 420cc gasoline snow sweeper of the same width
Same 106cm width and 50cm brush. The diesel uses 1.6L per hour against 1.8L and takes the same fuel as the rest of a diesel site fleet.
Against Model SJ0902GD-5-1 with steering system
The steering version adds a steering system and weighs 145kg gross against 130kg here, loading 50 rather than 58 units per 40HQ.
Against Snow thrower
A thrower is built for deep compacted snow. This sweeper is faster on thin fresh falls and removes the residual film a thrower leaves behind.
Use Guide
- Check engine oil and diesel level before the first start of the season and use winter grade fuel in low temperatures
- Allow the diesel engine to warm before applying full brush load in freezing conditions
- Set the head angle to the side you want the snow swept before starting the pass
- Keep the brush clear of gully covers and raised kerbs to limit wear on the bristles
- Store the machine dry at the end of the season with the brush off the ground
9HP Diesel snow sweeper Buyer Questions
What is the minimum order quantity?
One 20ft container, which holds 24 units of this model. A single sample order is also accepted if you want to test the machine first.
How long is the lead time?
25 to 35 days for a full 40HQ container. A sample order ships in 1 to 7 days.
Is the sweeper CE certified for the European market?
Yes. This model is produced to CE standard for Europe.
How many units fit in a container?
24 units in a 20ft, 50 units in a 40ft and 58 units in a 40HQ, packed one machine per wooden box at 125*115*92cm.
Which engine is fitted?
A Beiante 188F/E diesel, OHV four stroke, 418cc, rated 7.5kW at 3600rpm with manual and electric start.
What warranty and spare parts support do you provide?
One year warranty. Parts needed because of a quality problem are supplied free of charge, and parts outside the warranty period are sold at cost price.
Can the machine be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
