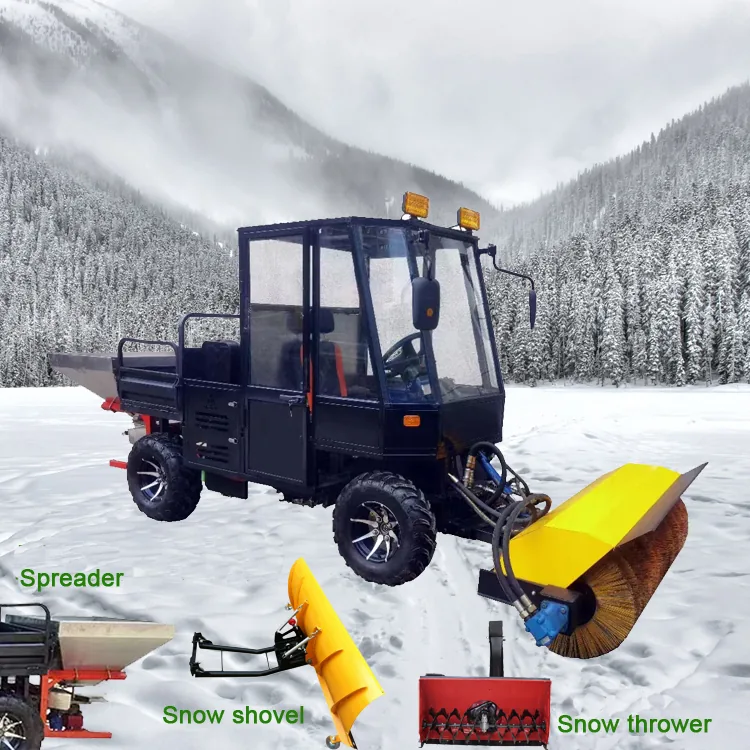

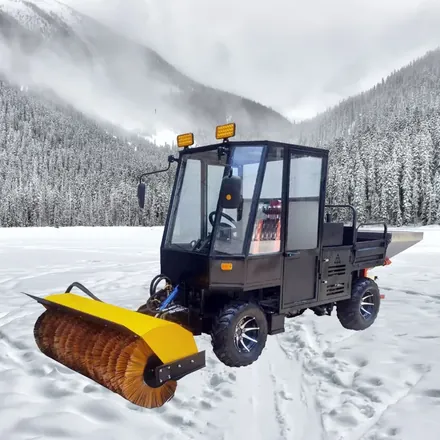

Multi Function Snow Plough SJ-D1818-1 4WD 150cm Working Width
The SJ-D1818-1 is a 4WD ride on snow removal machine for municipal crews, airports, industrial sites and contractors who have to clear long routes rather than a single driveway, and who cannot justify a separate machine for each snow condition. A 312cc 13kW water cooled KB178 gasoline engine drives all four wheels through a differential shaft drive, while a separate G460FD gasoline engine runs the hydraulics, so the 160ml/r hydraulic motor turns the 50cm rolling brush at over 280rpm without robbing the drive. The working head clears 150cm in a pass, angles 20 degrees left or right under hydraulic control, and can be swapped between sweeper, thrower, shovel and salt spreader functions. The machine carries CE marking for Europe and loads 6 units to a 40HQ container.
- One machine covers sweeping, throwing, shovelling and salt spreading, so a depot does not buy and store four separate units
- 150cm working width at road speeds up to 22km/h clears a long municipal route in a single shift
- 4WD differential shaft drive keeps traction on packed snow and ice where a two wheel drive machine spins
- A separate hydraulic engine drives the brush, so brush speed holds above 280rpm while the machine is still moving
- Hydraulic angle and lift control lets the operator change discharge direction without leaving the seat
- Under 3m turning radius and 20cm ground clearance for kerbed footpaths and tight car park corners
- CE marked for Europe, which removes the compliance step for EU importers
Product Gallery
Specifications
| Model No | SJ-D1818-1 |
|---|---|
| Vehicle Engine Brand | Gasoline KB178, single cylinder, water cooled, 4 stroke |
| Power | 312cc / 13Kw |
| Start Mode | Electrical start |
| Fuel Capacity | 20L |
| Hydraulic Oil Capacity | 20L |
| Fuel Consumption | <=340g/KW.H |
| Hydraulic Engine | Gasoline G460FD, single cylinder, water cooled, 4 stroke |
| Ground Clearance | 20cm (min) |
| Forward / Reverse Speeds | 2 / 1 reverse |
| Speed | 0-22KM/H |
| Radius of Turning Circle | <3m |
| Drive Mode | 4WD, differential shaft drive |
| Rolling Brush Motor | Hydraulic motor 160ml/r |
| Working Width | 150cm / 59″ |
| Brush Diameter | 50cm / 19.7″ |
| Brush Rotate Speed | >280rpm |
| Left and Right Angle Control | Hydraumatic |
| Brush Off Ground Control | Hydraumatic |
| Working Head Adjustable Angle | Left 20 degrees, right 20 degrees |
| Wheels | 12″ Aluminum wheel |
| Easy Fast Assembly | Yes |
| Packing | Iron rack + wooden box, 1PC/Carton |
| Certification for Europe | CE Standard |
| Gross / Net Weight | 1000 / 950kg |
| Carton Size | 350X165X195cm |
| Warranty | One year |
| Loading 20′ / 40′ / 40HQ | 2 / 5 / 6pcs |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Municipal crews clearing town centre footpaths, squares and bus interchanges through a snow event
- Airport and logistics sites keeping aprons, service roads and loading yards open
- Industrial parks and campuses running fixed routes between buildings
- Contractors covering several commercial properties in one morning with one machine
- Sites that need snow swept, thrown and then salted without swapping machines
Who It Is For
- Importers and distributors stocking ride on snow removal equipment
- Municipal and highway maintenance departments
- Airport, port and logistics facility teams
- Property and facility management contractors
- Equipment hire and rental companies
Problems It Solves
- Buying separate sweeper, thrower, shovel and spreader machines ties up capital and depot space for a few weeks of use per year
- Two wheel drive machines lose traction on packed ice exactly where the route matters most
- A single engine driving both travel and brush loses brush speed under load and leaves snow behind
- Walk behind machines cannot cover a multi kilometre municipal route in the hours before the morning peak
- Mechanical angle adjustment forces the operator off the machine every time the discharge direction has to change
- Uncertified machines leave the EU importer carrying the CE compliance burden
Technical Features
- 4WD differential shaft drive with 2 forward and 1 reverse speed and travel up to 22km/h
- KB178 gasoline vehicle engine, single cylinder, water cooled, 4 stroke, 312cc and 13kW
- Separate G460FD gasoline hydraulic engine, single cylinder, water cooled, 4 stroke
- 160ml/r hydraulic rolling brush motor with 50cm brush turning at over 280rpm
- 150cm working width with hydraulic left and right angle control and hydraulic brush lift
- Working head adjustable 20 degrees left and 20 degrees right
- 20cm minimum ground clearance and a turning circle radius under 3m
- 12 inch aluminium wheels
- Fuel consumption of 340g/kW.h or less from a 20L tank
- Interchangeable functions for sweeping, snow throwing, shovelling and salt spreading
Certifications
- CE Standard for Europe
Quality Control
- Incoming inspection on engines, hydraulic components and steel before they reach the line
- In process checks during welding and assembly of the frame and working head
- Hydraulic function check on angle control and brush lift before packing
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Working head configuration for sweeping, throwing, shovelling or salt spreading
- Manual and packaging artwork in the destination market language
How It Compares
Against Walk behind snow sweeper
A walk behind unit ties one operator to walking pace. This machine travels at up to 22km/h with a 150cm head, which is what a multi kilometre municipal route needs.
Against Single function ride on sweeper
A sweeper only sweeps. This machine changes between sweeper, thrower, shovel and spreader, so one chassis covers the whole snow event including salting.
Against Truck mounted snow plough
A truck plough cannot enter footpaths, squares and car park bays. At under 3m turning radius and 150cm width this machine works where the truck cannot reach.
Against Two wheel drive ride on machine
4WD differential shaft drive keeps both axles pulling on packed ice, where a two wheel drive machine stalls on the same gradient.
Use Guide
- Check fuel and hydraulic oil levels, both tanks are 20L, before the first start of the shift
- Set the working head angle away from traffic, parked vehicles and building glazing before lowering the brush
- Lower the brush hydraulically onto the surface only once the machine is moving, so the bristles do not dig in on the spot
- Keep travel speed down on packed ice and use the full 4WD traction rather than more brush pressure
- Raise the working head off the ground for transport and for storage so the brush does not take a set
- Drain or stabilise fuel at the end of the season and check hydraulic hoses and fittings before storage
Multi-function snow plough Buyer Questions
What is the minimum order quantity?
One 20ft container, which holds 2 units of this model. Single sample orders are also accepted if you want to test the machine before committing to a container.
How long is the lead time?
25 to 35 days for a full 40HQ container. A sample order ships in 1 to 7 days.
Is the machine CE certified for the European market?
Yes. This model is produced to CE standard for Europe.
How many units fit in a container?
2 units in a 20ft, 5 units in a 40ft and 6 units in a 40HQ, packed one machine per carton on an iron rack in a wooden box at 350X165X195cm.
What functions does the machine cover?
Snow sweeping, snow throwing, snow shovelling and salt spreading, using the working head on the same chassis.
What warranty and spare parts support do you provide?
One year warranty. Parts needed because of a quality problem are supplied free of charge, and parts outside the warranty period are sold at cost price.
Can the machine be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
