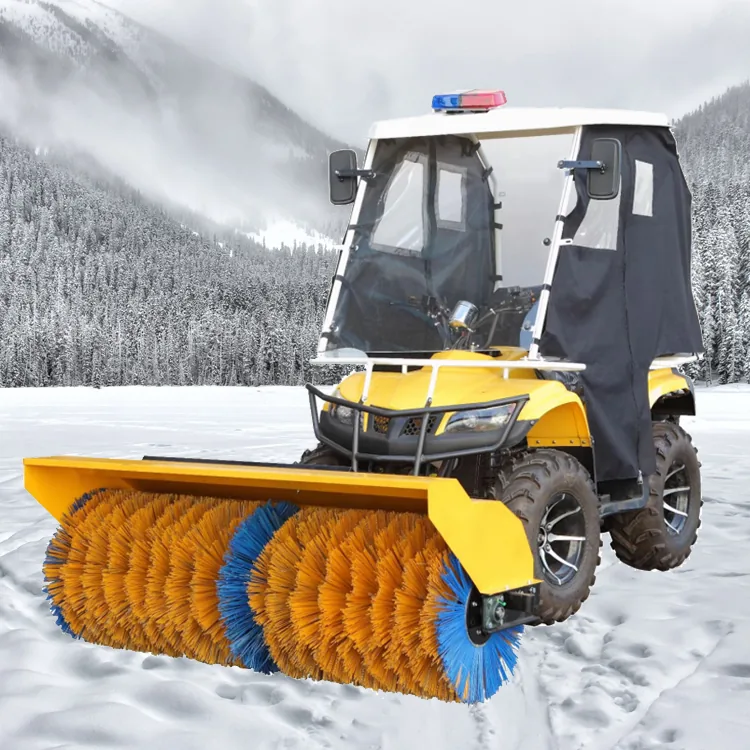

ATV Snowplow SJ-D0150 250cc Two Seat 150cm Working Width
The SJ-D0150 is a two seat ATV based snow clearing machine for homeowners with large properties, small contractors and businesses that need driveways, footpaths and yards cleared without hiring a truck plough. A 250cc water cooled Zongshen four stroke engine drives the vehicle at 3 to 10km/h through 4 forward speeds, while a separate 420cc Loncin OHV engine at 9.0kW and 3600rpm drives the 150cm working head through an electronic clutch, so the 55cm brush holds up to 400rpm while the machine is moving. The working head angles 25 degrees left or right and the maximum area sweep rate is 3600 to 26000 square metres per hour. It carries CE marking for Europe and loads 15 units to a 40HQ container, which is what makes it a workable line for a seasonal importer.
- Separate 420cc working engine means brush speed does not drop when the vehicle engine is under load
- 150cm clearing width in one pass, so a two car driveway is done in a single run
- Two seats and a 200kg load capacity, so the machine doubles as site transport outside the snow season
- Electronic clutch engagement on the working head avoids the shock loading a mechanical engagement puts through the drive
- Working head angles 25 degrees either way to throw snow clear of ground already done
- Front and rear disc brakes for control on a sloped driveway with a loaded machine
- CE marked for Europe, which removes the compliance step for EU importers
Product Gallery
Specifications
| Model No | SJ-D0150 |
|---|---|
| Engine Brand | Zongshen, water-cooled single cylinder, four-stroke |
| Displacements | 250cc |
| Forward / Reverse Speeds | 4 forward, 1 neutral and 1 reverse |
| Start Mode | Electrical start |
| Fuel Capacity | 10L |
| Vehicle Speed | 3-10km/h |
| Brake System | Front and rear brake disc |
| Load Capacity | 200kg |
| Seats | 2 People |
| Area Sweep (Max) | 3600-26000 m²/H |
| Rear Engine Brand | Loncin 420cc, OHV, 4 stroke |
| Power | 9.0kW / 3600rpm |
| Transmission Mode | Electronic clutch |
| Working Width | 150cm / 59″ |
| Brush Diameter | 55cm / 21.7″ |
| Brush Rotate Speed | 400rpm (max) |
| Working Head Adjustable Angle | Left 25 degrees, right 25 degrees |
| Easy Fast Assembly | Yes |
| Packing | Iron rack + wooden box, 1PC/2Carton |
| Certification for Europe | CE Standard |
| Gross / Net Weight | 600 / 500kg |
| Carton Size | 300*150*110cm |
| Warranty | One year |
| Loading 20′ / 40′ / 40HQ | 6 / 13 / 15pcs |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Homeowners with long driveways and hard standing that drift shut overnight
- Small businesses clearing their own forecourt, car park and delivery entrance before opening
- Contractors running a short route of residential and small commercial properties
- Rural properties and smallholdings where the access track has to stay open
- Rental fleets offering a cost effective alternative to a truck mounted plough
Who It Is For
- Importers and distributors stocking seasonal snow equipment for retail and trade
- Small snow clearing and grounds maintenance contractors
- Property owners and facility teams with a single site to keep open
- Equipment hire and rental companies
- Retail chains running a winter seasonal range
Problems It Solves
- A truck mounted plough is too large and too expensive for a driveway, a forecourt or a small yard
- Walk behind machines take too long on a property measured in thousands of square metres
- Single engine machines lose working head speed exactly when the snow gets deep and the drive needs power
- Fixed angle heads push snow back onto ground already cleared and double the pass count
- A machine used only a few weeks a year is hard to justify unless it also carries load and passengers
- Uncertified machines leave the EU importer carrying the CE compliance burden
Technical Features
- 250cc Zongshen water cooled single cylinder four stroke vehicle engine with electrical start
- Separate Loncin 420cc OHV four stroke rear working engine rated 9.0kW at 3600rpm
- 4 forward speeds, 1 neutral and 1 reverse with a vehicle speed of 3 to 10km/h
- Electronic clutch transmission to the working head
- 150cm working width with a 55cm brush turning at up to 400rpm
- Maximum area sweep rate of 3600 to 26000 square metres per hour
- Working head adjustable 25 degrees left and 25 degrees right
- Front and rear brake discs
- Two seats and 200kg load capacity
- 10L fuel tank
Certifications
- CE Standard for Europe
Quality Control
- Incoming inspection on engines, clutches and steel before they reach the line
- In process checks during welding and assembly of the frame and working head
- Brake and drive function check before packing
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Manual and packaging artwork in the destination market language
- Packing configuration to suit the sales channel
How It Compares
Against Blade attachment on a standard ATV
A blade pushes snow and needs somewhere to put it. This machine drives a 55cm brush at up to 400rpm from its own 420cc engine and angles the head 25 degrees either way.
Against Walk behind snow thrower
A walk behind machine covers a path. At 150cm width and up to 10km/h this clears a driveway and forecourt in a fraction of the passes.
Against Truck mounted snow plough
A truck plough is priced and sized for a road network. This is a two seat machine at 600kg gross that works on driveways and small yards.
Against Single engine ride on sweeper
With one engine, drive load and brush load compete. Here the 250cc vehicle engine and the 420cc working engine are separate.
Use Guide
- Check fuel level, oil and brake operation on both engines before the first run of the shift
- Set the working head angle away from traffic, parked vehicles and building glazing before engaging the brush
- Engage the working head with the electronic clutch at low vehicle speed, then build up speed as the brush clears
- Keep load within the 200kg capacity and brake early on a sloped driveway
- Raise the working head for transport and store the machine with the brush off the ground
- Drain or stabilise fuel in both engines at the end of the season before storage
ATV Snowplow Buyer Questions
What is the minimum order quantity?
One 20ft container, which holds 6 units of this model. Single sample orders are also accepted if you want to test the machine before committing to a container.
How long is the lead time?
25 to 35 days for a full 40HQ container. A sample order ships in 1 to 7 days.
Is the machine CE certified for the European market?
Yes. This model is produced to CE standard for Europe.
How many units fit in a container?
6 units in a 20ft, 13 units in a 40ft and 15 units in a 40HQ, packed on an iron rack in a wooden box at 300*150*110cm.
Does the working head run off the same engine as the vehicle?
No. The vehicle runs on a 250cc Zongshen engine and the working head is driven by a separate Loncin 420cc engine rated 9.0kW at 3600rpm.
What warranty and spare parts support do you provide?
One year warranty. Parts needed because of a quality problem are supplied free of charge, and parts outside the warranty period are sold at cost price.
Can the machine be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
Other Models in Snow Sweepers
Wheels snow shovel
View Specifications →

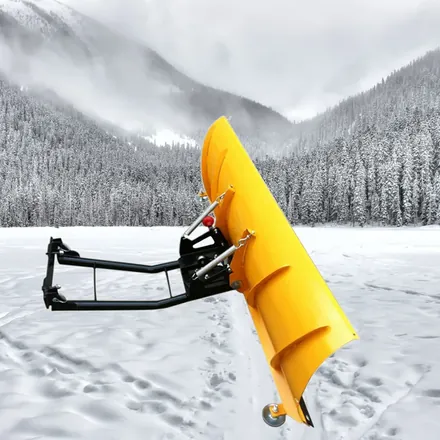

Multi-function snow plough
View Specifications →

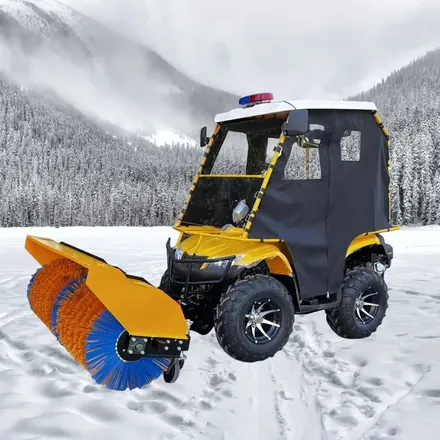

Riding snow blower
