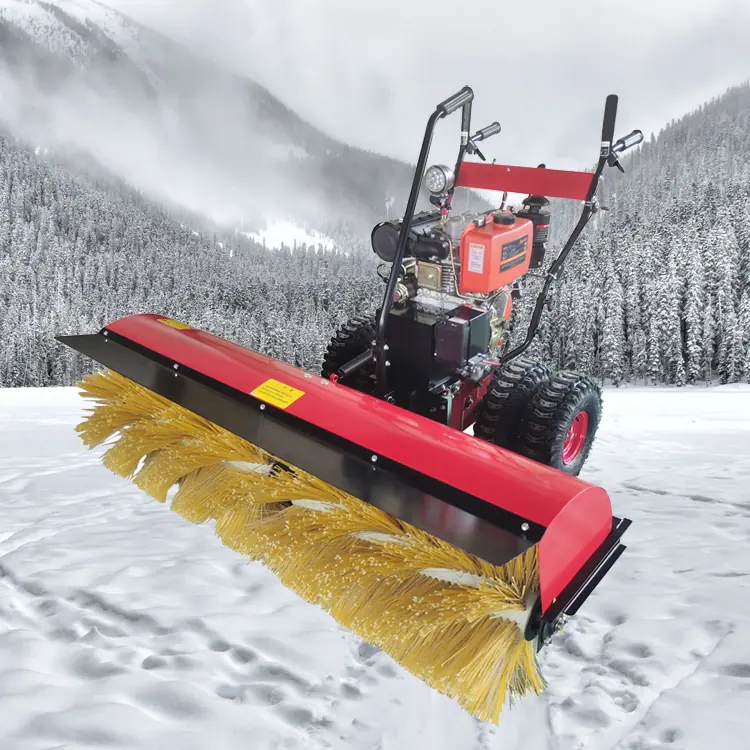

41.7 Inch Diesel Snow Sweeper With Electric Start and Steering SJ0902GD-5-1
The SJ0902GD-5-1 is a diesel powered walk behind snow sweeper for municipal crews, industrial sites and contractors who already run diesel on site and want one fuel across the fleet. A 418cc Beiante 188F/E OHV four stroke engine rated 7.5kW at 3600rpm drives a 50cm brush across a 106cm working width, sweeping up to 5000 square metres per hour on 1.6 litres of fuel an hour. Electric start and a steering system let a single operator work a long pedestrian route without manhandling the machine at every turn. It is built to CE standard for Europe and loads 50 units to a 40HQ container.
- Diesel engine means one fuel across a site that already runs diesel plant, so there is no separate petrol store to manage
- 1.6L per hour consumption keeps running cost predictable across a full winter shift
- 106cm brush width clears a standard footpath in a single pass
- Steering system turns the machine at the end of a path under power rather than by hand
- Brush sweeping lifts snow off block paving and coated surfaces without the gouging a steel blade causes
- Electric start as well as manual start, which matters for a diesel on a cold morning
- CE standard for Europe removes the compliance step for EU importers
Product Gallery
Specifications
| Model No | SJ0902GD-5-1 |
|---|---|
| Engine Brand | Diesel Beiante 188F/E, OHV, 4 stroke |
| Power | 7.5kW/3600rpm |
| Displacement | 418cc |
| Start Mode | Manual start and electric start |
| Fuel Capacity | 5.5L |
| Oil Capacity | 1.65L |
| Fuel Consumption | 1.6L/H |
| Area Sweep (Max) | 5000 m²/H |
| Transmission Mode | Friction wheel |
| Working Width | 106cm / 41.7″ |
| Brush Diameter | 50cm / 19.7″ |
| Forward / Reverse Speeds | 5 forward / 2 reverse |
| Wheels | 15″ four snow wheels |
| Universal Wheel | 6″ wheels |
| Working Head Adjustable Angle | Left 25 degrees, right 25 degrees |
| Steering System | Yes |
| Easy Fast Assembly | Yes |
| Packing | Wooden box, 1PC/carton |
| Certification for Europe | CE Standard |
| Gross / Net Weight | 145 / 135kg |
| Carton Size | 138*115*92cm |
| Warranty | One year |
| Loading 20′ / 40′ / 40HQ | 20 / 44 / 50pcs |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Municipal crews sweeping footpaths, pedestrian precincts, crossings and bus stops
- Industrial and logistics sites where diesel is already the standard site fuel
- Facility teams clearing block paved forecourts, entrances and loading bays
- Contractors running fixed seasonal routes across several commercial properties in one shift
- Airports, depots and yards where petrol storage is restricted
Who It Is For
- Importers and distributors stocking diesel winter maintenance equipment
- Municipal and highway maintenance departments
- Industrial, port and logistics site maintenance teams
- Property and facility management contractors
- Equipment hire and rental companies
Problems It Solves
- Running petrol machines on a diesel site means a second fuel store, second stock and a second set of handling rules
- A plough blade skips over a thin fresh fall and leaves a compacted film that turns to ice
- Steel blades scratch block paving, resin surfaces and painted markings the site owner then has to repair
- Diesel engines are hard to start by recoil in low temperatures, which is why electric start is fitted
- Turning a 135kg machine by hand at the end of each path slows a long route
- Uncertified machines leave the EU importer carrying the CE compliance burden
Technical Features
- Diesel Beiante 188F/E OHV four stroke engine rated 7.5kW at 3600rpm from 418cc
- 106cm / 41.7 inch working width with a 50cm / 19.7 inch brush diameter
- Area sweep of up to 5000 square metres per hour
- Friction wheel transmission with five forward and two reverse speeds
- Steering system fitted
- Working head adjustable 25 degrees left and 25 degrees right
- 15 inch four snow wheel set with 6 inch universal wheels
- Manual and electric start fitted as standard
- 5.5L fuel tank with 1.6L per hour consumption
Certifications
- CE Standard for Europe
Quality Control
- Incoming inspection on diesel engines, drive components and steel before they reach the line
- In process checks during welding and assembly of the brush head and steering linkage
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Manual and packaging artwork in the destination market language
- Packing format adjusted to suit the sales channel
How It Compares
Against 420cc gasoline snow sweeper of the same width
Same 106cm width and 50cm brush. The diesel version uses 1.6L per hour against 1.8L and takes the same fuel as the rest of a diesel site fleet.
Against Model SJ0902GD-5 without steering
This version adds a steering system and weighs 145kg gross against 130kg, loading 50 rather than 58 units per 40HQ.
Against Snowplow blade
A blade scrapes and can damage block paving and markings. A rotating brush sweeps the surface clean without that risk.
Use Guide
- Check engine oil and diesel level before the first start of the season and use winter grade fuel in low temperatures
- Allow the diesel engine to warm before applying full brush load in freezing conditions
- Set the head angle to the side you want the snow swept before starting the pass
- Sweep while the fall is fresh, before snow is walked or driven into a compacted layer
- Store the machine dry at the end of the season with the brush off the ground
41.7″ Diesel snow sweeper Buyer Questions
What is the minimum order quantity?
One 20ft container, which holds 20 units of this model. A single sample order is also accepted if you want to test the machine first.
How long is the lead time?
25 to 35 days for a full 40HQ container. A sample order ships in 1 to 7 days.
Is the sweeper CE certified for the European market?
Yes. This model is produced to CE standard for Europe.
How many units fit in a container?
20 units in a 20ft, 44 units in a 40ft and 50 units in a 40HQ, packed one machine per wooden box at 138*115*92cm.
Which engine is fitted?
A Beiante 188F/E diesel, OHV four stroke, 418cc, rated 7.5kW at 3600rpm with manual and electric start.
What warranty and spare parts support do you provide?
One year warranty. Parts needed because of a quality problem are supplied free of charge, and parts outside the warranty period are sold at cost price.
Can the machine be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
