41.7 Inch 106cm 420cc Snow Sweeper With Electric Start SJ0152XD-5-1

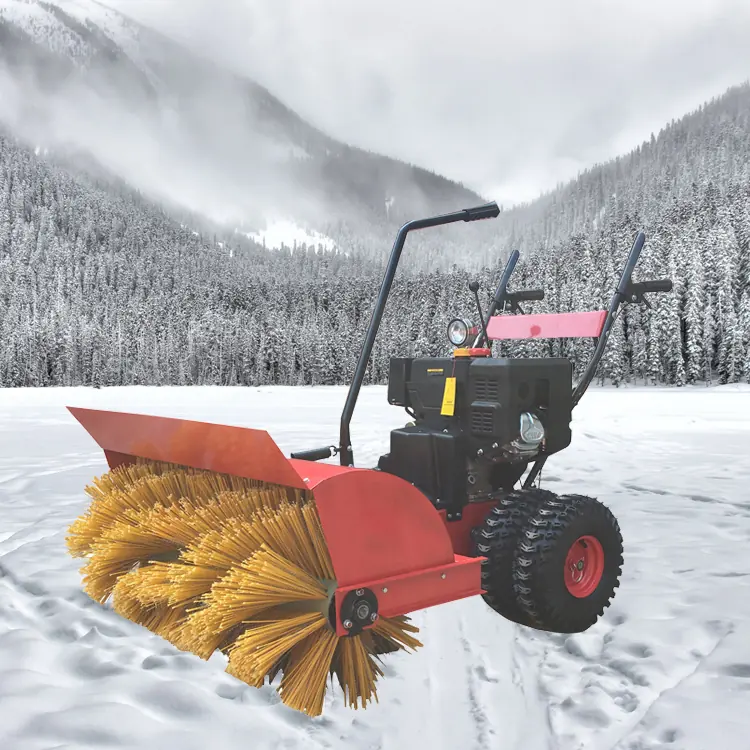

The SJ0152XD-5-1 is a walk behind rotary snow sweeper for municipal crews, facility teams and contractors who need to take light and fresh snow off paved surfaces without scraping the finish. A 420cc Loncin L190FDS engine driving through a friction wheel transmission turns a 50cm diameter brush across a 106cm working width, sweeping up to 5000 square metres per hour. A steering system lets the operator turn the machine left or right on a narrow footpath instead of manhandling it, and the sweeping head angles 25 degrees to either side. The sweeper is built to CE standard for Europe, packs in a wooden box and loads 50 units to a 40HQ container.
- 106cm brush width clears a standard footpath in a single pass
- Brush sweeping lifts snow off block paving and coated surfaces without the gouging a steel blade causes
- Up to 5000 square metres per hour makes a fixed municipal or commercial route predictable to schedule
- Steering system turns the machine at the end of a path so the operator does not have to lift and drag it
- Head angles 25 degrees left or right so snow is swept clear of ground already finished
- Electric start as well as manual start, so a cold pre dawn call out does not depend on a recoil pull
- CE standard for Europe removes the compliance step for EU importers
Product Gallery
Specifications
| Model No | SJ0152XD-5-1 |
|---|---|
| Engine Brand | Loncin L190FDS, OHV, 4 stroke |
| Power | 9.0kW/3600rpm |
| Displacement | 420cc |
| Start Mode | Manual start and electric start |
| Fuel Capacity | 6.5L |
| Oil Capacity | 1.1L |
| Fuel Consumption | 1.8L/H |
| Area Sweep (Max) | 5000 m²/H |
| Transmission Mode | Friction wheel |
| Working Width | 106cm / 41.7″ |
| Brush Diameter | 50cm / 19.7″ |
| Forward / Reverse Speeds | 5 forward / 2 reverse |
| Wheels | 15″ four snow wheels |
| Universal Wheel | 6″ wheels |
| Working Head Adjustable Angle | Left 25 degrees, right 25 degrees |
| Steering System | Yes |
| Easy Fast Assembly | Yes |
| Packing | Wooden box, 1PC/carton |
| Certification for Europe | CE Standard |
| Gross / Net Weight | 145 / 135kg |
| Carton Size | 138*115*92cm |
| Warranty | One year |
| Loading 20′ / 40′ / 40HQ | 20 / 44 / 50pcs |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Municipal crews sweeping footpaths, pedestrian areas, crossings and bus stops
- Facility teams keeping block paved forecourts, entrances and loading bays open
- Contractors running fixed seasonal routes across several commercial properties in one shift
- Sites with decorative or coated paving where a scraping blade would damage the surface
- Equipment hire fleets that also need a sweeper for debris and leaves outside the winter season
Who It Is For
- Importers and distributors stocking winter maintenance equipment for the European season
- Municipal and highway maintenance departments
- Property and facility management contractors
- Retail parks, campuses and hospital estates with large pedestrian areas
- Equipment hire and rental companies
Problems It Solves
- A plough blade skips over a thin fresh fall and leaves a compacted film that turns to ice; a rotating brush lifts it off
- Steel blades scratch block paving, resin surfaces and painted markings that the site owner then has to repair
- Narrow machines force repeat passes and blow out the labour budget on a fixed route
- Sweepers without steering are heavy to turn at the end of every path, which slows the whole route
- Recoil only machines are slow to start in freezing conditions at the beginning of a shift
- Uncertified machines leave the EU importer carrying the CE compliance burden
Technical Features
- Loncin L190FDS OHV four stroke engine rated 9.0kW at 3600rpm from 420cc
- 106cm / 41.7 inch working width with a 50cm / 19.7 inch brush diameter
- Area sweep of up to 5000 square metres per hour
- Friction wheel transmission with five forward and two reverse speeds
- Steering system fitted
- Working head adjustable 25 degrees left and 25 degrees right
- 15 inch four snow wheel set with 6 inch universal wheels
- Manual and electric start fitted as standard
- 6.5L fuel tank with 1.8L per hour consumption
- Seat available as an option for more comfortable clearing
Certifications
- CE Standard for Europe
Quality Control
- Incoming inspection on engines, drive components and steel before they reach the line
- In process checks during welding and assembly of the brush head and steering linkage
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Seat fitted as a selected option for more comfortable operation
- Buyer branding, colour and decal set
- Manual and packaging artwork in the destination market language
How It Compares
Against Snow thrower
A thrower is built for deep and compacted snow. This sweeper is faster on thin fresh falls and lifts the residual film a thrower and a blade both leave behind.
Against Snowplow blade
A blade scrapes and can damage block paving and markings. A rotating brush sweeps the surface clean without that risk.
Against Sweeper without a steering system
Turning a 135kg machine by hand at the end of every footpath slows the route. The steering system lets the operator turn it under power.
Against Same sweeper with hydrostatic drive
This model uses a friction wheel transmission with five forward and two reverse speeds, which is the simpler and lower cost drive of the two.
Use Guide
- Check oil level and fill with fresh unleaded fuel before the first start of the season
- Set the head angle to the side you want the snow swept before starting the pass
- Sweep while the fall is fresh; brush sweeping is most effective before snow is walked or driven into a compacted layer
- Keep the brush clear of gully covers and raised kerbs to limit wear on the bristles
- Drain or stabilise fuel at the end of the season and store the machine dry with the brush off the ground
15HP Snow sweeper with electrical start Buyer Questions
What is the minimum order quantity?
One 20ft container, which holds 20 units of this model. A single sample order is also accepted if you want to test the machine first.
How long is the lead time?
25 to 35 days for a full 40HQ container. A sample order ships in 1 to 7 days.
Is the sweeper CE certified for the European market?
Yes. This model is produced to CE standard for Europe.
How many units fit in a container?
20 units in a 20ft, 44 units in a 40ft and 50 units in a 40HQ, packed one machine per wooden box at 138*115*92cm.
Can a seat be fitted?
Yes. A seat can be selected for more comfortable snow clearing.
What warranty and spare parts support do you provide?
One year warranty. Parts needed because of a quality problem are supplied free of charge, and parts outside the warranty period are sold at cost price.
Can the machine be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
