41.7 Inch 420cc Hydrostatic Snow Sweeper SJ0152HGXD-5-1

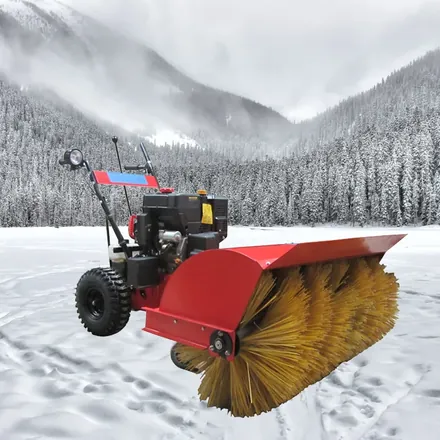

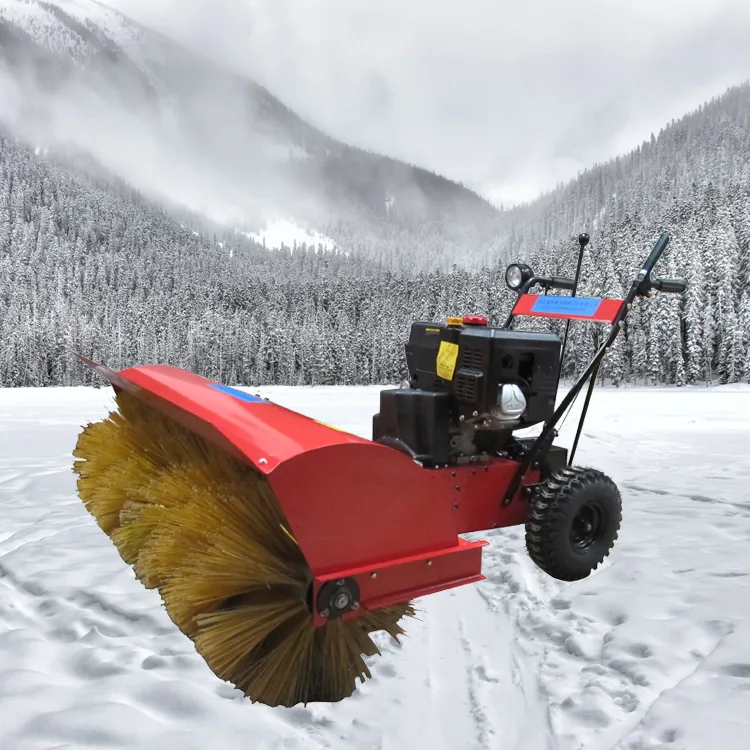

The SJ0152HGXD-5-1 is a walk behind rotary snow sweeper with a hydrostatic transmission, built for municipal crews and contractors who spend a whole shift on stop start pedestrian routes. A 420cc Loncin L190FDS engine drives a 50cm diameter brush across a 106cm working width and sweeps up to 5000 square metres per hour, lifting fresh snow off paving without the scraping a steel blade causes. The hydrostatic system gives stepless speed control instead of five fixed gears, so the operator changes pace around obstacles and reverses out of a corner without stopping to shift. It is built to CE standard for Europe and loads 50 units to a 40HQ container.
- Hydrostatic drive gives stepless forward and reverse control, which suits routes with constant stopping and reversing
- No gear shifting under load, so an operator running an eight hour shift makes fewer drivetrain mistakes
- 106cm brush width clears a standard footpath in a single pass
- Brush sweeping lifts snow off block paving and coated surfaces without gouging them
- Up to 5000 square metres per hour makes a fixed municipal or commercial route predictable to schedule
- Steering system turns the machine at the end of a path under power rather than by hand
- CE standard for Europe removes the compliance step for EU importers
Product Gallery
Specifications
| Model No | SJ0152HGXD-5-1 |
|---|---|
| Engine Brand | Loncin L190FDS, OHV, 4 stroke |
| Power | 9.0kW/3600rpm |
| Displacement | 420cc |
| Start Mode | Manual start and electric start |
| Fuel Capacity | 6.5L |
| Oil Capacity | 1.1L |
| Fuel Consumption | 1.8L/H |
| Area Sweep (Max) | 5000 m²/H |
| Transmission Mode | Hydrostatic system |
| Working Width | 106cm / 41.7″ |
| Brush Diameter | 50cm / 19.7″ |
| Forward / Reverse Speeds | 5 forward / 2 reverse |
| Wheels | 15″ four snow wheels |
| Universal Wheel | 6″ wheels |
| Working Head Adjustable Angle | Left 25 degrees, right 25 degrees |
| Steering System | Yes |
| Easy Fast Assembly | Yes |
| Packing | Wooden box, 1PC/carton |
| Certification for Europe | CE Standard |
| Gross / Net Weight | 145 / 135kg |
| Carton Size | 138*115*92cm |
| Warranty | One year |
| Loading 20′ / 40′ / 40HQ | 20 / 44 / 50pcs |
Figures as supplied by the factory. Confirm critical dimensions in writing before ordering.
Application Scenarios
- Municipal crews sweeping footpaths, pedestrian precincts, crossings and bus stops
- Facility teams clearing block paved forecourts, entrances and loading bays
- Contractors working tight routes with frequent stops, gateways and corners
- Campus, hospital and retail park estates with long pedestrian networks
- Equipment hire fleets that need a drive system tolerant of untrained operators
Who It Is For
- Importers and distributors stocking premium winter maintenance equipment
- Municipal and highway maintenance departments
- Property and facility management contractors
- Campus, hospital and retail estate teams
- Equipment hire and rental companies
Problems It Solves
- Geared friction drive forces a shift at every obstacle on a stop start pedestrian route, which costs time across a shift
- Untrained or seasonal operators damage a geared drivetrain by shifting under load; hydrostatic drive removes that failure mode
- A plough blade skips over a thin fresh fall and leaves a compacted film that turns to ice
- Steel blades scratch block paving, resin surfaces and painted markings that the site owner then has to repair
- Turning a 135kg machine by hand at the end of each path slows the route
- Uncertified machines leave the EU importer carrying the CE compliance burden
Technical Features
- Hydrostatic transmission for stepless speed control
- Loncin L190FDS OHV four stroke engine rated 9.0kW at 3600rpm from 420cc
- 106cm / 41.7 inch working width with a 50cm / 19.7 inch brush diameter
- Area sweep of up to 5000 square metres per hour
- Steering system fitted
- Working head adjustable 25 degrees left and 25 degrees right
- 15 inch four snow wheel set with 6 inch universal wheels
- Manual and electric start fitted as standard
- 6.5L fuel tank with 1.8L per hour consumption
Certifications
- CE Standard for Europe
Quality Control
- Incoming inspection on engines, hydrostatic drive units and steel before they reach the line
- In process checks during welding and assembly of the brush head and steering linkage
- 100% finished machine inspection before packing
- Full order inspection before shipment with real time production status shared with the buyer
Customization Options
- OEM and ODM production to buyer drawings and specification
- Buyer branding, colour and decal set
- Manual and packaging artwork in the destination market language
- Packing format adjusted to suit the sales channel
How It Compares
Against Friction wheel version SJ0152XD-5-1
Same 420cc engine, 106cm width and 50cm brush. The hydrostatic drive replaces fixed gears with stepless control, which pays off on stop start routes and with seasonal operators.
Against Snowplow blade
A blade scrapes and can damage block paving and markings. A rotating brush sweeps the surface clean without that risk.
Against Snow thrower
A thrower is built for deep compacted snow. This sweeper is faster on thin fresh falls and removes the residual film a thrower leaves.
Use Guide
- Check engine oil and hydrostatic system condition before the first start of the season
- Set the head angle to the side you want the snow swept before starting the pass
- Use the stepless control to slow down over gully covers and kerbs rather than lifting the machine
- Sweep while the fall is fresh, before snow is walked or driven into a compacted layer
- Drain or stabilise fuel at the end of the season and store the machine dry with the brush off the ground
15HP Gasoline snow sweeper with hydrostatic system Buyer Questions
What is the minimum order quantity?
One 20ft container, which holds 20 units of this model. A single sample order is also accepted if you want to test the machine first.
How long is the lead time?
25 to 35 days for a full 40HQ container. A sample order ships in 1 to 7 days.
Is the sweeper CE certified for the European market?
Yes. This model is produced to CE standard for Europe.
How many units fit in a container?
20 units in a 20ft, 44 units in a 40ft and 50 units in a 40HQ, packed one machine per wooden box at 138*115*92cm.
What is the difference from the friction wheel model?
The engine, 106cm working width and 50cm brush are the same. This version uses a hydrostatic transmission instead of a friction wheel drive.
What warranty and spare parts support do you provide?
One year warranty. Parts needed because of a quality problem are supplied free of charge, and parts outside the warranty period are sold at cost price.
Can the machine be supplied under our own brand?
Yes. OEM and ODM production is available, including buyer branding, colour scheme, manual and packaging artwork.
