Painted Writing Steel
Coil coated writing surface for magnetic whiteboards chalkboards and blackboards in white green and black with a plain or gridded face.
See the range
Writing Surface And Coated Steel Coil From One Mill Partner
Senko Steel supplies painted and ceramic writing steel for magnetic whiteboards and chalkboards, printed pattern steel for building decoration, and pre-coated surface steel for home appliance panels.
- Coil width 600mm to 1500mm
- Thickness from 0.2mm
- Wood brick stone and camouflage patterns
- All patterns can be custom made
What We Make
Painted and ceramic writing steel, printed pattern steel and appliance surface steel, supplied as coil.
Who We Serve
Whiteboard and chalkboard factories, appliance panel producers and building decoration panel makers.
What Problem We Solve
A finished surface that writes, erases, forms and installs without a paint line of your own.
Why Customers Choose Us
One supplier for the painted grade, the ceramic grade and the printed pattern grade of the same material family.
Four Ranges Built On One Material
Steel that arrives already finished, so your line starts at forming instead of painting.
Ceramic Writing Steel
Vitreous enamel writing surface in white and green for boards that stay in daily service for years.
See the range
Home Appliances Steel
Pre-coated PCM steel for appliance panels supplied plain or printed and finished before forming.
See the range
Decorative Pattern Steel
Printed PCM steel in wood brick stone and camouflage patterns for interior and exterior panel work.
See the rangeEvery Product We Supply
Twelve coil products across writing surfaces, appliance panels and decorative patterns.
Painted Whiteboard Steel
Painted whiteboard steel coil for magnetic dry erase boards in a high glossy or matt white face.
- Thickness0.2mm to 0.6mm
- Coil Width600mm to 1500mm
- Inner Diameter508mm
Green Chalkboard Steel
Painted green chalkboard steel coil for magnetic chalk writing boards.
- Thickness0.2mm to 0.6mm
- Coil Width600mm to 1500mm
- Inner Diameter508mm
Black Chalkboard Steel
Painted black chalkboard steel coil for magnetic blackboards.
- Thickness0.2mm to 0.6mm
- Coil Width600mm to 1500mm
- Inner Diameter508mm
Grid Whiteboard Steel
Painted whiteboard steel coil printed with a 5 x 5cm grid for planner and schedule boards.
- Thickness0.2mm to 0.6mm
- Coil Width600mm to 1500mm
- Inner Diameter508mm
Grid Chalkboard Steel
Painted green chalkboard steel coil printed with a 5 x 5cm grid for maths and music room boards.
- Thickness0.2mm to 0.6mm
- Coil Width600mm to 1500mm
- Inner Diameter508mm

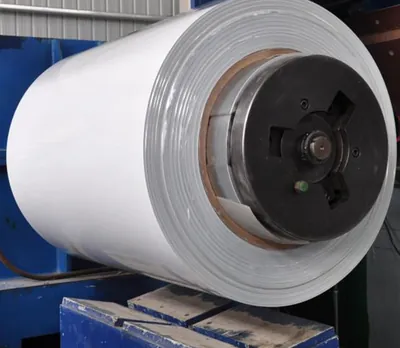

Ceramic Whiteboard Steel
Ceramic whiteboard steel coil, a vitreous enamel writing surface that will neither scratch nor corrode.
- Thickness0.4mm to 0.6mm
- Coil Width600mm to 1500mm
- Inner Diameter508mm

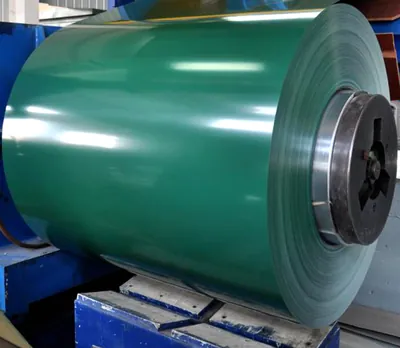

Ceramic Green Chalkboard Steel
Ceramic green chalkboard steel coil, a vitreous enamel chalk writing surface for long service classrooms.
- Thickness0.4mm to 0.6mm
- Coil Width600mm to 1500mm
- Inner Diameter508mm
Home Appliance Steel
PCM coated steel for appliance panels, coated and printed before forming.
- Base Metal Thickness0.2mm to 1.2mm
- Coil Width800mm to 1500mm
- Coil Inner Diameter508mm and 610mm
Wood Pattern Steel
Wood grain printed PCM steel coil for panels, doors and interior cladding.
- Base Metal Thickness0.2mm to 1.2mm
- Coil Width800mm to 1500mm
- Coil Inner Diameter508mm and 610mm

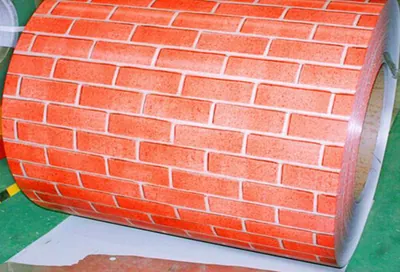

Brick Pattern Steel
Brick pattern printed PCM steel coil for facade and feature wall panels.
- Base Metal Thickness0.2mm to 1.2mm
- Coil Width800mm to 1500mm
- Coil Inner Diameter508mm and 610mm

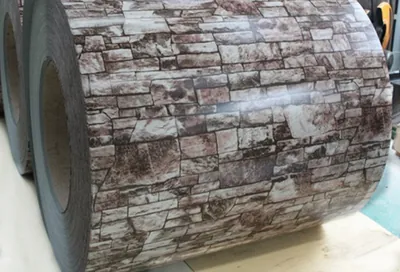

Stone Pattern Steel
Stone pattern printed PCM steel coil for cladding that needs a masonry face without masonry weight.
- Base Metal Thickness0.2mm to 1.2mm
- Coil Width800mm to 1500mm
- Coil Inner Diameter508mm and 610mm

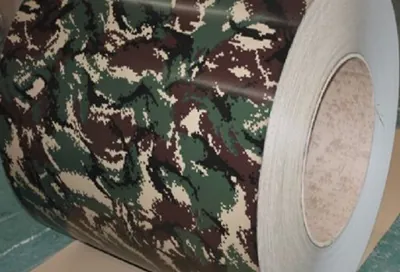

Camouflage Pattern Steel
Camouflage pattern printed PCM steel coil for shelters, containers and specialised enclosures.
- Base Metal Thickness0.2mm to 1.2mm
- Coil Width800mm to 1500mm
- Coil Inner Diameter508mm and 610mm
How A Coated Coil Is Built
The finish is applied on the coating line, before the material ever reaches your press or your board bench.
On PCM steel the printed pattern sits under a clear varnish and above the top coating, and a polyethylene film protects the face until the panel is installed. The full nine layer build up is published on every pattern steel product page.
Published Production Figures
Figures below are the specification ranges Senko Steel publishes for these ranges.
- 80000 MTYearly capacity published for the coated pattern steel range
- 0.2 to 1.2mmBase metal thickness across the PCM range
- 600 to 1500mmCoil width available for writing steel
- Up to 8 MTMaximum coil weight on the PCM range
Industries We Supply
Three industries, three different reasons for buying a coated coil.
- Whiteboard And Chalkboard ManufacturingWriting surface coil for board factories supplying schools universities and training rooms.
- Home Appliance ManufacturingPre-coated panel steel for appliance makers who want the finish done before the press.
- Building Decoration And PanelsPrinted pattern steel for cladding ceiling and panel producers who need a decorative metal face.
Solutions By Buying Stage
From board or panel size through to a released production order.
- Magnetic Writing Surface SupplyFrom board size to finished coil for whiteboard and chalkboard factories.
- Custom Pattern Printed SteelWood brick stone camouflage or your own artwork printed into a PCM coating build-up.
- Appliance Panel Steel SupplyPre-coated coil that lets an appliance panel leave the press already finished.
Knowledge Center
Selection and process guides written for the people who specify the coil.
- How To Choose Whiteboard Steel For Magnetic BoardsBuying Guide
- Ceramic Steel Compared With Painted Writing SteelComparison
- What Sits Inside A PCM Steel Coating Build UpProcess Guide
- PCM Steel Compared With Common PPGIComparison
- Choosing Thickness And Coil Width For Writing SteelDesign Guide
- Pattern Printed Steel For Interior And Facade PanelsIndustry Article
Frequently Asked Questions
What does Senko Steel manufacture?
Special steel for the education, building decoration and home appliance industries: writing steel surface for whiteboards and chalkboards, pattern printed steel for building construction and decoration, and home appliance surface steel with or without printing.
Do you supply coil or cut sheet?
The products on this site are published as coil. Writing steel is supplied 600mm to 1500mm wide on a 508mm inner diameter in 2 to 4 ton coils. PCM pattern and appliance steel is supplied 800mm to 1500mm wide on a 508mm or 610mm inner diameter up to 8 MT. Tell us the format you need and we will confirm what can be produced.
What is the difference between painted writing steel and ceramic writing steel?
Painted writing steel carries the writing performance in a coil coated paint system and runs 0.2mm to 0.6mm. Ceramic writing steel is a vitreous enamel surface that neither scratches nor corrodes, refuses stains and stays colourfast, and runs 0.4mm to 0.6mm.
Can you print our own pattern?
Yes. Wood, brick, stone and camouflage patterns are standard designs and all patterns can be custom made. Send a sample panel, a photograph or a printed swatch to start.
Which colours are available for writing surfaces?
White in high glossy or matt for markers, green for chalk and black for chalk. White and green are also available with a printed 5 x 5cm grid.
How do we get a quotation?
Send the product, thickness, coil width, colour and quantity by WhatsApp or email. If any of those are still open, send the finished board or panel size and we will work back to the coil specification.
Tell Us The Board Or Panel You Are Making
Send the product, thickness, coil width, colour and quantity. If those are still open, send the finished size and we will work back to the coil specification.
