HPLC/GC Accessories

Vials Rack

Vials Racks are designed for stable storage, handling, and transportation of HPLC and GC sample vials in analytical laboratories. Transparent or colour-coded racks allow quick visual identification of vial type and sample batch, while solid construction ensures a stable standing position during lab workflows.

Acrylic and PP materials resist most solvents, ensuring durability in chemical and analytical environments
Transparent racks allow visual inspection for cleanliness and vial integrity

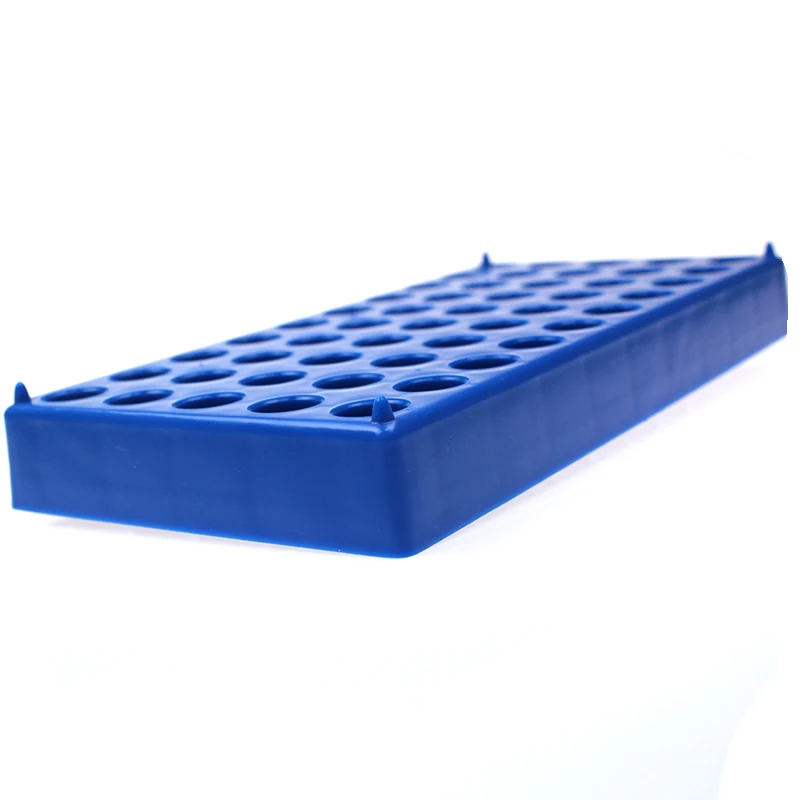

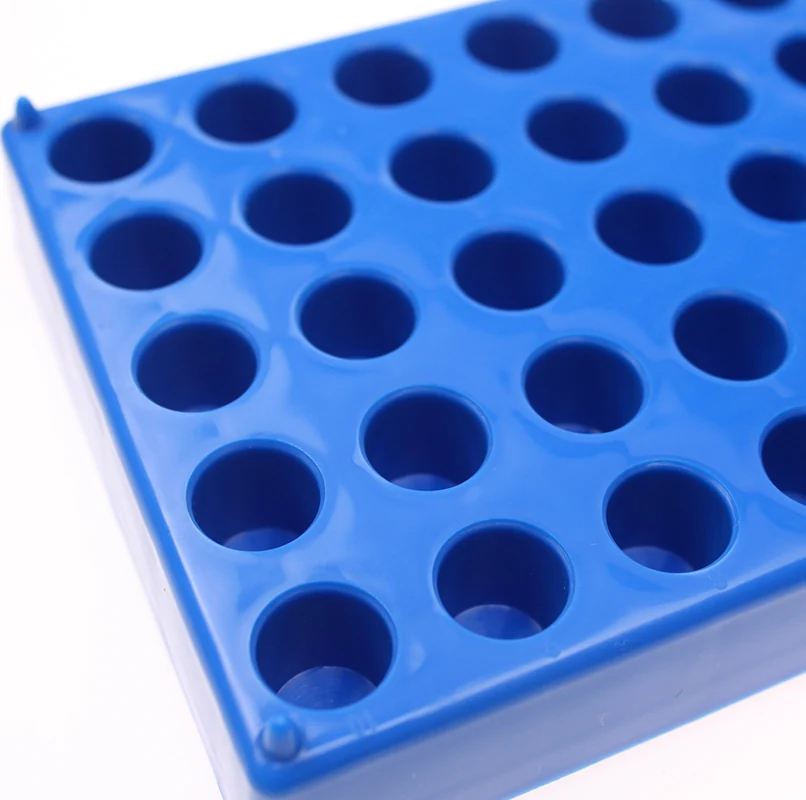

Colour-coded racks (blue, white) help differentiate vial types and sample batches at a glance
Four diameter sizes match 2 ml, 4 ml, headspace, and 24-400 vials for consistent fit and stability

Key Benefits

What This Product Gives You

Acrylic and PP materials resist most solvents, ensuring durability in chemical and analytical environments
Transparent racks allow visual inspection for cleanliness and vial integrity
Colour-coded racks (blue, white) help differentiate vial types and sample batches at a glance
Four diameter sizes match 2 ml, 4 ml, headspace, and 24-400 vials for consistent fit and stability
Solid construction prevents tipping during transport or bench use, reducing risk of vial breakage

Four diameter sizes: 12.5 mm (2 ml), 16.5 mm (4 ml), 22.5 mm (headspace), 28.5 mm (24-400 vials)

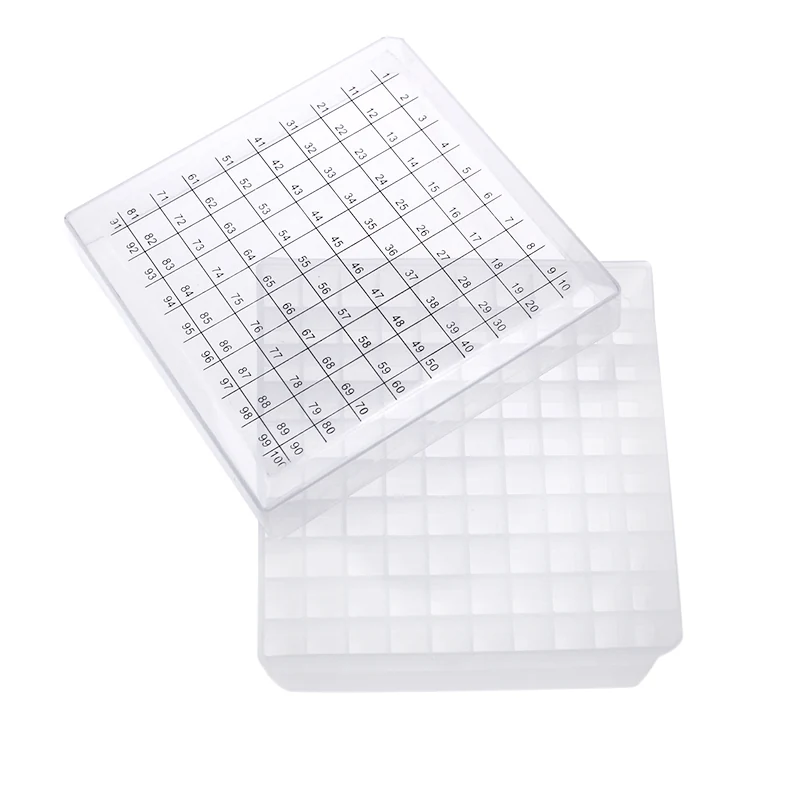

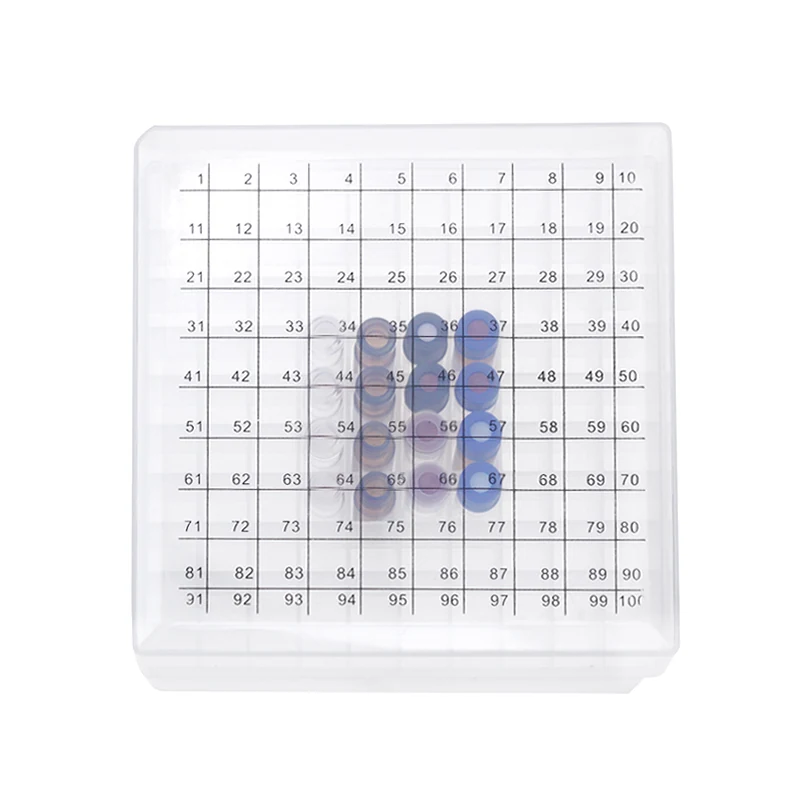

50# capacity for VR02A, VR04A, VR20A, VR24A; 40# for VR20P, VR24P; 100# for VB02P
Transparent design for visual inspection and cleaning verification
Colour-coded options (blue, white) for easy identification
Solid construction ensures stable standing position
Designed for 2 ml, 4 ml, headspace, and 24-400 vials

Where It Is Used

Applications And Buyers

Application Scenarios

Storing and transporting 2 ml and 4 ml HPLC vials in pharmaceutical QC labs
Organizing headspace vials in environmental and food testing laboratories
Managing 24-400 vials in high-throughput screening or method development workflows
Using transparent racks in clean areas where visual confirmation of vial condition is required
Labeling and tracking sample batches with colour-coded racks in multi-user lab environments

Who It Is For

Pharmaceutical and biotech laboratories managing high volumes of HPLC and GC samples
Environmental and food testing labs requiring consistent vial organization across multiple sample types
Laboratory managers standardizing on a single rack system across multiple instruments and workflows
OEM partners needing reliable, branded vial storage solutions for lab equipment bundles
Lab distributors sourcing durable, interchangeable vial racks for multiple vial formats

Problems It Solves

Vials tipping over during transport or bench handling, leading to breakage and sample loss
Difficulty identifying vial type or sample batch when racks are unmarked or opaque
Inconsistent fit between vials and racks causing misalignment in autosamplers
Racks degrading when exposed to solvents used in sample preparation
Lack of visual access to vial condition in opaque or non-transparent storage solutions

Data

Specifications

Capacity	50# (VR02A, VR04A, VR20A, VR24A), 40# (VR20P, VR24P), 100# (VB02P)
Diameter	12.5 mm (2 ml), 16.5 mm (4 ml), 22.5 mm (headspace), 28.5 mm (24-400)
Vial Type	2 ml, 4 ml, headspace, 24-400 vials
Transparency	Transparent
Colour	Blue (VR02P, VR04P), White (VR20P, VR24P), Transparent (VR02A, VR04A, VR20A, VR24A, VB02P)
Construction	Solid, stable standing design
Packing	Per part number as listed

Materials

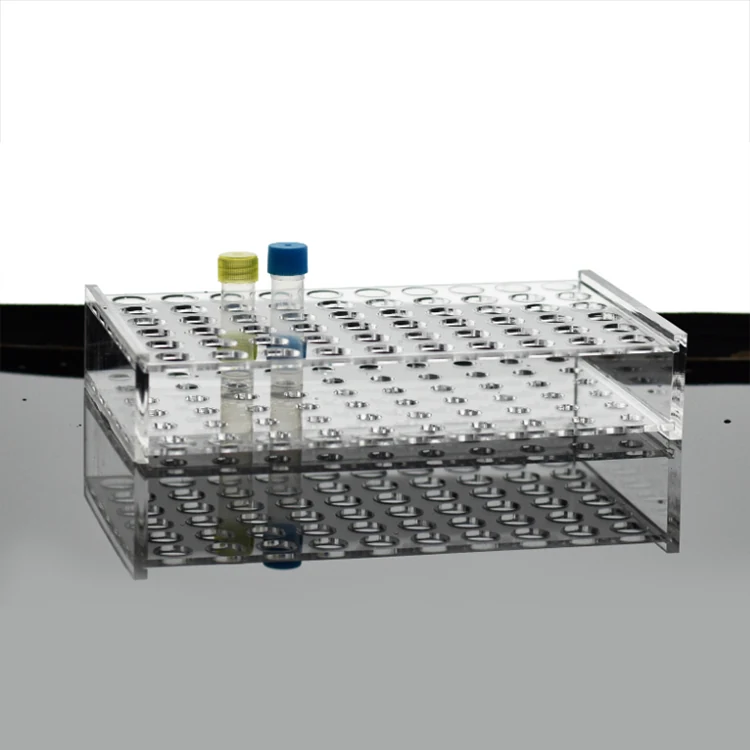

Acrylic for transparent racks

Customization Options

OEM printing and private-label packing available through the Microlab OEM division
Custom capacity or diameter options possible via OEM contract manufacturing
Private-label branding on PP and acrylic racks for lab distributors and OEM partners

How It Is Made

Manufacturing And Quality Control

Manufacturing Process

Casting and polishing of acrylic racks
Moulding and shaping to diameter-specific dimensions
Colour coding and part number marking
Final inspection and packing by part number

Quality Control

Visual inspection of rack shape and dimensional accuracy
Verification of material type and transparency
Check of colour coding and part number printing
Stability test by placing rack on a flat surface under load

Comparison

Compared With The Alternatives

Versus Plastic vial boxes with no structure

Vials Racks provide a stable, upright position that prevents tipping and vial breakage during transport or bench use

Versus Opaque plastic racks

Transparent racks allow visual confirmation of vial condition and cleanliness, which is critical in analytical workflows

Versus Single-material racks

Dual material options (acrylic and PP) allow selection based on solvent resistance and visibility needs

Versus Racks without colour coding

Colour-coded racks reduce the risk of sample mix-up when multiple vial types are stored in the same area

Use Guide

How To Use It

Select rack diameter based on vial size: 12.5 mm for 2 ml, 16.5 mm for 4 ml, 22.5 mm for headspace, 28.5 mm for 24-400 vials
Use transparent racks for visual inspection of vial condition and cleanliness
Use colour-coded racks (blue or white) to differentiate sample batches or vial types
Place racks on a flat, stable surface to prevent tipping during handling
Clean racks with mild detergent and rinse thoroughly; avoid abrasive cleaners that may scratch acrylic

Photos

Product Gallery

Also In This Category

Questions Buyers Ask

What is the difference between acrylic and PP vial racks?

Acrylic racks are transparent and suitable for visual inspection; PP racks are more chemical-resistant and available in blue and white for colour coding

Which rack fits a 2 ml vial?

VR02A (acrylic, 12.5 mm diameter) or VR02P (PP, 12 mm diameter) are designed for 2 ml vials

Can I use these racks for headspace vials?

Yes. VR20A (acrylic) and VR20P (PP) are designed for headspace vials with a 22.5 mm diameter

Are the racks compatible with autosamplers?

Yes, the stable construction and consistent diameter ensure proper fit and alignment in autosampler trays

How are the racks packed?

Each rack is packed individually by part number: VR02A, VR04A, VR20A, VR24A (50#), VR20P, VR24P (40#), VB02P (100#)

Can I get these under my own brand?

Yes. The Microlab OEM division offers private-label printing and packing for PP and acrylic vial racks
