Block Series

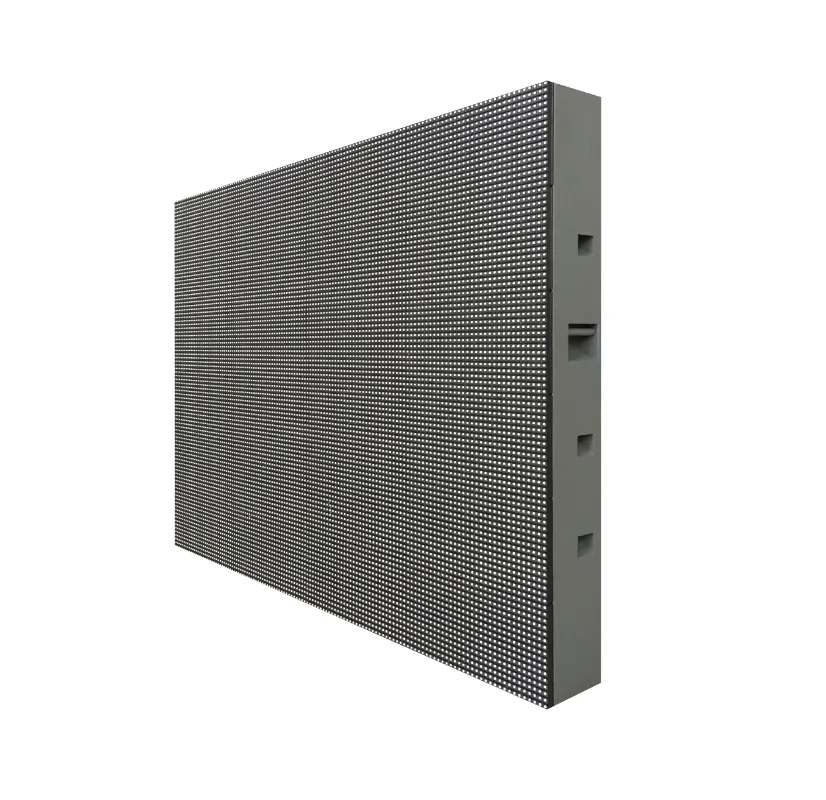

A rear-serviceable outdoor fixed LED screen with a profile metal cabinet designed for permanent installations on building facades, stadiums, and public spaces. The cabinet uses a solid metal structure for stability and efficient heat extraction.
Block Series
A rear-serviceable outdoor fixed LED screen with a profile metal cabinet designed for permanent installations on building facades, stadiums, and public spaces. The cabinet uses a solid metal structure for stability and efficient heat extraction. Pixel pitch options include 3.076, 4, 5, 6.67, 8, and 10mm to match viewing distances. Standard module size is 320x160mm, and the screen is built for outdoor use with no internal enclosure required.
- Profile metal cabinet provides structural stability and long-term durability in outdoor environments
- Efficient heat extraction from the cabinet design reduces thermal stress on modules
- Rear service access allows maintenance without removing the screen from the wall
- Multiple pixel pitch options let the screen match the intended viewing distance
- Solid metal construction resists deformation under wind load and vibration
- No internal enclosure needed—cabinet is sealed and stable for direct outdoor mounting
Where This Screen Is Used
- Building facade installations on commercial towers where rear access is limited or unavailable
- Stadium and arena screens exposed to rain, sun, and wind over extended periods
- Public information displays in transport hubs and city squares that must operate continuously
- Outdoor advertising billboards in high-traffic urban areas requiring long-term reliability
- Permanent event venues with fixed LED walls that need minimal maintenance after installation
Who It Is For
- AV system integrators installing permanent outdoor LED walls with no rear access
- DOOH media owners deploying long-life outdoor advertising displays
- Municipal and government agencies specifying durable public information screens
- Property developers adding permanent media facades to commercial buildings
- Sports and entertainment venues requiring stable, weather-resistant fixed screens
Problems It Solves
- Traditional outdoor cabinets with poor heat dissipation lead to early lamp failure and reduced lifespan
- Screens installed without rear service access require costly structural modifications or removal
- Cabinets that lack structural rigidity can warp or shift under wind load over time
- Inconsistent pixel pitch across panels leads to image distortion when scaled to large walls
- Outdoor screens with weak sealing fail prematurely due to dust and moisture ingress
Technical Features
- Profile metal cabinet with solid construction for stability and vibration resistance
- Efficient heat extraction design using the metal cabinet structure to dissipate thermal load
- Rear service access for module and power supply replacement without wall removal
- Outdoor-rated SMD LED modules with stable performance under direct sunlight and rain
- 320x160mm module size standard across all pixel pitch variants for consistent layout
- No internal enclosure required—cabinet is sealed and stable for direct outdoor mounting
Block Series Technical Data
| Installation | Outdoor fixed |
|---|---|
| Service Access | Rear service |
| Pixel Pitch | 3.076mm, 4mm, 5mm, 6.67mm, 8mm, 10mm |
| Module Size | 320x160mm |
| Cabinet Material | Profile metal cabinet |
| Heat Extraction | Efficient through solid metal cabinet structure |
| Environmental Use | Outdoor |
| Mounting Type | Fixed, no enclosure required |
| Service Type | Rear service |
| Cabinet Stability | Solid metal profile for wind and vibration resistance |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Profile metal cabinet frame
- Outdoor-rated SMD LED modules
- Rear service access panel with locking mechanism
- Weather-resistant fasteners and mounting hardware
- Sealed power and signal connectors for outdoor use
How This Screen Is Built
- SMT placement of LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly with module alignment and structural integrity check
- Full screen installation test with power and signal verification before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to detect early lamp and driver failures
- Screen installation test with cabinets built as a full wall
- Final inspection of the assembled wall for alignment, signal, and power function
Customisation Options
- Choose pixel pitch based on viewing distance and image clarity needs
- Select cabinet size from standard module layout to fit the wall opening
- Specify mounting method to match the structural support of the installation site
- Adjust brightness and refresh rate to suit the ambient lighting and content type
- Provide site dimensions and viewing distance for optimal pixel pitch and layout
How It Compares With the Alternatives
| Front-service outdoor fixed screen | Rear service is less convenient for maintenance but allows a thinner cabinet profile and lower weight per square metre |
|---|---|
| Outdoor rental cabinet | The fixed cabinet is heavier and not designed for repeated rigging, but it has a more robust structure for permanent outdoor exposure |
| Indoor fixed screen | The outdoor cabinet has sealed joints and weather-resistant materials, while indoor cabinets lack protection from rain and dust |
Use Guide
- Select pixel pitch based on the closest normal viewing distance, not on cabinet count
- Confirm the wall structure can support the cabinet load before selecting the largest size
- Ensure rear service access is clear of obstructions during installation and maintenance
- Use the supplied power and signal connectors and keep spare modules on site
- Request a full screen installation test and review the wall in the showroom before shipment
Related Products
Outdoor Fixed With Front Service
A front and rear serviceable outdoor LED screen built on a die-cast aluminium module chassis, designed for perma…
View Product →
Outdoor Fixed With High Definition
An outdoor fixed LED screen with high definition and a minimum pixel pitch of 2.5mm, built on a 960x960mm die-ca…
View Product →
Perimeter LED Display Screen
A slim and lightweight perimeter LED display screen with a 960x960mm aluminium die-cast cabinet, designed for bo…
View Product →
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →Projects Using This Product
7.68x5.76m, 44.23sqm Outdoor Fixed LED Screen
San Diego, Chile · Model MSR-OFB-8
Read The Project →
6.4x4.8m, 30.72sqm Outdoor Fixed LED Screen
Israel · Model MSR-OFB-10
Read The Project →
6.72x5.76m, 38.7sqm Outdoor Fixed LED Screen
Izmir, Turkey · Model MSR-OFB-10
Read The Project →
6.4x4.8m, 30.72sqm Outdoor Fixed LED Screen
Huancayo, Peru · Model MSR-OFB-10
Read The Project →
Questions About the Block Series
Can this screen be installed with no rear access?
Yes. The cabinet is rear-serviceable, so modules and power supplies can be replaced without removing the screen from the wall.
How does the cabinet handle heat in outdoor conditions?
The solid metal cabinet structure provides efficient heat extraction, reducing thermal stress on the modules.
What pixel pitches are available?
Available pixel pitches are 3.076mm, 4mm, 5mm, 6.67mm, 8mm, and 10mm, selected based on viewing distance.
Is the cabinet sealed for outdoor use?
Yes. The cabinet is designed for outdoor use with sealed joints and weather-resistant materials.
Can I get a custom cabinet size?
Standard module size is 320x160mm. Cabinet size is selected to fit the wall opening using this module.
Does the screen need an enclosure?
No. The cabinet is sealed and stable for direct outdoor mounting without an internal enclosure.
What is the service access type?
The screen is rear-serviceable, allowing access to modules and power supplies from behind the wall.
Quote the Block Series for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
