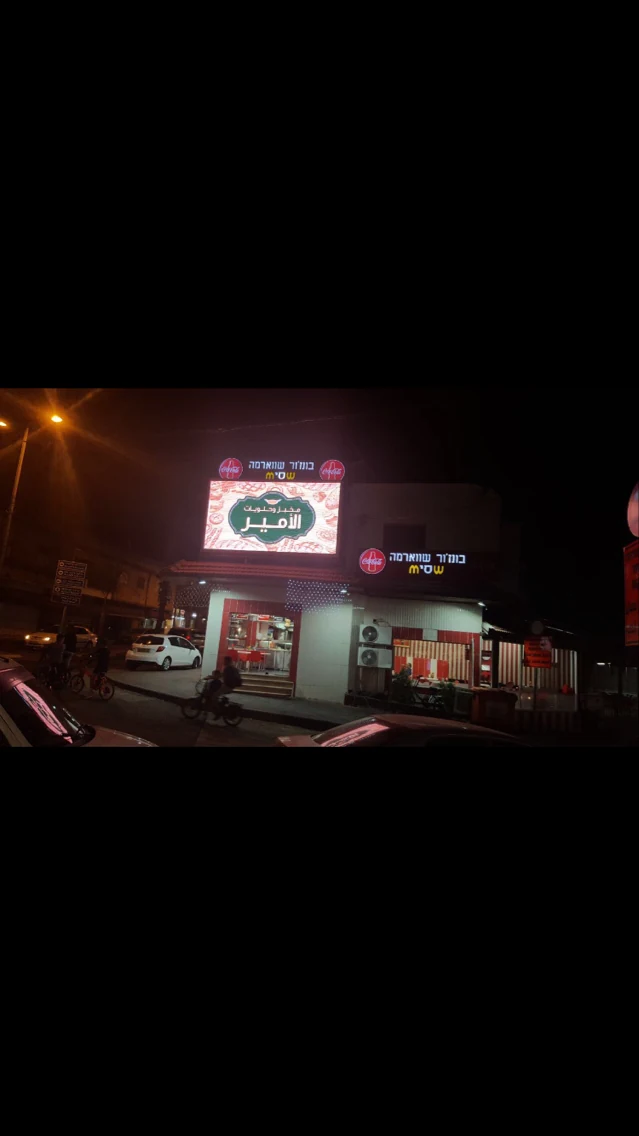

30.72sqm Outdoor Fixed LED Screen in Israel

6.4x4.8m, 30.72sqm · Model MSR-OFB-10 · Israel · Delivered 2014

Product Model	MSR-OFB-10
Screen Size	6.4x4.8m, 30.72sqm
Location	Israel
Delivered	2014
Product Supplied	Block Series
Sector	DOOH Advertising Networks

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: a 30.72sqm outdoor fixed LED screen supplied on MSR-OFB-10 cabinets for a fixed installation in Israel in 2014. A wall of this size and type is bought by a government or corporate facility operator needing a permanent outdoor display.

Challenge

The Project Challenge

Install a 30.72sqm outdoor screen in a permanent location with no rear access, requiring a cabinet design that allows full maintenance from the front while maintaining structural stability and heat dissipation in direct sunlight and variable weather.

Pain Points

Customer Pain Points

Cabinets must be sealed and stable for long-term outdoor exposure without rear access for service
Heat buildup in a fixed outdoor cabinet can degrade LED performance and lifespan
A permanent installation must maintain flatness and alignment over time without adjustment
Rear service is not possible, so all service access must be front-facing
The screen must operate reliably in direct sunlight and outdoor temperature extremes

Solution

Our Solution

The screen was built on Block Series cabinets from the MSR-OFB-10 model with a solid metal cabinet design offering fine heat extraction performance. The cabinets are designed for rear service but allow full front access for module replacement and maintenance. The 3.076/4/5/6.67/8/10mm pixel pitch options allow matching the source resolution to the display size. The 320x160mm module size enables precise alignment across the wall.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly with flatness alignment on the assembling line
Screen installation test with the cabinets built up as a wall
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed with spare modules, receiving cards, and power supplies to ensure the site crew had field spares immediately upon delivery, avoiding delays from second shipments.

Testing

Quality Control

Modules passed soldering inspection and an ageing test. Cabinets were assembled and built into a wall in the factory for a screen installation test and a screen ageing test, ensuring brightness and colour consistency across all cabinets before shipment.

Result

Final Result

Documented delivery: 30.72sqm of MSR-OFB-10 outdoor fixed LED screen, supplied for a permanent installation in Israel in 2014.

Benefit

Customer Benefit

Front access with full service capability allows maintenance without rear access, and the solid metal cabinet with fine heat extraction ensures long-term stability and performance in outdoor conditions.
