Perimeter LED Display Screen
A slim and lightweight perimeter LED display screen with a 960x960mm aluminium die-cast cabinet, designed for both fixed and portable installations. Minimum pixel pitch is 2.5mm for high-definition outdoor performance.
Perimeter LED Display Screen
A slim and lightweight perimeter LED display screen with a 960x960mm aluminium die-cast cabinet, designed for both fixed and portable installations. Minimum pixel pitch is 2.5mm for high-definition outdoor performance. Operates in environmental conditions from -15°C to 55°C and resists salt exposure. The cabinet weighs 32kg per square metre and features an angle-adjustable support bracket for flexible positioning.
- 960x960mm aluminium die-cast cabinet is slim and lightweight, reducing structural load and shipping costs
- 32kg per square metre weight allows for easier handling and reduced mounting complexity
- Angle-adjustable support bracket enables quick setup and repositioning for temporary or semi-permanent use
- Minimum pixel pitch of 2.5mm delivers high-definition visuals suitable for close viewing in outdoor settings
- Operates reliably in temperatures from -15°C to 55°C and resists salt exposure for coastal or industrial environments
- Sleek frame design enhances visual appeal in high-end outdoor applications
Where This Screen Is Used
- Temporary outdoor events and exhibitions where screens need to be set up and dismantled quickly
- Retail facades and shopping centres requiring a modern, slim-profile display with high visual impact
- Outdoor advertising installations in urban areas with limited mounting space and access
- Portable staging for concerts, sports events, and product launches with variable viewing angles
- Public spaces and transit hubs needing durable, low-maintenance screens for long-term outdoor exposure
Who It Is For
- AV system integrators deploying screens for temporary or semi-permanent outdoor events
- Rental and staging companies needing lightweight, fast-setup cabinets for multiple locations
- Retail chains installing high-end perimeter displays in storefronts with limited structural support
- Event producers requiring portable screens with consistent image quality and quick rigging
- Municipal or corporate clients specifying durable, low-weight displays for public-facing installations
Problems It Solves
- Heavy cabinets requiring complex mounting systems and crane lifts for installation
- Screens that degrade in performance due to temperature extremes or salt exposure in coastal zones
- Fixed cabinets that cannot be repositioned or adjusted after installation
- High setup time caused by non-adjustable brackets and lack of alignment tools
- Poor visual quality from large pixel pitch in close-viewing outdoor environments
Technical Features

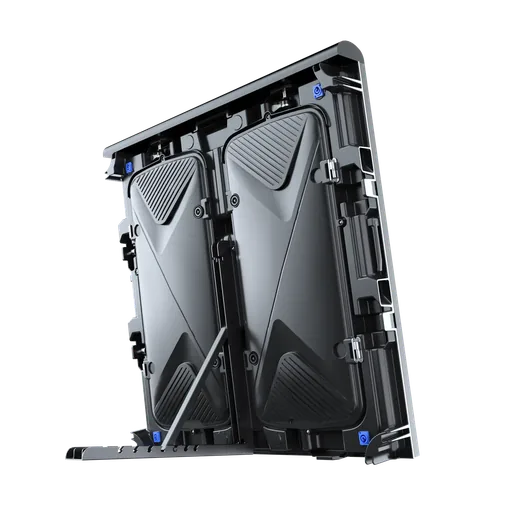

- 960x960mm aluminium die-cast cabinet with slim profile and lightweight construction

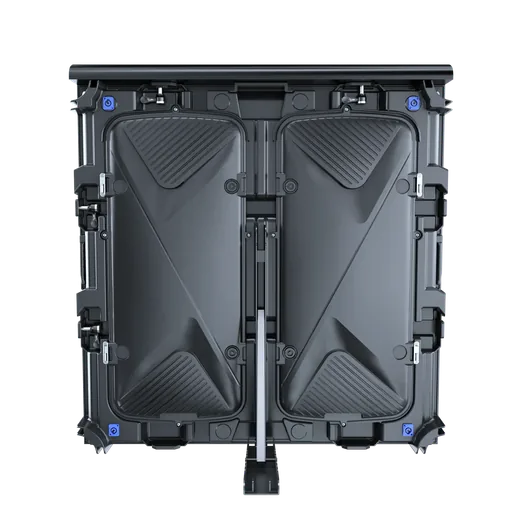

- Angle-adjustable support bracket for flexible positioning during setup and use
- Minimum pixel pitch of 2.5mm for high-definition outdoor content
- Operates in environmental conditions from -15°C to 55°C with salt resistance
- Weight of 32kg per square metre for reduced structural load and easier transport
- Sleek, modern frame design suitable for high-end visual applications
Perimeter LED Display Screen Technical Data
| Cabinet Size | 960x960mm |
|---|---|
| Cabinet Material | Aluminium die-cast |
| Weight per Square Metre | 32kg |
| Minimum Pixel Pitch | 2.5mm |
| Operating Temperature | -15°C to 55°C |
| Environmental Resistance | Anti-salt |
| Installation Type | Fixed and portable |
| Support Bracket | Angle adjustable |
| Frame Design | Slim and modern |
| Viewing Distance | Suitable for close to medium viewing in outdoor settings |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Aluminium die-cast cabinet shell
- Angle-adjustable support bracket with durable metal construction
- High-definition LED modules with 2.5mm pixel pitch
- Salt-resistant coating on cabinet and bracket components
- Slim-profile frame with smooth surface finish
How This Screen Is Built
- SMT placement of LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly with alignment of the angle-adjustable bracket
- Full screen installation test with multiple cabinets connected
- Screen ageing test on the assembled wall before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to detect early lamp and driver failures
- Screen installation test with cabinets built as a full wall
- Screen ageing test on the assembled wall before shipment
- Final inspection of cabinet flatness and bracket adjustability
Customisation Options
- Cabinet size selected from standard 960x960mm to fit the installation opening
- Pixel pitch specified based on viewing distance and content type
- Support bracket adjusted for tilt angle depending on mounting surface
- Frame finish matched to site aesthetic, including colour and surface texture
- Mounting method adapted to structure, whether fixed or portable
How It Compares With the Alternatives
| Traditional heavy outdoor fixed cabinet | The perimeter cabinet is lighter and easier to handle, but not designed for permanent wall mounting without additional support |
|---|---|
| Standard rental cabinet with fixed bracket | The angle-adjustable bracket allows faster setup and better viewing angles, but may require more space during transport |
| High-resolution indoor screen | This screen has outdoor durability and wider temperature range, but the pixel pitch is not as fine as indoor-only models |
Use Guide
- Choose pixel pitch based on the minimum viewing distance, not the cabinet count
- Verify the mounting surface can support the cabinet weight, especially for portable setups
- Ensure the angle-adjustable bracket is fully functional before final installation
- Use the provided brackets and fasteners to maintain structural integrity during transport and setup
- Request a screen ageing test at the factory and review the full wall in the showroom before shipment
Related Products
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →
Bright Curtain LED Screen
A bright curtain LED screen with a lightweight aluminium cabinet designed for high transparency and low weight, …
View Product →
Indoor Fixed With High Definition
An indoor fixed LED screen with front maintenance and high definition, built on a 640x480mm die-cast aluminium c…
View Product →
Outdoor Fixed With Front Service
A front and rear serviceable outdoor LED screen built on a die-cast aluminium module chassis, designed for perma…
View Product →Guides Related to This Product
Brightness and IP Rating for Outdoor LED Screens
Outdoor LED screens must maintain visibility under direct sunlight. MASTARLED Outdoor Fixed With Front Service reaches u…
Read The Guide →
Installation Methods for LED Screens
The method used to install an LED screen directly impacts how long a crew spends on site. Tool-free systems reduce setup…
Read The Guide →Questions About the Perimeter LED Display Screen
Can this screen be used for both fixed and portable installations?
Yes. The angle-adjustable support bracket allows it to be set up for permanent mounting or quickly repositioned for temporary events.
What is the weight of the cabinet per square metre?
The cabinet weighs 32kg per square metre, making it suitable for lightweight mounting systems.
What is the minimum pixel pitch available?
The minimum pixel pitch is 2.5mm, suitable for high-definition outdoor content at close viewing distances.
Can the bracket be adjusted for different angles?
Yes. The support bracket is angle-adjustable to allow tilt and positioning for optimal viewing from different directions.
Is the screen resistant to salt exposure?
Yes. The cabinet and bracket are treated for anti-salt resistance, suitable for coastal or industrial environments.
What temperature range can the screen operate in?
The screen operates reliably from -15°C to 55°C, making it suitable for most outdoor climates.
Can I request a custom pixel pitch?
Yes. Send the viewing distance and wall dimensions on WhatsApp and we will recommend the best pixel pitch for your application.
Quote the Perimeter LED Display Screen for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
