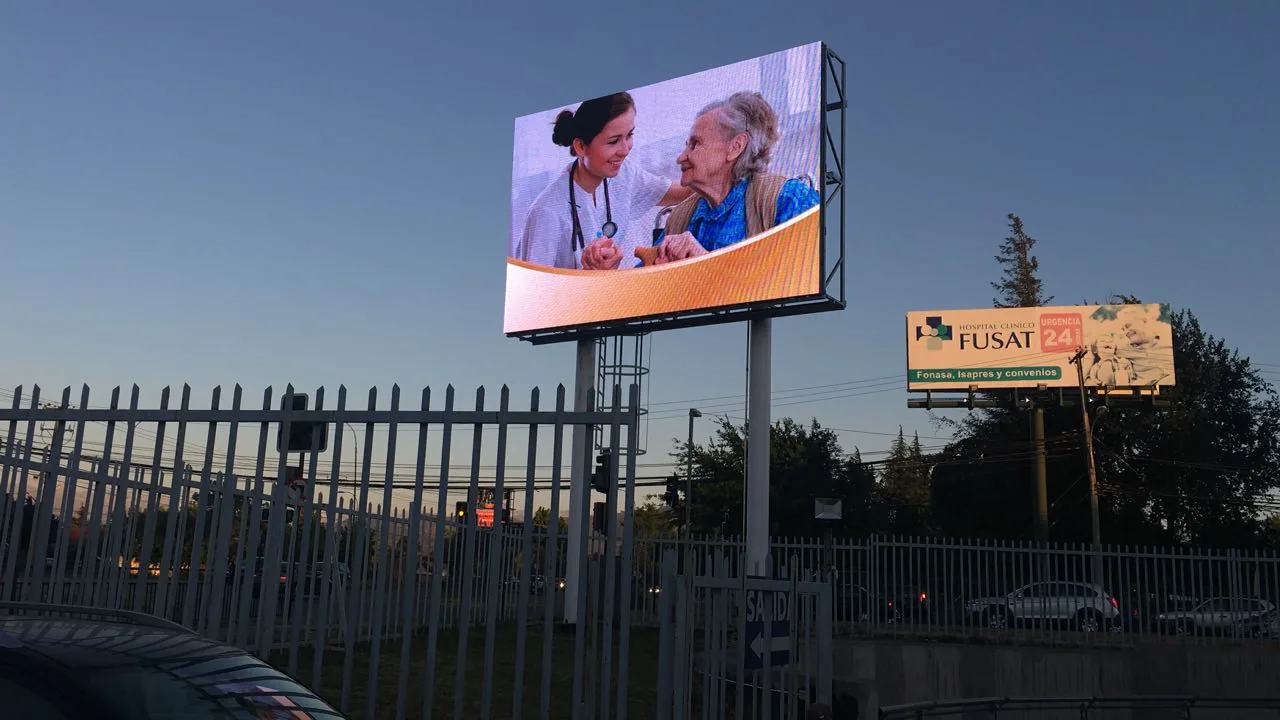

44.23sqm Outdoor Fixed LED Screen in San Diego Chile

7.68x5.76m, 44.23sqm · Model MSR-OFB-8 · San Diego, Chile · Delivered September 2017

Product Model	MSR-OFB-8
Screen Size	7.68x5.76m, 44.23sqm
Location	San Diego, Chile
Delivered	September 2017
Product Supplied	Block Series
Sector	DOOH Advertising Networks

Who It Was For

Client Background

The buyer is not named in our project records. What is documented is the screen itself: a 44.23sqm outdoor fixed LED wall supplied on MSR-OFB-8 cabinets in San Diego, Chile, delivered in September 2017. A wall of this size and specification is bought by a government or corporate entity installing a permanent display in a public or commercial outdoor setting.

Challenge

The Project Challenge

Install a permanent outdoor LED screen in a coastal city with variable weather, where the cabinet must resist moisture, dust, and temperature fluctuations without requiring maintenance access from the front, and where the screen must remain stable and uniform over time.

Pain Points

Customer Pain Points

Outdoor installation in a coastal environment requires cabinets with sealed enclosures and high heat dissipation to prevent internal condensation and component failure
Rear service access is required because the screen is mounted against a wall with no rear clearance
A fixed installation must maintain pixel alignment and brightness uniformity across 44.23sqm without visible seams or colour shifts
The screen must support multiple pixel pitches to match the source content without cropping or stretching
Cabinets must be solid and stable to withstand wind and vibration over long-term outdoor exposure

Solution

Our Solution

The wall was supplied on MSR-OFB-8 Block Series cabinets with a die-cast aluminium solid cabinet structure, fine heat extraction performance, and rear service access. Cabinets are available in 3.076, 4, 5, 6.67, 8, and 10mm pixel pitches. The 320x160mm modules were assembled into a 7.68x5.76m wall with a tight fit and consistent spacing. The cabinet design allows for rear access and secure mounting without front interference.

How It Was Built

Manufacturing Process

SMT placement and reflow soldering of the LED modules
Soldering inspection and module ageing test before assembly
Cabinet assembly with flatness alignment on the assembling line
Screen installation test with the cabinets built up as a wall
Screen ageing test before the wall was dismantled and packed

Supply Chain

Supply Chain Coordination

Cabinets were packed with spare modules, receiving cards, and power supplies to ensure the installation team had field spares available immediately upon delivery, reducing downtime during setup.

Testing

Quality Control

Modules passed soldering inspection and an ageing test. Cabinets were assembled and tested as a wall in the factory, with a screen installation test and a screen ageing test to ensure brightness and colour consistency across all cabinets before shipment.

Result

Final Result

Documented delivery: 44.23sqm of MSR-OFB-8 outdoor fixed LED screen, supplied for San Diego, Chile, in September 2017.

Benefit

Customer Benefit

Rear service access allows maintenance without removing the screen from the wall, and the solid cabinet structure with fine heat extraction ensures long-term stability in outdoor conditions. Factory-matched cabinets ensure uniform brightness and colour across the entire 44.23sqm surface.
