Outdoor Fixed With Front Service
A front and rear serviceable outdoor LED screen built on a die-cast aluminium module chassis, designed for permanent facade, roadside and stadium installations where the back of the wall sits against a building. Brightness reaches 10000 nits so the image holds up in direct sun, and IP65 sealing on both faces lets the cabinet sit outdoors without a service enclosure.
Outdoor Fixed With Front Service
A front and rear serviceable outdoor LED screen built on a die-cast aluminium module chassis, designed for permanent facade, roadside and stadium installations where the back of the wall sits against a building. Brightness reaches 10000 nits so the image holds up in direct sun, and IP65 sealing on both faces lets the cabinet sit outdoors without a service enclosure. Standard cabinet sizes are 960x640mm, 1440x960mm and 1440x640mm.
- Front service access means the screen can be mounted flat against a wall with no rear maintenance corridor
- Die-cast aluminium chassis carries heat out of the module so no air conditioning is needed behind the wall
- Energy saving circuit design cuts power draw by more than 30 percent against traditional outdoor displays
- 10000 nits peak brightness keeps content readable in direct sunlight on south-facing facades

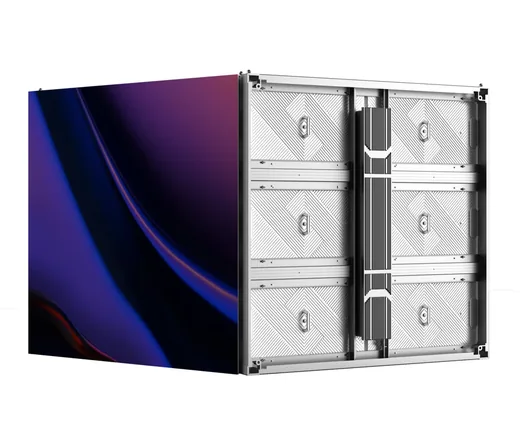

- IP65 on both the front and the rear face, with aviation-grade connectors on the signal and power runs
- 90 degree corner splicing with curved corner parts so right-angle walls close without a visible gap line
Where This Screen Is Used
- Building facade screens on retail and office towers where rear access is impossible
- Roadside DOOH billboards that run daylight content and need sunlight-readable brightness
- Stadium and arena screens exposed to rain and direct sun all year
- Square pillar wraps and naked-eye 3D corner screens in city centre retail districts
- Transport hubs and forecourts where the screen runs unattended for years at a time
Who It Is For
- DOOH media owners running outdoor advertising inventory that has to stay lit all day
- AV system integrators fitting facade screens with no room behind the structure
- Property developers adding a media facade to a retail or mixed-use building
- Municipal and transport authorities specifying long-life outdoor information displays
Problems It Solves
- Rear-service outdoor screens force a costly maintenance corridor behind the wall
- Traditional outdoor cabinets need forced cooling, adding running cost and failure points
- Screens washed out by daylight because peak brightness was specified too low
- Visible seam lines where two walls meet at a right angle on a corner installation
- Water and dust ingress at the rear face when cabinets are only sealed at the front
Technical Features

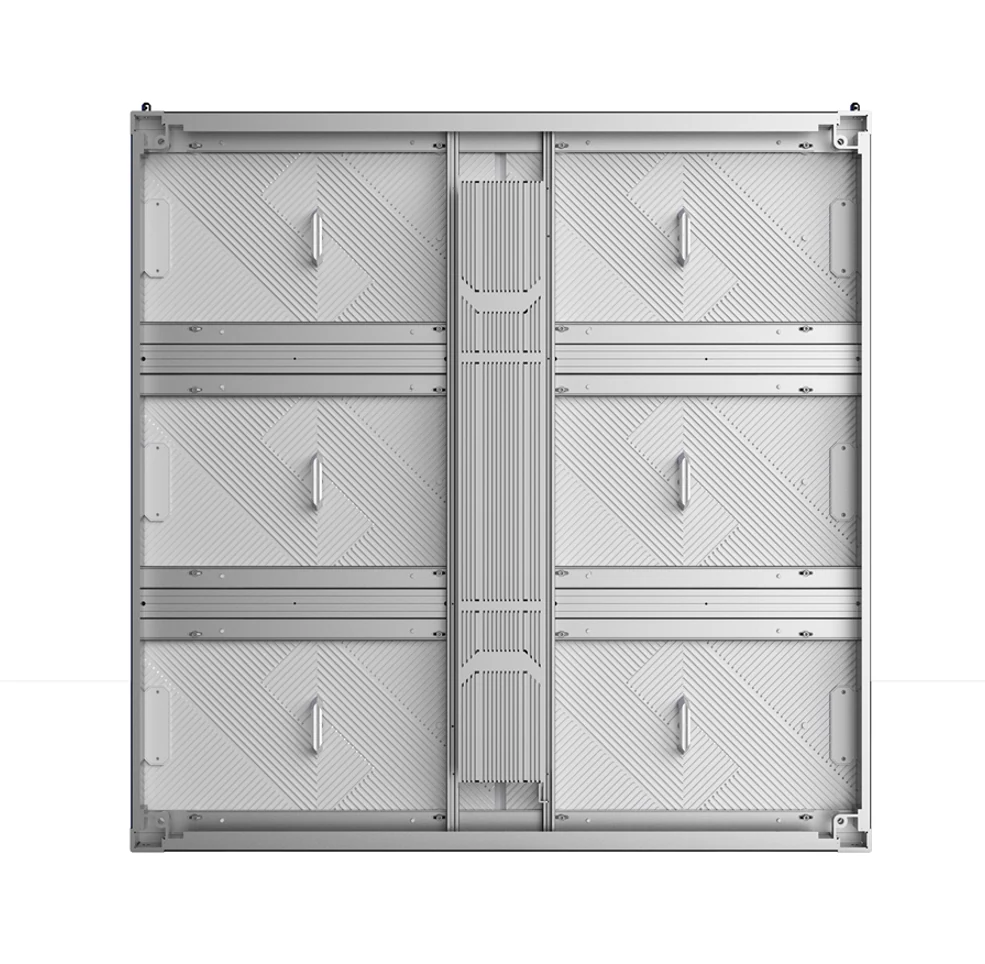

- Full die-cast aluminium chassis shell module with a self-dissipating heat path
- High-strength aluminium profile cabinet, tensile and shockproof, rated for a ten-year service life

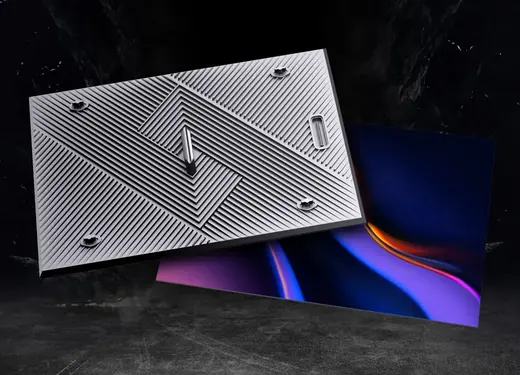

- Outdoor SMD three-in-one lamp with UV-proof encapsulation for wide viewing angles and surface flatness
- RGB deep greyscale processing for colour depth at low brightness settings
- Fast flexible positioning locks so cabinets align without shimming on site
- Fully exposed installation with no cabinet enclosure required
Outdoor Fixed With Front Service Technical Data
| Installation | Outdoor fixed |
|---|---|
| Service Access | Front and rear |
| Cabinet Sizes | 960x640mm, 1440x960mm, 1440x640mm |
| Peak Brightness | Up to 10000 nits |
| Ingress Protection | IP65 front and rear |
| Cabinet Material | High-strength aluminium profile with die-cast aluminium module chassis |
| Lamp Type | Outdoor SMD three-in-one, UV-proof |
| Energy Saving | More than 30 percent against traditional outdoor displays |
| Design Life | Up to ten years |
| Corner Splicing | 90 degrees with curved corner parts |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Die-cast aluminium module chassis shell
- High-strength aluminium profile cabinet frame
- Outdoor SMD three-in-one LED lamps with UV-proof encapsulation
- Professional-grade aviation plug connectors
How This Screen Is Built
- SMT placement of LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly and module flatness alignment on the assembling line
- Full screen installation test and screen ageing test before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to catch early-life lamp and driver failures
- Screen installation test with the cabinets built up as a full wall
- Screen ageing test on the assembled wall before it is dismantled for shipping
Customisation Options
- Cabinet size selected from 960x640mm, 1440x960mm or 1440x640mm to fit the opening
- Corner and pillar cabinets for 90 degree splices and square column wraps
- Brightness and pixel pitch specified to the viewing distance of the site
- Mounting method matched to the structure, fully exposed with no enclosure
How It Compares With the Alternatives
| Rear-service outdoor fixed screen | Front service costs more per cabinet but removes the maintenance corridor, which usually saves more in building area than the cabinet premium |
|---|---|
| Outdoor rental cabinet | The fixed cabinet is heavier and not designed for repeated rigging, but it is sealed and braced for years of permanent outdoor exposure |
| Bright curtain LED screen | The fixed screen gives a solid image at high brightness, while the curtain trades resolution for transparency and much lower weight |
Use Guide
- Set pixel pitch from the closest normal viewing distance rather than from the cabinet count
- Confirm the wall structure can carry the cabinet load before choosing the largest cabinet size
- Leave the front service clearance clear of signage and cladding so modules can be pulled
- Run signal and power on the aviation connectors supplied and keep spare modules on site
- Ask for a screen ageing test at the factory and review the wall in the showroom before shipment
Related Products
Block Series
A rear-serviceable outdoor fixed LED screen with a profile metal cabinet designed for permanent installations on…
View Product →
Outdoor Fixed With High Definition
An outdoor fixed LED screen with high definition and a minimum pixel pitch of 2.5mm, built on a 960x960mm die-ca…
View Product →
Perimeter LED Display Screen
A slim and lightweight perimeter LED display screen with a 960x960mm aluminium die-cast cabinet, designed for bo…
View Product →
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →Guides Related to This Product
Front Service Versus Rear Service LED Screens
Service access is the side of the screen a technician works from when replacing a module, receiving card or power supply…
Read The Guide →Brightness and IP Rating for Outdoor LED Screens
Outdoor LED screens must maintain visibility under direct sunlight. MASTARLED Outdoor Fixed With Front Service reaches u…
Read The Guide →
How an LED Screen Is Made From SMT to Ageing Test
The journey from raw components to a ready-to-ship LED screen begins at the SMT auto line, where high speed SMT machines…
Read The Guide →Questions About the Outdoor Fixed With Front Service
Can the screen be installed flat against a building wall?
Yes. The cabinet is serviced from the front, so modules and power supplies can be pulled without any access space behind the screen.
How bright does this screen get?
Peak brightness reaches 10000 nits, which is specified for direct-sun facade and roadside positions.
Is the rear of the cabinet sealed as well as the front?
Yes. Ingress protection is IP65 on both the front and the rear face, and the power and signal runs use aviation-grade plugs.
Does the screen need air conditioning behind it?
No. The die-cast aluminium module chassis carries heat out on its own, so no cooling enclosure is required.
What cabinet sizes are available?
Standard cabinets are 960x640mm, 1440x960mm and 1440x640mm, and the size is chosen so it divides cleanly into the opening.
Can it turn a right-angle corner without a seam?
Yes. The corner parts are made in a curved shape for 90 degree splicing, so two walls close without a visible gap line.
What pixel pitch should I order?
Send the viewing distance and the wall dimensions on WhatsApp and we will come back with the pitch and cabinet layout that fit.
Quote the Outdoor Fixed With Front Service for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
