Outdoor Fixed With High Definition

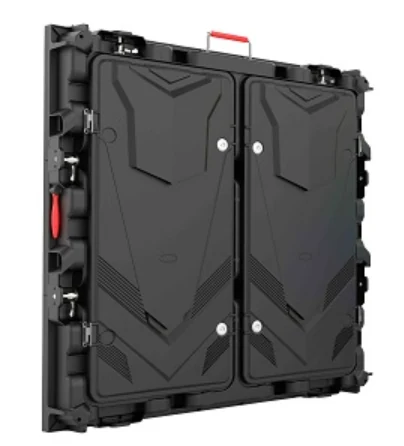

An outdoor fixed LED screen with high definition and a minimum pixel pitch of 2.5mm, built on a 960x960mm die-cast aluminium cabinet. The cabinet is slim and lightweight, weighing only 32kg per square metre.
Outdoor Fixed With High Definition
An outdoor fixed LED screen with high definition and a minimum pixel pitch of 2.5mm, built on a 960x960mm die-cast aluminium cabinet. The cabinet is slim and lightweight, weighing only 32kg per square metre. Designed for permanent outdoor installations with strong adaptability to harsh environments, including salt exposure. The frame has a clean, modern appearance suitable for urban and commercial facades.
- Minimum pixel pitch of 2.5mm delivers high-definition content at close viewing distances
- Slim and lightweight cabinet at 32kg per square metre reduces structural load and shipping cost
- Die-cast aluminium cabinet resists corrosion and performs well in salty coastal or industrial environments
- Clean frame design with no visible seams enhances visual continuity on large facades
- No rear service access required, enabling installation against walls with no maintenance corridor
- High-strength aluminium structure supports long-term outdoor exposure without deformation
Where This Screen Is Used
- Commercial building facades in city centres where high resolution and clean aesthetics are required
- Outdoor advertising displays in coastal or high-salt environments where corrosion resistance is critical
- Retail and shopping mall entrances with permanent digital signage needing high clarity
- Public information displays in transport hubs or urban plazas exposed to weather and salt spray
- Architectural LED walls on high-rise buildings where weight and visual thinness matter
Who It Is For
- AV system integrators installing permanent outdoor LED walls with no rear access
- Property developers specifying high-resolution media facades for commercial buildings
- DOOH media owners deploying long-life outdoor digital advertising in demanding climates
- Municipal authorities installing public-facing information displays in urban environments
- Retail chains requiring high-definition digital signage on storefronts with minimal visual bulk
Problems It Solves
- Low pixel pitch screens that appear grainy at close distances due to oversized modules
- Heavy cabinets that exceed structural load limits on existing building facades
- Cabinets that degrade quickly in salty or humid environments due to poor material choice
- Visible seams and uneven frame lines that break visual continuity on large walls
- Rental-grade cabinets used in fixed installations that lack durability for permanent outdoor use
Technical Features
- 960x960mm die-cast aluminium cabinet with integrated heat dissipation path
- Minimum pixel pitch of 2.5mm for high-definition image clarity at short viewing distances
- Slim profile with a weight of 32kg per square metre for reduced structural demand
- High-strength aluminium frame designed for outdoor exposure and salt resistance
- Sealed cabinet construction with no visible joints for a clean, unified appearance
- No rear service access required, enabling flush mounting against walls
Outdoor Fixed With High Definition Technical Data
| Installation | Outdoor fixed |
|---|---|
| Service Access | Front only |
| Cabinet Size | 960x960mm |
| Pixel Pitch | Minimum 2.5mm |
| Weight per Square Metre | 32kg |
| Cabinet Material | Die-cast aluminium with high-strength aluminium frame |
| Environmental Resistance | Salt and weather resistant |
| Frame Design | Clean, seamless appearance |
| Heat Dissipation | Integrated die-cast aluminium heat path |
| Design Life | Long-term outdoor exposure |
Pixel pitch, resolution and refresh rate are confirmed against your viewing distance and wall size when we quote. Send those two figures and we will return the exact configuration.
Materials
- Die-cast aluminium cabinet shell
- High-strength aluminium frame with salt-resistant coating
- High-definition SMD LED lamps with 2.5mm pixel pitch
- Sealed joints and aviation-grade connectors for outdoor durability
How This Screen Is Built
- SMT placement of LED lamps and driver ICs on the module PCB
- Reflow soldering followed by automated soldering inspection
- Auto drying and module ageing test before assembly
- Cabinet assembly with die-cast aluminium shell and frame alignment
- Full screen installation test and screen ageing test before packing
Quality Control
- Soldering inspection on every module after reflow
- Module ageing test to detect early lamp and driver failures
- Screen installation test with cabinets built as a full wall
- Screen ageing test on the assembled wall before dismantling for shipping
Customisation Options
- Pixel pitch selected based on viewing distance and content type
- Cabinet size adjusted to fit the wall opening, with 960x960mm as standard
- Mounting method matched to the structure, including flush or exposed installation
- Frame finish and colour specified to match the architectural design
- Brightness level tailored to the site’s ambient light conditions
How It Compares With the Alternatives
| Rear-service outdoor fixed screen | Front service eliminates the need for a maintenance corridor, saving space and installation complexity |
|---|---|
| Outdoor rental cabinet | The fixed cabinet is lighter and not designed for repeated rigging, but it is built for permanent outdoor durability |
| Standard 4mm pixel pitch outdoor screen | The 2.5mm pitch delivers higher resolution for closer viewing, but requires more precise alignment during installation |
Use Guide
- Choose pixel pitch based on the closest viewing distance, not the cabinet count
- Confirm the wall structure can support the 32kg per square metre load before installation
- Ensure front service access is clear of obstructions to allow module replacement
- Use the supplied aviation connectors for signal and power to maintain weather resistance
- Request a factory screen ageing test and review the full wall in the in-house showroom before shipment
Related Products
Outdoor Fixed With Front Service
A front and rear serviceable outdoor LED screen built on a die-cast aluminium module chassis, designed for perma…
View Product →
Block Series
A rear-serviceable outdoor fixed LED screen with a profile metal cabinet designed for permanent installations on…
View Product →
Perimeter LED Display Screen
A slim and lightweight perimeter LED display screen with a 960x960mm aluminium die-cast cabinet, designed for bo…
View Product →
Rental LED Screen A Series
A rental LED screen series built for touring and event applications with a slim, lightweight aluminium die-cast …
View Product →
Guides Related to This Product
How to Choose the Pixel Pitch for an LED Screen
Pixel pitch is the distance in millimetres between the centres of two adjacent pixels. It determines the closest viewing…
Read The Guide →Front Service Versus Rear Service LED Screens
Service access is the side of the screen a technician works from when replacing a module, receiving card or power supply…
Read The Guide →Questions About the Outdoor Fixed With High Definition
Can this screen be mounted flat against a wall?
Yes. The cabinet is serviced from the front only, so no rear access is needed, allowing it to be installed flush against a wall.
What is the minimum pixel pitch available?
The minimum pixel pitch is 2.5mm, suitable for high-definition content at close viewing distances.
How much does the cabinet weigh per square metre?
The cabinet weighs 32kg per square metre, making it lightweight for large outdoor installations.
Is the cabinet resistant to salt and humidity?
Yes. The die-cast aluminium and high-strength frame are designed for salt and weather resistance in harsh outdoor environments.
What is the standard cabinet size?
The standard cabinet size is 960x960mm, built on a die-cast aluminium chassis.
Does the screen require rear access for maintenance?
No. The screen is designed for front service only, so no maintenance corridor is needed behind the wall.
Can I adjust the pixel pitch for my project?
Yes. The pixel pitch can be specified based on your viewing distance and content requirements.
Quote the Outdoor Fixed With High Definition for Your Project
Send the wall dimensions and the closest viewing distance. We will confirm the pitch, the cabinet count, the resolution and the shipping weight.
