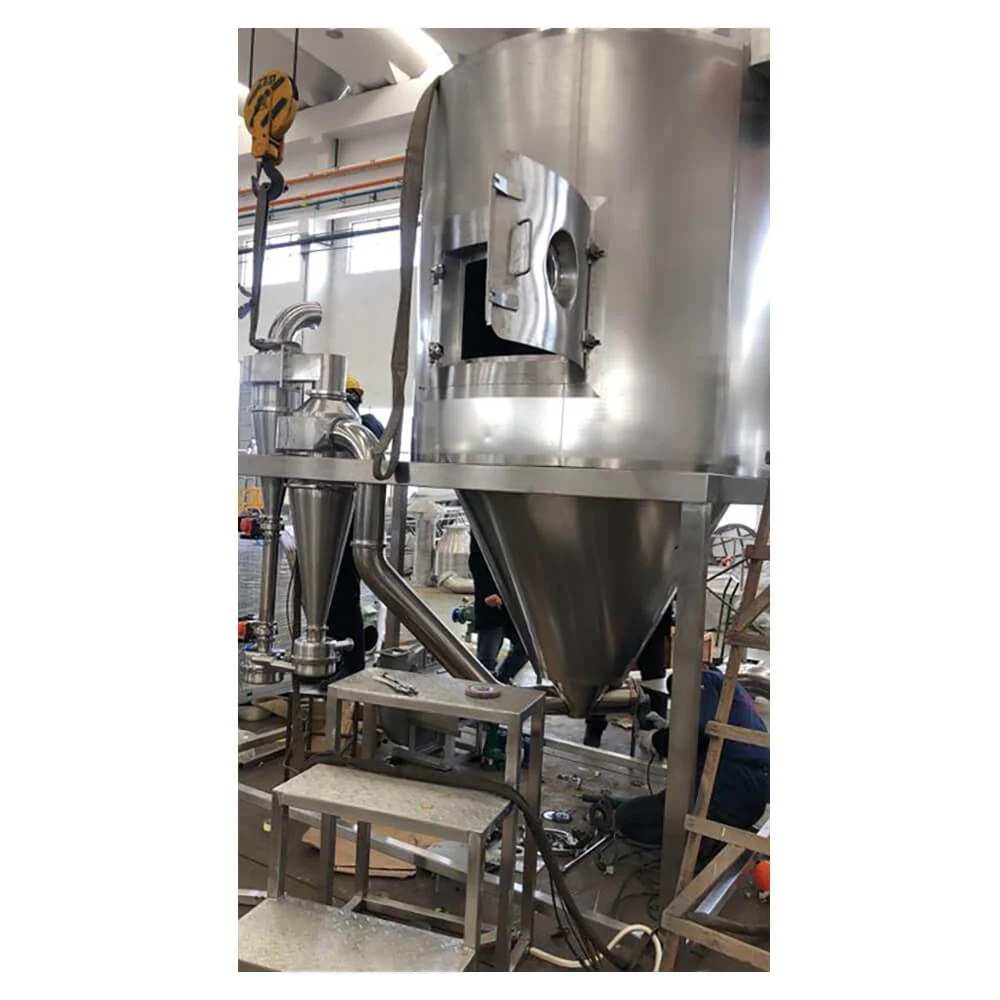

A spray dryer for turning concentrated liquid into powder, used mainly for milk powder and fruit juice powder. The inner cylinder of the drying tower is SUS304 stainless steel mirror plate with a thickness of no less than 2.5mm, the tower body is insulated, and a stainless steel platform, stairs and railings are fitted outside for access. Product contact surfaces are mirror polished to Ra no more than 0.8μm. Product recovery rate is no less than 97% and finished particle size after drying is 80 -120M. Working capacity runs from 1000L/H to 30,000L/H.
Recovery rate of no less than 97% keeps product loss in the tower and cyclones from eating into batch yield
Particle size of 80 -120M after drying gives a consistent powder for packing and reconstitution
Mirror polished product contact surfaces at Ra no more than 0.8μm reduce powder hold up and make cleaning verifiable
Insulated tower body limits heat loss so drying energy goes into the product rather than the building
Platform stairs and railings are supplied so inspection and maintenance access does not need site scaffolding
Powder lost in the tower and recovery system reduces yield on every batch
Inconsistent particle size causes packing and reconstitution problems downstream
Rough internal surfaces hold powder and make cleaning validation difficult
Uninsulated towers waste drying energy and make the surrounding area hot to work in
| Product Model | HTK-GZT-01 |
|---|---|
| Working Capacity | 1000L/H to 30,000L/H customised |
| Material | SUS304 |
| Recovery Rate | No less than 97% |
| Particle Size | 80 -120M |
| Inner Cylinder Thickness | No less than 2.5mm |
| Product Contact Finish | Mirror polished Ra no more than 0.8μm |
| Minimum Order | One unit |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
The evaporator removes water in the liquid phase while the spray dryer produces the finished powder
Mirror polished contact surfaces at Ra no more than 0.8μm reduce powder hold up and make cleaning easier to verify
The spray dryer runs continuously from liquid feed rather than drying a static batch
Boiler
Model HTK-GL-01 is a boiler supplied to beverage and dairy plants where process heat feeds pasteurising, clean...
View Details →
Cooling Tower
Heat rejected by pasteurisers, chillers and compressors has to go somewhere, and model HTK-LQT-01 is the cooli...
View Details →
Air Compressor
Compressed air in a drinks plant touches the product, so model HTK-KYJ-01 is offered as an oil free screw air ...
View Details →
Chilling Unit
Model HTK-C-01 supplies chilled water to beverage and dairy processes where product temperature has to be pull...
View Details →Product recovery rate is no less than 97%.
After spray drying the particle size of the finished product is 80 -120M.
The inner cylinder is SUS304 stainless steel mirror plate with a thickness of no less than 2.5mm, and the tower body is insulated.
The inner surface of the product contact part is mirror polished to Ra no more than 0.8μm and the outer surface is polished.
Yes. A stainless steel platform with stairs and railings is fitted outside the tower.
Manufacturing time depends on capacity and tower configuration and is confirmed in writing with the quotation.
Send the drawing, capacity or duty cycle you need and we will come back with the factory match, the build detail and the commercial terms.
