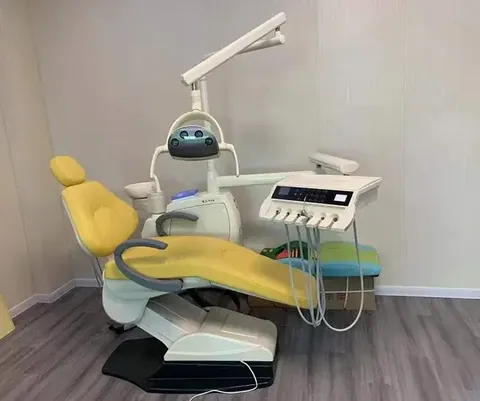

A treatment chair supplied with the service connections and unit fittings a clinic needs to run a full chair side setup: power at AC 220V/50Hz or 110V/160Hz, water pressure of 0.2-0.4 MPa and air pressure of 0.55-0.8 MPa, with air output volume above 55 L/min. The chair carries 2 pcs high speed handpiece tubes, 1 pc low speed handpiece tube and 2 pcs of 3-Way Syringe in cold and hot, a rotatable 90° ceramic or glass spittoon, 3 or 9 memory positions and a 24V D.C. noiseless motor. Cushioning is microfiber or PU leather with armrests and customised logo is available.
Dual voltage of AC 220V/50Hz or 110V/160Hz lets one model be shipped to markets with different mains supply
Memory positions of 3 or 9 let a clinic repeat the same working posture instead of setting the chair each patient
A 24V D.C. noiseless motor keeps chair movement quiet during treatment
Water purification built in or built out lets the clinic follow its own hygiene arrangement
Loading of 16 pcs per 20-feet container and 32 pcs per 40HQ lets a distributor calculate landed cost per chair before ordering
Mains voltage differences between markets often force a second model to be stocked
Chairs without memory positions waste time repositioning between patients
Site services must be known before the compressor and water supply are sized
Container loading figures are needed to work out freight cost per unit
| Power Voltage | AC 220V/50Hz or 110V/160Hz |
|---|---|
| Water Pressure | 0.2-0.4 MPa |
| Air Pressure | 0.55-0.8 MPa |
| Air Output Volume | Above 55 L/min |
| High Speed Handpiece Tube | 2 pcs |
| Low Speed Handpiece Tube | 1 pc |
| 3-Way Syringe | 2 pcs cold and hot |
| Spittoon | Rotatable 90° ceramic or glass |
| Memory Programs | 3 or 9 memory positions |
| Chair Motor | 24V D.C. noiseless motor |

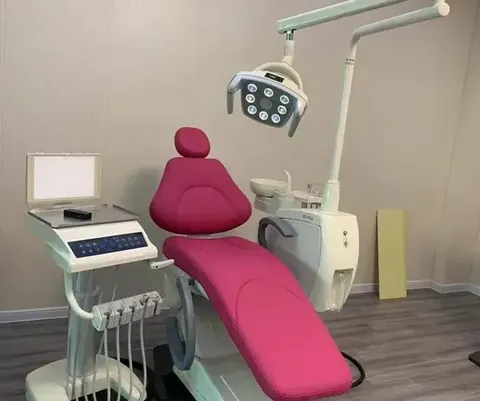

| Cushioning | Microfiber or PU leather with armrests |
| Dimensions | 142cm x 110cm x 120cm |
| Loading Capacity | 16 pcs per 20-feet container and 32 pcs per 40HQ |
Figures shown are taken from the supplying factory documentation. Anything not listed here is confirmed in writing before order.
Rotatable through 90° and easy to clean between patients
An alternative finish on the same rotatable mounting
3 or 9 stored positions remove repeated manual adjustment during a list
The chair is offered for AC 220V/50Hz or 110V/160Hz, so the supply for your market is stated on the order.
Water pressure of 0.2-0.4 MPa and air pressure of 0.55-0.8 MPa are required, with air output volume above 55 L/min.
Yes. Customized logo is available with a minimum order of 3 Sets, and artwork is agreed before production.
Loading is 16 pcs per 20-feet container and 32 pcs per 40HQ, which allows freight per unit to be calculated.
Payments are supported by TT, bank transfer, Alibaba and Western Union, and the agreed method is written on the order.
Sea freight is supported, and the shipping schedule and lead time are confirmed with the quotation.
Send the drawing, capacity or duty cycle you need and we will come back with the factory match, the build detail and the commercial terms.
