Timing Chain Kit
The timing chain keeps the crankshaft and the camshafts in step so the valves open and close at the right moment.
Overview
Timing Chain Kit
The timing chain keeps the crankshaft and the camshafts in step so the valves open and close at the right moment. It is the part an engine cannot run without, and when it stretches the customer hears rattle on cold start before anything else goes wrong. We supply complete kits, not bare chains, so the guides, the tensioner and the sprockets that wear alongside the chain are all replaced in one job.
Key Benefits
- Complete kit content, so the guides and tensioner that wear with the chain are replaced at the same time
- High strength steel alloy chain designed to resist stretching, wear and high mechanical stress
- Anti-corrosion coating applied to extend service life
- Tightly controlled tolerances for a precise fit and quiet running
- Matched by OE number across European, American and Asian engine families
Who It Is For
- Engine parts distributors building a timing range
- Engine rebuilders who replace the chain, guides and tensioner as a set
- Workshops diagnosing timing related misfire and correlation codes
- Exporters consolidating engine parts on one order
Problems It Solves
- Frequent engine misfire caused by timing that has drifted as the chain stretched
- Chain rattle from worn guides and a tensioner that no longer holds pressure
- Timing belts being fitted where a chain application needs the correct chain kit
- Kits that arrive short of a guide or a bolt and stall the job on the ramp
Application Scenarios
- Rattle on cold start traced to a stretched chain and a collapsed tensioner
- Misfire codes and cam correlation faults after the chain has jumped a tooth
- Preventive replacement during a major engine service on a high mileage vehicle
- Distributor stock for engine families where chain wear is a known pattern fault
Engineering
Technical Features
- Synchronises the rotation of the crankshaft and camshafts so the valves open and close correctly on each intake and exhaust stroke
- Typically made from high strength steel alloys, designed to resist stretching, wear and high levels of mechanical stress
- Often treated with anti-corrosion coatings to enhance longevity
- Constructed with tightly controlled tolerances for a precise fit, engineered to operate quietly and smoothly
Materials
- High strength steel alloy for the chain and sprockets
- Anti-corrosion coating on chain links
At a glance
| Kit content | Chain, sprockets, guides and tensioner, content per reference |
|---|---|
| Chain material | High strength steel alloy |
| Coating | Anti-corrosion treatment |
| Matched by | OE number |
| Minimum order | 1 piece |
| Lead time, regular items | 45 days |
Values not present in the source part record are marked TBC and confirmed against your OE number before the order is placed.
Manufacturing
How It Is Made and Checked
Chain link forming and heat treatment
Sprocket machining
Anti-corrosion coating
Kit assembly and content check before packing
Quality Control
Kit content is counted against the reference before the box is sealed, and the company runs to ISO 9001 and IATF 16949 quality management systems.
Customisation Options
Kit content can be adjusted, for example chain and tensioner only, or a full kit with sprockets and bolts. Newly developed references run 30 to 45 days.
Comparison
A timing chain is generally more durable and longer lasting than a rubber timing belt, less prone to failure under high stress, and it does not carry a fixed replacement interval, which reduces maintenance cost over the life of the engine. A belt is quieter and cheaper to replace but must be changed on schedule. Where the engine was built with a chain, fit a chain kit, and replace the guides and tensioner with it.
Use Guide
Step 1
Confirm the OE number and check the kit content list against the reference
Step 2
Set the engine to the timing marks before removing the old chain
Step 3

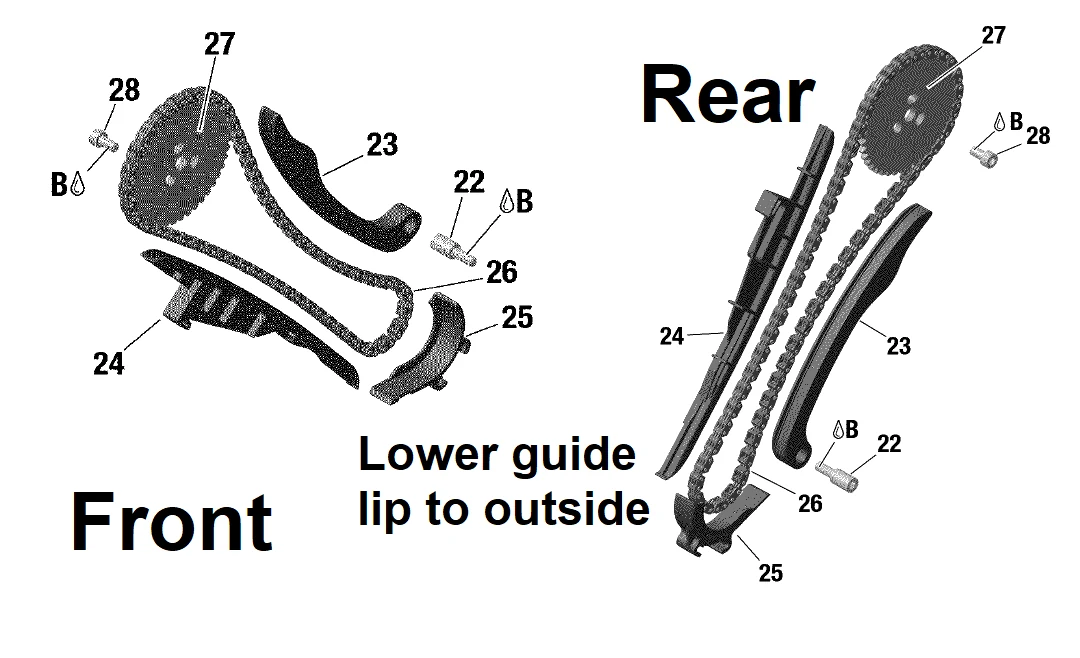

Replace guides and tensioner with the chain rather than reusing them
Step 4
Torque the sprocket and tensioner bolts to the vehicle specification and reset the tensioner correctly
Step 5
Turn the engine over by hand for two full revolutions and recheck the timing marks before starting
Component reference
How a Timing Chain Kit Works
Timing Chain Description

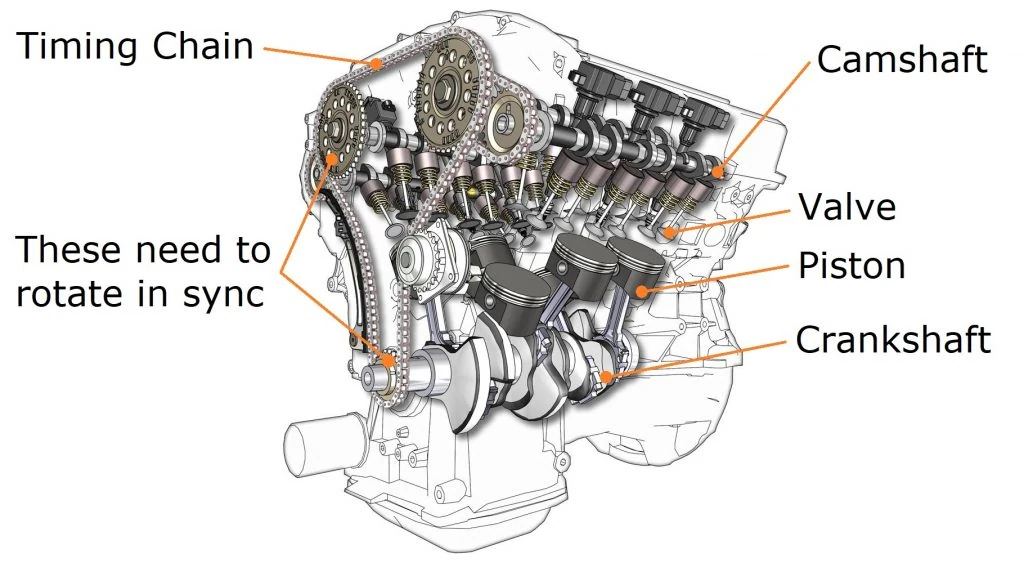

A timing chain is a critical engine component that synchronizes the rotation of the crankshaft and camshaft(s) to ensure that the engine's valves open and close at the correct times during each cylinder's intake and exhaust strokes. This synchronization is essential for the efficient operation of an internal combustion engine, ensuring proper engine timing, power delivery, and overall performance.
Key Characteristics of a Timing Chain:
- Material and Durability: Typically made from high-strength steel alloys. Designed to resist stretching, wear, and high levels of mechanical stress. Often treated with anti-corrosion coatings to enhance longevity.
- Functionality: Ensures precise timing between the crankshaft and camshaft(s). Maintains engine timing accuracy to optimize valve operation and combustion process.
- Advantages Over Timing Belts: Generally more durable and longer-lasting than rubber timing belts. Less prone to failure under high-stress conditions. Does not require regular replacement intervals, reducing maintenance costs.
- Design and Construction: Constructed with tightly controlled tolerances for a precise fit. Engineered to operate quietly and smoothly, minimizing noise and vibration.
- Applications: Used in a wide variety of internal combustion engines, including those in passenger cars, trucks, motorcycles, and high-performance vehicles. Suitable for both original equipment manufacturer (OEM) applications and aftermarket upgrades.
- Maintenance: Requires periodic inspection, especially in high-mileage or high-performance engines. Should be replaced if signs of excessive wear, stretching, or damage are detected to prevent engine timing issues and potential engine damage.
Related products
Often Ordered Together
GM Timing Chain Kit 9-0390S
This is the complete timing chain kit for the GM 2.4 litre twin cam engine used in the Chevrolet Cavalier, Pontiac…
Smart Timing Chain Kit 1600520101
This timing chain kit covers the Mercedes-Benz Smart Cabrio 450 with the 0.6 and 0.7 litre M160 engine, built between…
Crankshaft Pulley
The crankshaft pulley sits at the front of the engine and drives the accessory belt that turns the alternator, the…
FAQ
Timing Chain Kit FAQ
What is in a timing chain kit?

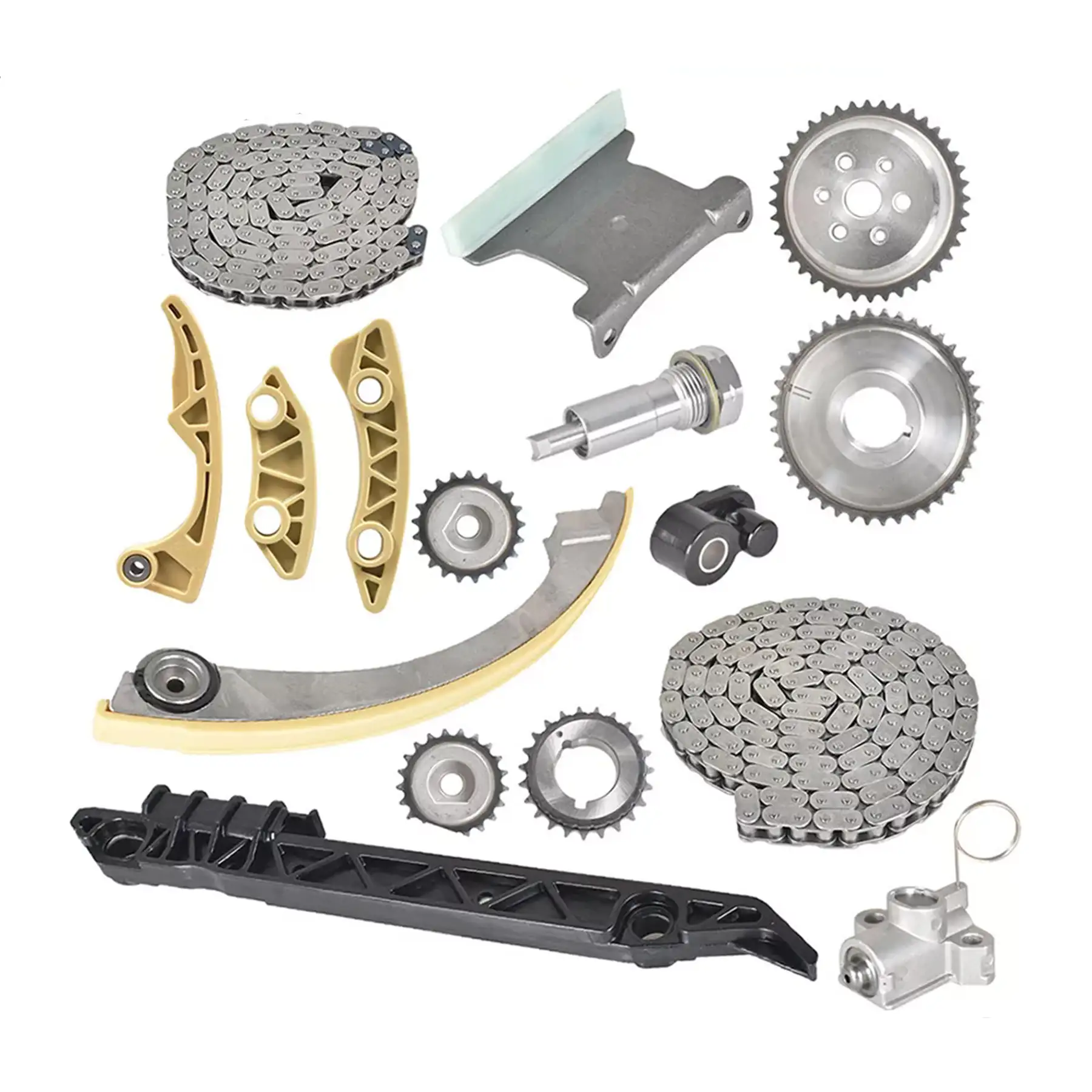

Chain, sprockets, guides and tensioner. Exact content varies by reference and is confirmed in the quotation.
Should I replace the guides and tensioner with the chain?
Yes. They wear with the chain, and reusing them is the most common reason a fresh chain rattles again within months.
Do timing chains need replacing on a schedule?
Not on a fixed interval like a belt, but they need periodic inspection, especially on high mileage or high performance engines, and replacement once stretching or wear shows.
Can you match a kit from an OE number?
Yes. Send the OE number and we return the interchange references and the applications covered.
What is the minimum order?
One piece.
How long is the lead time?
45 days for regular items and 30 to 45 days for a newly developed kit.
