Smart Cabrio Timing Chain Kit 1600520101
This timing chain kit covers the Mercedes-Benz Smart Cabrio 450 with the 0.6 and 0.7 litre M160 engine, built between March 2000 and January 2004.
Overview
Smart Timing Chain Kit 1600520101
This timing chain kit covers the Mercedes-Benz Smart Cabrio 450 with the 0.6 and 0.7 litre M160 engine, built between March 2000 and January 2004. Unusually for a kit, every component in it carries its own OE number, so the chain, the tensioner, both guides and both gears can each be verified against the Mercedes-Benz and Smart parts systems before the order is placed.
Key Benefits
- Every kit component listed with its own Mercedes-Benz and Smart OE number
- Gear tooth counts stated: 42 tooth and 21 tooth
- 110 link chain specified by length rather than by description
- Six Mercedes-Benz and three Smart references cross referenced
- 1 piece minimum order
Who It Is For
- Distributors covering Smart and Mercedes-Benz small engine parts
- Workshops specialising in the Smart 450
- Exporters into European markets with a Smart parc
- Buyers who need to verify each kit component against an OE system
Problems It Solves
- Kits sold with no component level part numbers to check against
- Two guides that look similar and carry different numbers
- Gear tooth counts that are easy to get wrong on a small engine
- Sourcing a kit for a platform that is now outside mainstream catalogues
Application Scenarios
- Smart Cabrio 450 chain rattle on a car that has stood for long periods
- Timing fault on the M160 engine where individual kit parts need verifying
- Restoration or recommissioning of an early Cabrio 450
- Distributor stock for the Smart 450 platform
Engineering
Technical Features
- Timing chain 1609970494, 1 piece by 110 links
- Tensioner 1600500211, Smart reference 0003051V003000000
- Timing guide 1 is 1600520016, Smart reference 0003050V001000000
- Timing guide 2 is 1600520116, Smart reference 0003049V001000000
- Gear 1 is 1600520101 with 42 teeth, gear 2 is 1600520103 with 21 teeth
- Applications cover Cabrio 450 0.6 M160.920 599cc in 40, 45 and 52 kW forms and 0.7 M160.910 698cc in 40, 45 and 55 kW forms
Materials
- High strength steel alloy chain and gears
- Anti-corrosion coating
At a glance
| Primary OE number | 1600520101 |
|---|---|
| Chain | 1609970494, 1 piece, 110 links |
| Tensioner | 1600500211 |
| Guide 1 | 1600520016 |
| Guide 2 | 1600520116 |
| Gear 1 | 1600520101, 42 teeth |
| Gear 2 | 1600520103, 21 teeth |
| Applications | Smart Cabrio 450 0.6 and 0.7, March 2000 to January 2004 |
| Minimum order | 1 piece |
| Lead time, regular items | 45 days |
Values not present in the source part record are marked TBC and confirmed against your OE number before the order is placed.
Reference data
Numbers and Applications From the Source Catalogue
Everything in this section is taken from the published part record. Where a value is not in that record it is marked TBC rather than estimated.
OE and Interchange Numbers
- MERCEDES-BENZ: 1600520103
- MERCEDES-BENZ: 1600520101
- MERCEDES-BENZ: 1600520116
- MERCEDES-BENZ: 1609970494
- MERCEDES-BENZ: 1600500211
- MERCEDES-BENZ: 1600520016
- SMART: 0003050V001000000
- SMART: 0003049V001000000
- SMART:0003051V003000000
Kit Content
- Timing Chain: 1609970494, 1pcs x 110L
- Tensioner: 1600500211,0003051V003000000
- Timing Guide1: 1600520016,0003050V001000000
- Timing Guide2: 1600520116, 0003049V001000000
- Gear 1: 1600520101, 42T
- Gear 2: 1600520103, 21T
Vehicle Applications (7 listed)
- SMART CABRIO (450) (2000/03 - 2004/01)
- CABRIO (450) 0.6 (S1OLA1, 450.441, 450.442, 450.443) M 160.920 599 40 55 Convertible 00/03 - 04/01
- CABRIO (450) 0.6 (S1OLD2, 450.452) M 160.920 599 45 61 Convertible 01/01 - 04/01
- CABRIO (450) 0.6 (450.432) M 160.920 599 52 71 Convertible 02/06 - 04/01
- CABRIO (450) 0.7 (450.452, 450.432) M 160.910 698 45 61 Convertible 03/01 - 04/01
- CABRIO (450) 0.7 (450.433) M 160.910 698 55 75 Convertible 03/01 - 04/01
- CABRIO (450) 0.7 (450.441, 450.442, 450.443) M 160.910 698 40 54 Convertible 01/01 - 03/01
Manufacturing
How It Is Made and Checked
Chain link forming and heat treatment
Gear machining to tooth count
Anti-corrosion coating
Kit content count and packing
Quality Control
Each component is checked against its own OE number before the kit is packed. The company runs to ISO 9001 and IATF 16949 quality management systems.
Customisation Options
Individual components can be supplied separately against their own OE numbers. Newly developed references run 30 to 45 days.
Comparison
Most kits are sold under one number and you find out what is inside when the box is open. This one lists a part number for the chain, the tensioner, both guides and both gears, which lets a buyer verify the content against Mercedes-Benz and Smart systems before committing, and lets a workshop order a single guide rather than a whole kit.
Use Guide
Step 1
Confirm the engine, 0.6 M160.920 or 0.7 M160.910, and the build date range
Step 2
Check each component number in the kit against the list on this page
Step 3
Set the engine to its timing marks before removing the old chain
Step 4
Fit both guides and the tensioner with the new chain
Step 5
Confirm the 42 and 21 tooth gears are on the correct shafts before turning the engine over
Component reference
How a Smart Timing Chain Kit 1600520101 Works
Timing Chain Kit 1600520101 for MERCEDES-BENZ SMART CABRIO 0.6,0.7 2000-2004
MERCEDES-BENZ: 1600520103
MERCEDES-BENZ: 1600520101
MERCEDES-BENZ: 1600520116
MERCEDES-BENZ: 1609970494
MERCEDES-BENZ: 1600500211
MERCEDES-BENZ: 1600520016
SMART: 0003050V001000000
SMART: 0003049V001000000
SMART:0003051V003000000 Timing Chain Kit including: Timing Chain: 1609970494, 1pcs x 110L
Tensioner: 1600500211,0003051V003000000
Timing Guide1: 1600520016,0003050V001000000
Timing Guide2: 1600520116, 0003049V001000000
Gear 1: 1600520101, 42T
Gear 2: 1600520103, 21T
Timing Chain Kit used on: SMART CABRIO (450) (2000/03 - 2004/01) CABRIO (450) 0.6 (S1OLA1, 450.441, 450.442, 450.443) M 160.920 599 40 55 Convertible 00/03 - 04/01
CABRIO (450) 0.6 (S1OLD2, 450.452) M 160.920 599 45 61 Convertible 01/01 - 04/01
CABRIO (450) 0.6 (450.432) M 160.920 599 52 71 Convertible 02/06 - 04/01
CABRIO (450) 0.7 (450.452, 450.432) M 160.910 698 45 61 Convertible 03/01 - 04/01
CABRIO (450) 0.7 (450.433) M 160.910 698 55 75 Convertible 03/01 - 04/01
CABRIO (450) 0.7 (450.441, 450.442, 450.443) M 160.910 698 40 54 Convertible 01/01 - 03/01
Related products
Often Ordered Together
Timing Chain Kit
The timing chain keeps the crankshaft and the camshafts in step so the valves open and close at the right moment. It…

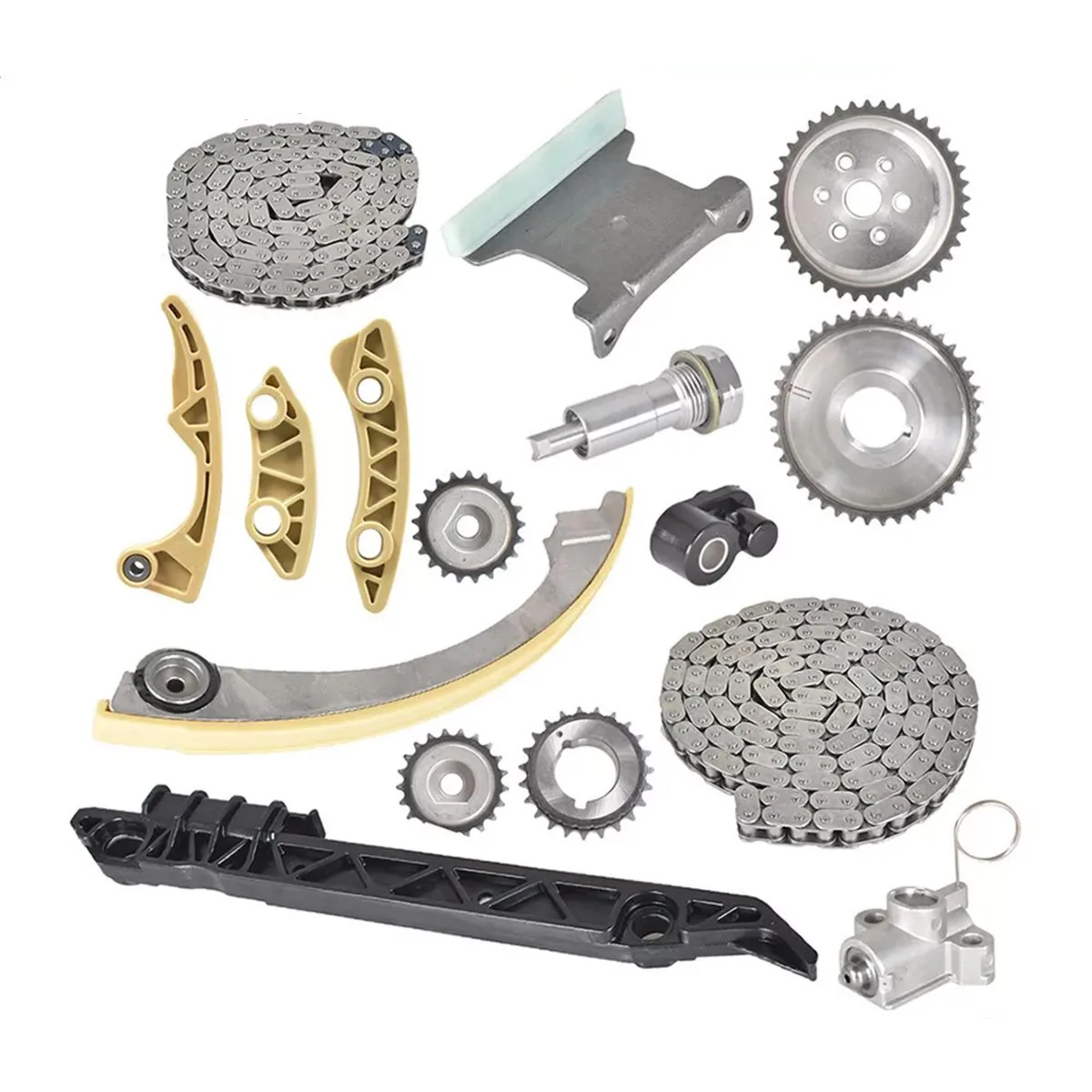

GM Timing Chain Kit 9-0390S
This is the complete timing chain kit for the GM 2.4 litre twin cam engine used in the Chevrolet Cavalier, Pontiac…
Crankshaft Pulley
The crankshaft pulley sits at the front of the engine and drives the accessory belt that turns the alternator, the…
FAQ
Smart Timing Chain Kit 1600520101 FAQ
Which Smart models does this kit cover?
Smart Cabrio 450 0.6 and 0.7 built between March 2000 and January 2004, in the 450.432, 450.433, 450.441, 450.442, 450.443 and 450.452 variants listed.
Can I buy just one guide?
Yes. Each component carries its own OE number, so individual parts can be quoted.
How long is the chain?
110 links, supplied as one piece under reference 1609970494.
What are the gear tooth counts?
Gear 1, reference 1600520101, has 42 teeth. Gear 2, reference 1600520103, has 21 teeth.
What is the minimum order?
One piece.
How long is the lead time?
45 days for regular items.
