Dust Clean Machine

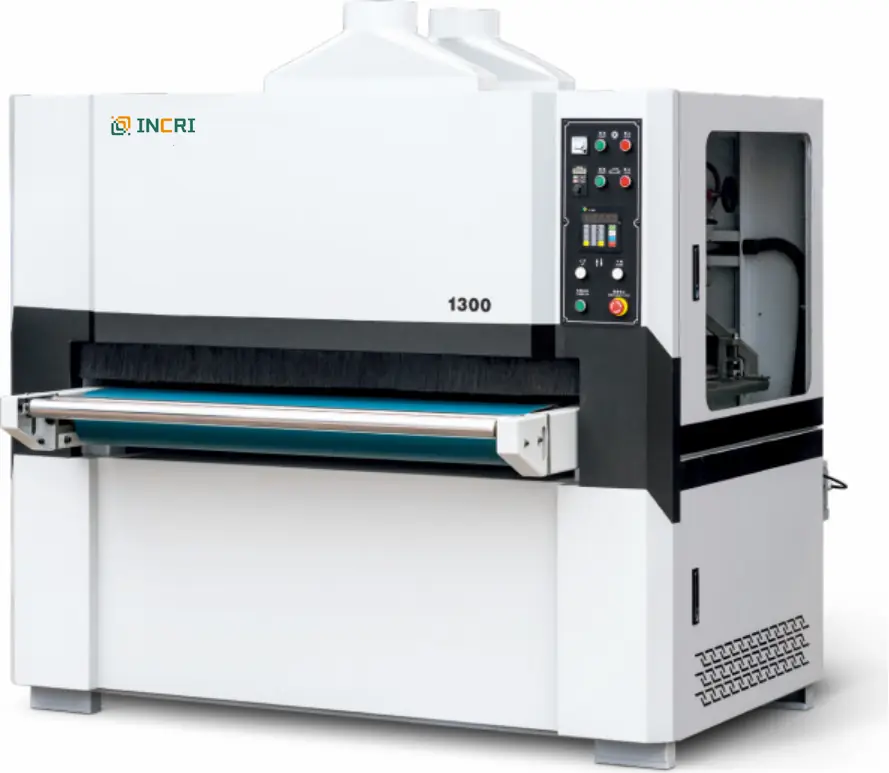

Automatic line Cleaning Machine dust clean machine 1300mm
In line double surface cleaner for panels from 10 to 1300 mm wide. The 1300 mm automatic line configuration, for in line cleaning between machines.
Product Overview
Automatic Line Dust Cleaning Machine For 1300 Mm Automatic Line Cleaning
The 1300 mm automatic line configuration, for in line cleaning between machines.
The ICCC1300S is the in line version of the dust cleaning machine, built to sit inside an automatic finishing line. It handles panel widths from 10 mm up to 1300 mm and thicknesses from 5 to 100 mm at a feed of 0-18 m per minute, on a single 2.25 kW motor.
ICCC1300S
Key Benefits
What This Machine Changes On Your Floor
1
2.25 kW single motor keeps running cost low for a continuous line
2
Minimum processing length of 400 mm suits component work
3
Processing width from 10 mm to 1300 mm covers narrow mouldings and full panels
4
Thickness range to 100 mm takes thicker door and worktop components
Who It Is For
Plants That Buy This Machine
- Plants running both narrow mouldings and full panels
- Door plants handling components thicker than 90 mm
- Automatic finishing lines cleaning in line rather than off line
Problems It Solves
What It Removes From Your Process
- The line stops while panels are dedusted off line
- Thick components above 90 mm will not pass the standard machine
- Narrow parts fall between the rollers of a standard cleaner
Application Scenarios
Typical Jobs It Runs
Cleaning narrow profile stock before a profile spraying machine
Dedusting thick door components in a continuous line
In line cleaning between a sander and a spray booth
Technical Features
How It Is Built
- Minimum processing length 400 mm
- Single 2.25 kW motor
- Double surface brush cleaning in an in line frame
- Processing width from 10 mm to 1300 mm
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Model | ICCC1300S |
| Processing Width | 10-1300mm |
| Processing Thickness | 5-100mm |
| Min.Processing Length | 400mm |
| Feeding Speed | 0-18m/min |
| Motor Power | 2.25kw |
| Dimension(Length x Width x Height) | 1900mm*2400*1800mm |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Narrow part transfer tested at the 10 mm minimum width
- Brush contact checked on both faces
- Feed speed verified across the 0-18 m/min range
Customisation Options
Specified Per Order
- Infeed and outfeed heights matched to your line
- Brush grade selected for your dust load
- Extraction connection sized to your fan
Comparison
How It Compares With The Alternatives
vs ICCC600 / ICCC1000 / ICCC1300 standalone
The line version takes parts from 10 mm wide and up to 100 mm thick, where the standalone machines start at full panel work
Use Guide
Setting The Machine Up For A Run
Set infeed height to match the conveyor before it
Check the narrowest part you run passes without tipping
Run extraction continuously while the line is fed
Related Machines
dust clean machine surface dust cleaning machine for MDF solid wood
Brush and blow unit that takes sanding dust off the panel before coating. Built to order.
View Machine Data →
180 degree Curve return line Machine Return production Line for woodworking
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
woodworking panel Automatic Spraying line UV PU paint primer coating top
Full spray line that replaces 8 to 12 painting workers with a crew of three. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for 1300 mm automatic line cleaning?
Yes. The 1300 mm automatic line configuration, for in line cleaning between machines. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How thick a component can it take?
5 to 100 mm.
What is the minimum length?
400 mm.
What is the motor power?
2.25 kW.
What feed speed does it run at?
0 to 18 m per minute.
What is the narrowest part it can clean?
Processing width starts at 10 mm.
Ask For A Quotation On The Automatic Line Cleaning Machine Dust Clean Machine 1300mm
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
