woodworking panel Automatic Spraying line UV PU paint
Full spray line that replaces 8 to 12 painting workers with a crew of three. Built to order.
View Machine Data →
Automatic Spraying Line
woodworking panel Automatic Spraying line UV PU paint primer coating top
Full spray line that replaces 8 to 12 painting workers with a crew of three. Configured for a full UV or PU primer and top coat sequence.
Product Overview
Automatic Spraying Line For Uv Pu Primer And Top Coat
Configured for a full UV or PU primer and top coat sequence.

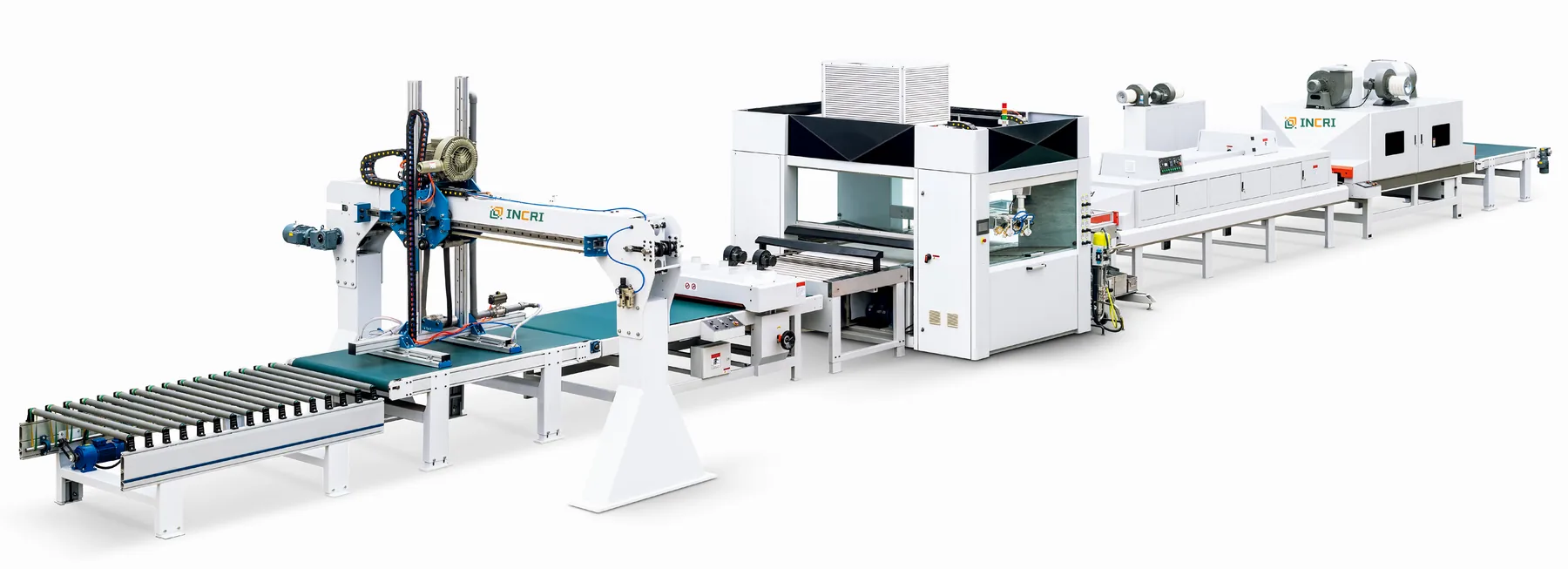

A complete automatic spraying line for primer and top coat on irregular shaped wood doors and kitchen cupboard fronts. The whole line replaces 8 to 12 painting workers and is run by three people. It takes UV, water based and PU paint, runs at 3-6 m per minute, needs a minimum 200 kW supply and occupies an 8 x 45 m working area.
Primer and top coat configurationPrimer only configuration
Key Benefits
What This Machine Changes On Your Floor
1
Three operators run the line
2
Primer and top coat on irregular shaped doors and cupboard fronts in one line
3
UV, water based and PU paints all available
4
Consistent finish from the first door of the shift to the last
5
The whole spraying line replaces 8 to 12 painting workers
Who It Is For
Plants That Buy This Machine
- Factories struggling to recruit and keep skilled sprayers
- Producers of shaped fronts scaling up output
- Door and cupboard plants with a large manual spray shop
Problems It Solves
What It Removes From Your Process
- Finish quality changes with whoever is holding the gun that day
- Shaped fronts cannot be flat line coated and manual spraying caps output
- A spray shop needs a dozen painters and the skilled ones are hard to keep
Application Scenarios
Typical Jobs It Runs
Complete spray finishing of moulded interior doors
Water based finishing line for shaped furniture parts
Primer and top coat on routed kitchen cupboard doors at volume
Technical Features
How It Is Built

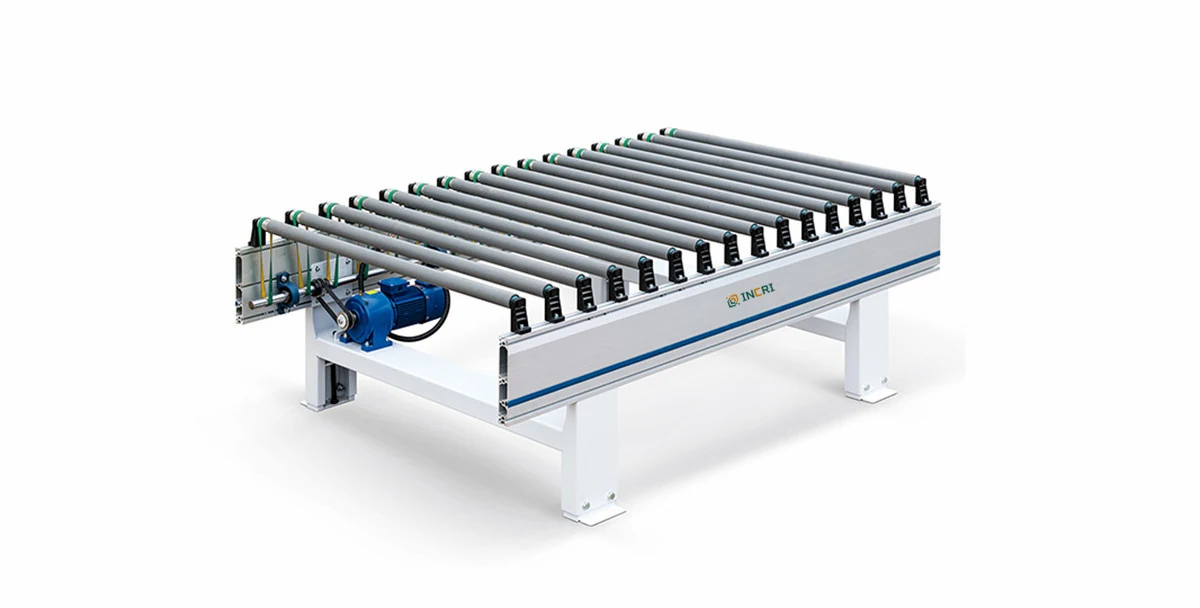

- Automatic conveying through every station
- Complete line covering primer and top coat
- Designed for irregular shaped wood door and kitchen cupboard work
- UV, water based and PU paint compatible
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Labour replaced | 8-12 painting workers |
| Workers needed | 3 persons |
| Line speed | 3-6 m/min |
| Minimum power | 200 kW |
| Working area | 8 x 45 m |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Whole line commissioned and run with sample doors
- Spray coverage checked on shaped profiles at each station
- Conveyor synchronisation verified station to station
Customisation Options
Specified Per Order
- Line length and station count set to your output target
- Paint system specified for UV, PU or water based
- Working area adapted to your building
Comparison
How It Compares With The Alternatives
vs Profile spraying machine line
The profile line fits a 6 x 18 m area on 70 kW. This line is longer at 8 x 45 m and covers a fuller primer and top coat sequence
vs Manual spray shop
Eight to twelve painters replaced by a crew of three, with the finish no longer depending on who is on shift
Use Guide
Setting The Machine Up For A Run
Confirm an 8 x 45 m area and a 200 kW supply are available
Plan the line layout with our engineers before building work
Set each spray station for its coat in the sequence
Run sample doors and fix them as the quality standard
Related Machines
180 degree Curve return line Machine Return production Line for woodworking
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
Back Coating Machine For solid wood floor Back Coating Equipment
Seals the underside of solid wood flooring so boards stop cupping in service. Built to order.
View Machine Data →
Woodworking Cabinet Door Automatic Brush Polishing Sanding Machine Provided Furniture Factory
Disc brush sander that reaches into raised panel profiles and routed grooves. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for UV PU primer and top coat?
Yes. Configured for a full UV or PU primer and top coat sequence. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
How many people are needed to run it?
Three.
What line speed does it run at?
3 to 6 m per minute.
What is the power requirement?
A minimum of 200 kW.
How much floor space does it need?
A working area of 8 x 45 m.
What paints can it apply?
UV paint, water based paint and PU, for both primer and top coat.
How many painters does the line replace?
The whole spraying line can replace 8 to 12 painting workers.
Ask For A Quotation On The Woodworking Panel Automatic Spraying Line UV PU Paint Primer Coating Top
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
