dust clean machine surface dust cleaning machine for MDF solid wood
Brush and blow unit that takes sanding dust off the panel before coating. The 1300 mm standalone configuration for MDF and solid wood board.
Product Overview

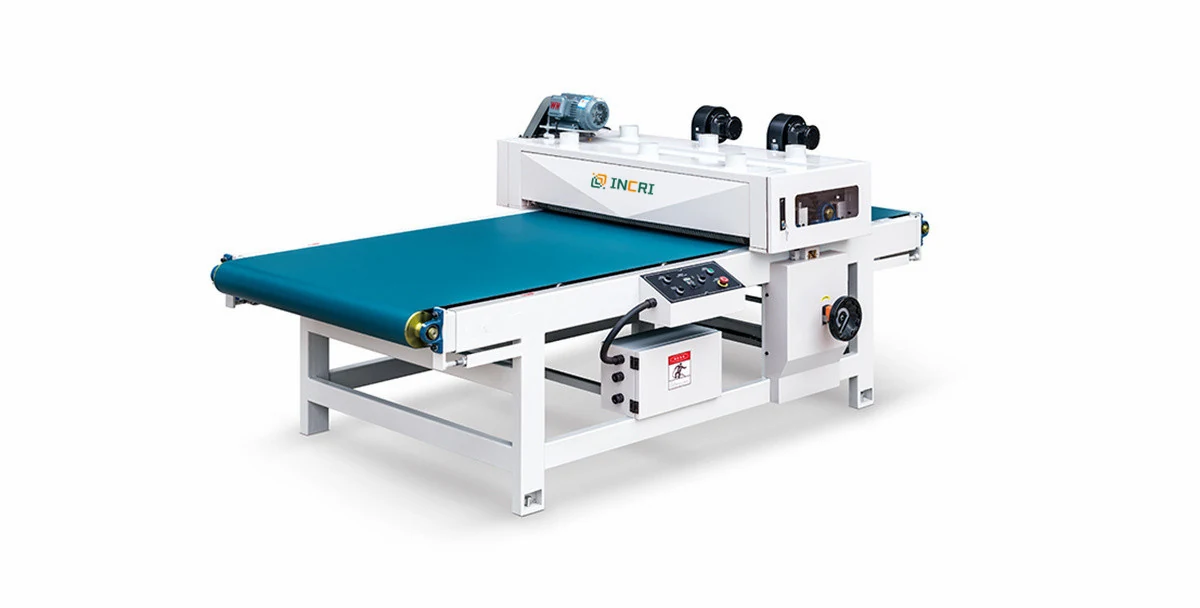

Dust Clean Machine For Mdf And Solid Wood Board Cleaning At 1300 Mm
The 1300 mm standalone configuration for MDF and solid wood board.
A dust cleaning machine that removes dust from the panel surface before coating or after sanding, for flooring, furniture and wood doors. Double brush rollers lift the dust and a blower carries it away, so the coating that follows has a clean surface to bond to. Widths are 600, 1000 and 1300 mm at 1.84-3.34 kW.
ICCC600ICCC1000ICCC1300ICCC1300S automatic line version
Key Benefits
What This Machine Changes On Your Floor
1
Double brush rollers plus a strong blower lift and remove the dust
2
A clean surface before coating means fewer nibs to sand out afterwards
3
Low connected load at 1.84 to 3.34 kW
4
Feeds at 0-20 m per minute so it keeps pace with a coating line
Who It Is For
Plants That Buy This Machine
- Coating lines where nibs are a recurring quality complaint
- Flooring and door plants cleaning after a sanding stage
- Any line feeding a curtain or roller coater
Problems It Solves
What It Removes From Your Process
- Nibs in the cured top coat trace back to sanding dust left on the panel
- Compressed air blow off just moves dust around the workshop
- Panels are wiped by hand, which is slow and leaves fibres behind
Application Scenarios
Typical Jobs It Runs
Cleaning panels between a wide belt sander and a roller coater
Dedusting door leaves before a spray booth
Double surface cleaning for panels coated on both faces
Technical Features
How It Is Built
- Double dust clean brush rollers with a strong blower
- Imported motor and inverter for smooth transfer
- Three working widths sharing a common frame
- Double surface cleaning version available
Specifications
Technical Data
| Parameter | ICCC600 | ICCC1000 | ICCC1300 |
|---|---|---|---|
| Max. Processing Width | 600mm | 1000mm | 1300mm |
| Processing Thickness | 2-90mm | 2-90mm | 2-90mm |
| Feeding Speed | 0-20m/min | 0-20m/min | 0-20m/min |
| Feeding Power | 0.75kw | 1.5kw | 1.5kw |
| Brush Roller Power | 0.75kw | 1.5kw | 1.5kw |
| Fan Power | 0.33kw*2 | 0.33kw*2 | 0.33kw*2 |
| TTotal Power | 1.84kw | 3.34kw | 3.34kw |
| Dimension(L x W x H)mm | 2520*1260*1260 | 3250*1650*1500 | 3250*1950*1500 |
| Net Weight | 650kg | 750kg | 900kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Brush contact set across the full working width
- Blower airflow checked at both fans
- Test panels inspected for residual dust before coating
Customisation Options
Specified Per Order
- 600, 1000 or 1300 mm working width
- Single or double surface cleaning
- Extraction connection to your workshop system
Comparison
How It Compares With The Alternatives
vs Compressed air blow off
Brushing lifts dust out of the grain before the blower removes it, instead of pushing it across the panel
vs Hand wiping with a tack cloth
The machine keeps pace with the coater at 0-20 m per minute and does not leave fibres
Use Guide
Setting The Machine Up For A Run
Place the machine immediately before the coater in the line
Set brush contact so the bristles touch the surface without dragging
Run extraction before feeding the first panel
Inspect a panel under raking light to confirm the surface is clean
Related Machines
Roller conveyor machine for wood door floor production conveyor machine
Rubber roller link conveyor for loading and unloading at the ends of a line. Built to order.
View Machine Data →
Flat belt series belt conveyor Belt conveyor machine
Flat belt link conveyor for connecting machines and supporting small parts. Built to order.
View Machine Data →
Flat belt series belt conveyor for wooden door factory
Flat belt link conveyor for connecting machines and supporting small parts. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for MDF and solid wood board cleaning at 1300 mm?
Yes. The 1300 mm standalone configuration for MDF and solid wood board. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
What panel thickness does it take?
2 to 90 mm on the ICCC series, and 5 to 100 mm on the ICCC1300S line version.
What is the feed speed?
0 to 20 m per minute, and 0 to 18 m per minute on the ICCC1300S.
Where in the line does it go?
Immediately before coating, or straight after the sander.
Can it clean both faces?
An automatic double surface dust cleaning version is available.
What is the total power?
1.84 kW at 600 mm and 3.34 kW at 1000 and 1300 mm.
Ask For A Quotation On The Dust Clean Machine Surface Dust Cleaning Machine for MDF Solid Wood
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
