Curve return line Machine Return production Line for Edge Bander Machine
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
Automatic Machine

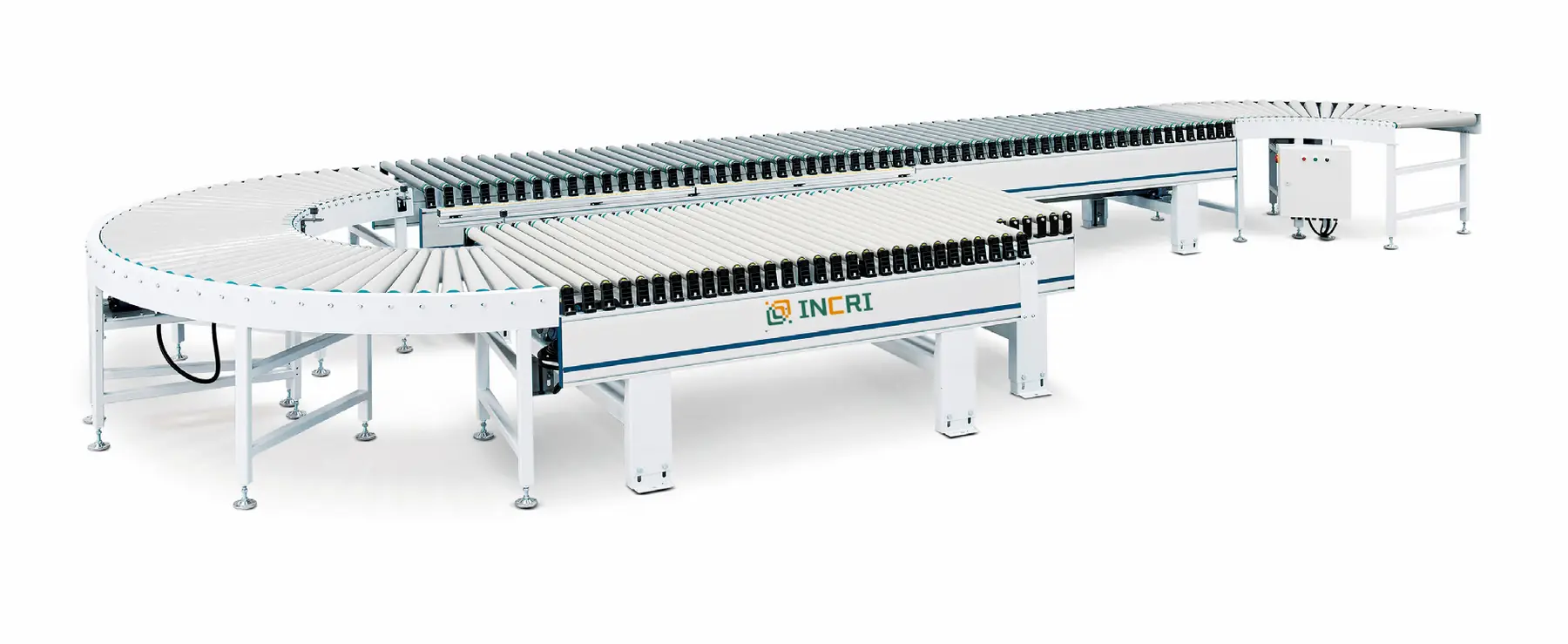

180 degree Curve return line Machine Return production Line for woodworking
90 and 180 degree return table that sends the panel back to the operator. The 180 degree return build, which sends the board back along the same aisle.
Product Overview
Curve Return Line Machine For 180 Degree Return For Woodworking Board
The 180 degree return build, which sends the board back along the same aisle.
A curve return line machine turns and returns panels automatically so a single operator can load and unload at the same station. The 90 and 180 degree steering allows flexible line combinations, and rubber coated rollers protect the panel face. The ICFH-13300 handles panels 250-2440 mm long and 250-1220 mm wide at 16-24 m per minute on 5.25 kW.
90 degree return180 degree returnWith power roller table
Key Benefits
What This Machine Changes On Your Floor
1
Single operator handling, which is where the labour saving comes from
2
Automatic connection between single machines in a line
3
Automatic unloading and rotation of the panel with no manual carry back
4
90 and 180 degree steering permits flexible line combinations
5
Rubber coated rollers protect the panel face
Who It Is For
Plants That Buy This Machine
- Edge banding lines that need the panel returned to the operator
- Panel plants folding a line into a limited floor area
- Plants reducing headcount per machine
Problems It Solves
What It Removes From Your Process
- Two operators are tied to one machine because the panel comes out at the far end
- Panels are carried back by hand and the faces get marked
- The line layout cannot fold back on itself in the available floor space
Application Scenarios
Typical Jobs It Runs
Returning panels from an edge bander to the loading operator
Turning panels 90 degrees between two machines in a line
Building a U shaped line inside a short workshop
Technical Features
How It Is Built
- Automatic connection of single equipment in a line
- Power roller table combination available to requirement
- Automatic steering and reflux of the panel
- 90 and 180 degree steering for flexible combinations
- Rubber coated rollers to protect the panel
Specifications
Technical Data
| Parameter | Value |
|---|---|
| Model | ICFH-13300 |
| Equipment size | 13300X3650X900 |
| Panel length | 250-2440mm |
| Panel width | 250-1220mm |
| Panel Thickness | 10-60mm |
| Maximum panel weight | 60kg |
| Linear velocity | 16-24m/min |
| Total power | 5.25kw |
| Weight | 1800kg |
All machines can be customised to the buyer's requirement. Figures are the published data for this model series.
Quality Control
Checked Before It Leaves The Floor
- Steering accuracy checked at both 90 and 180 degrees
- Roller coating inspected for panel protection
- Line speed verified across the 16-24 m/min range
Customisation Options
Specified Per Order
- 90 or 180 degree steering
- Overall length set for your line layout
- Combination with a power roller table
Comparison
How It Compares With The Alternatives
vs Manual carry back
The return line removes the second operator and stops panel faces being marked in transit
vs Straight through line
Returning the panel to the loading point lets one person load and unload, and folds the line into less floor area
Use Guide
Setting The Machine Up For A Run
Set the return angle to suit your line layout
Check panel weight is within the 60 kg limit
Set linear velocity to match the machine it serves
Confirm panel size falls inside 250-2440 by 250-1220 mm
Related Machines
Curve return line Machine Return Line Automatic
90 and 180 degree return table that sends the panel back to the operator. Built to order.
View Machine Data →
Wooden Door Series-Powered Roller Conveyor with Translation Device power conveyor roller
Powered transfer table that moves panels 90 degrees between two machines. Built to order.
View Machine Data →
Powered Conveyor Transfer Roller table power translation roller table
Powered transfer table that moves panels 90 degrees between two machines. Built to order.
View Machine Data →
Questions About This Machine
Is this model set up for 180 degree return for woodworking board?
Yes. The 180 degree return build, which sends the board back along the same aisle. Every machine is built to order, so the configuration is confirmed against your own panel size and coating system before production.
Can it turn 90 degrees as well as 180?
Yes, both angles are available and can be combined flexibly.
How much power does it need?
5.25 kW total.
What panel size can it return?
250 to 2440 mm long and 250 to 1220 mm wide, 10 to 60 mm thick.
How heavy a panel can it carry?
Up to 60 kg.
What speed does it run at?
16 to 24 m per minute.
Ask For A Quotation On The 180 Degree Curve Return Line Machine Return Production Line for Woodworking
Send your panel size, coating system and line speed. You will get the model recommendation, full technical data and a price.
