Frameless Lighted Mirror

High Quality Lighted Mirror Model HQ001

Name: High Quality Lighted Mirror Model HQ001
Brand: High Quality Lighted Mirror
SKU: HQ001

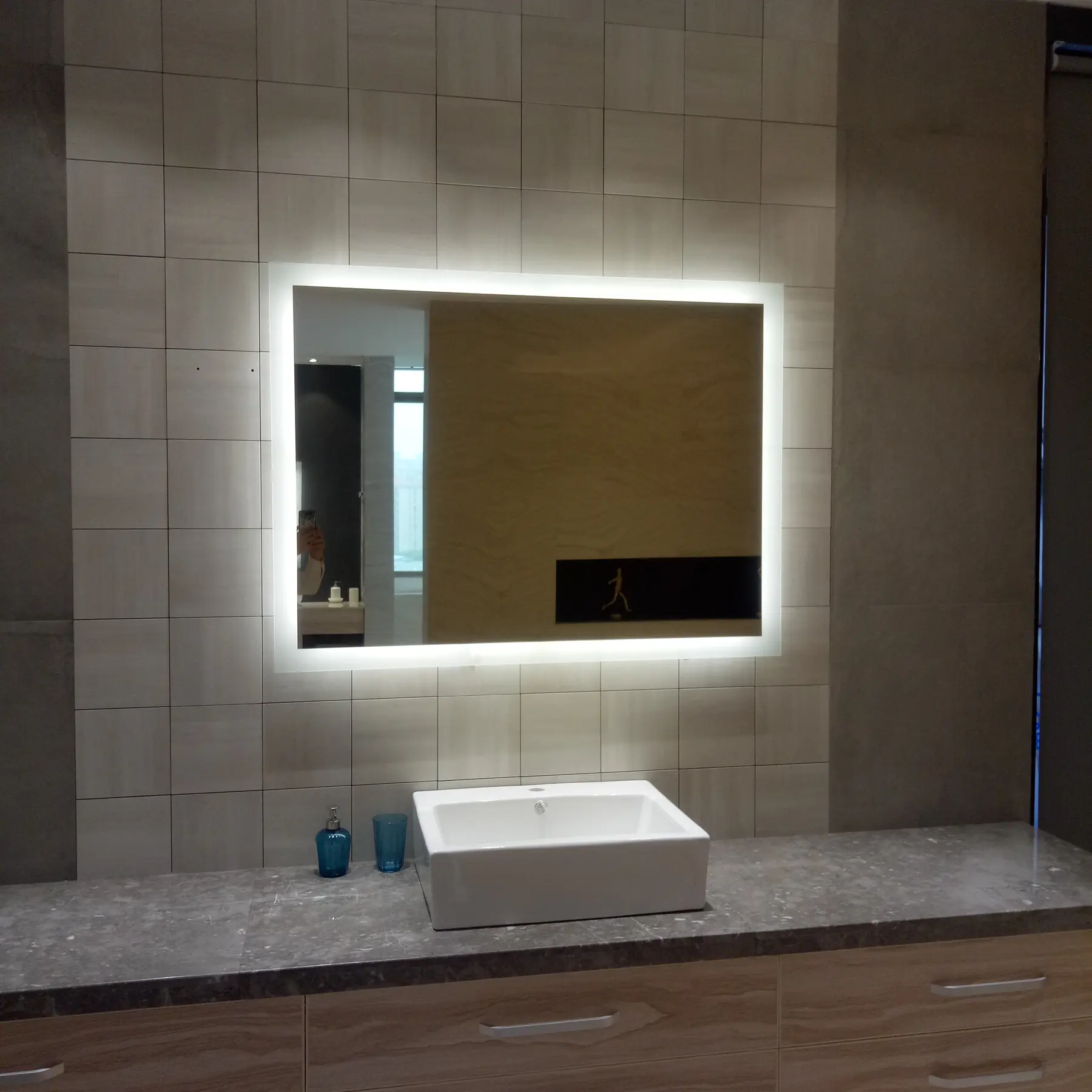

HQ001 is the model most of our hotel clients order first. It is a plain rectangular frameless mirror with a frosted light band, and it is deliberately simple so nothing on it can go wrong at volume.

Request A Quotation See The Full Range

Product Overview

What This Model Is For

HQ001 is a simple model. That is the point of it. There is no frame to chip, no shelf to load and no decorative edge to mismatch, which makes it the safest model to repeat three hundred times across a property.

The difficulty in a plain frameless mirror is in details the drawing does not show: how sharp the frosted band is at the corners, whether the LED strip shows as dots through the glass, and whether the silver edge is still clean after two years of steam. Those are the details we build the model around.

Key Benefits

What You Get From This Model

Repeatable Across Hundreds of Rooms

Same glass batch, same LED output, same frosting width, so units installed on different floors match at handover.

No Visible Fixture

The frosted band is the only lit element, so the mirror reads as part of the wall rather than as a light fitting.

Straightforward Site Handling

No frame corners to protect in transit and no shelf to align on the wall, which cuts damage and installation time on a busy site.

Application Scenarios

Where This Model Is Installed

Hotel guest bathrooms on a repeat room layout
Apartment, condo and multi-family bathrooms
Extended stay and serviced residence bathrooms
Retail and wholesale programmes needing a repeatable frameless model

Who It Is For

Hotel owners, general contractors and interior design companies specifying one mirror for a whole property, plus distributors who need a model they can reorder without re-approving a sample.

Problems It Solves

What Goes Wrong Without It

Mirrors that no longer match after two years

Copper-free and lead-free silver with a sealed edge resists the creeping black edge that shows up first on the units nearest the shower.

Visible LED dots through the frosting

The frosted panel and LED spacing are matched so the band reads as a continuous line rather than a row of points.

Slow installation on a tight programme

The wall plate goes up first and the mirror hangs onto it, so first fix and final fix can be done by different crews.

Technical Features

How This Model Is Built

Distortion Free Silver Mirror
5mm environmental silver mirror with a fingerprint-proof frosted panel. No copper and no lead in the coating, so the silver edge does not creep or corrode in a wet bathroom.
Shatter Proof Safety Backing
Safety backing film is bonded to the rear of the glass, so a broken mirror stays in one piece instead of falling into a guest bathroom.
Powder Coated Anti Rust Frame
Strong powder coating adhesion on the aluminium body. The coating does not flake off the metal and the metal does not rust.
Structural Bonding
High strength adhesive and a rigid aluminium structure hold the glass, the light box and the mounting plate together as one assembly.
Easy Installation System
A wall plate is fixed first, then the mirror is hung on it. One installer can set a mirror without a second pair of hands on site.
Clean on Every Surface
Every face of the finished product is cleaned and inspected, including the back and the edges the guest never sees.

Specifications

Technical Data for HQ001

Values marked TBC are confirmed on the approved drawing rather than guessed here.

Model	HQ001
Mirror Glass	5mm environmental silver mirror, copper-free and lead-free, distortion free
Safety Backing	Shatter-proof backing film bonded to the rear of the glass
Body	Powder coated anti-rust aluminium structure
Lighting	Flexible LED strip, T5 LED tube or rigid LED strip with diffuser, 50,000 hour rated life, 10W/m to 22W/m
Electrical Parts	All electrical parts are UL listed or CE certified
Standards	Meets JA8 standards and Title 24 requirements
Ingress Protection	IP44
Standard Sizes	W24" x H36", W36" x H36", W42" x H36", W48" x H36", W60" x H36", plus custom sizes
Optional Functions	Anti-fog defogger, clock display, dimming by touch switch or wall dimmer, Bluetooth speaker, shaver socket, changeable light colour
Switching	Touch switch for on/off, dimming, defogger and light colour change
Warranty	3 to 5 years
Lead Time	30 to 45 working days
Certificates	UL, cUL, ETL, cETL, CE, SAA, IP44, RoHS
Country of Manufacture	China
Unit Weight	TBC — confirmed on the approved drawing
Packing	TBC — confirmed with the order

Materials and Manufacturing

What It Is Made Of and How

Materials

5mm environmental silver mirror without copper or lead, shatter-proof safety backing film, powder coated anti-rust aluminium body, and LED strip or T5 tube light sources with UL listed or CE certified electrical parts.

Manufacturing Process

Glass cutting and edge work, frosting of the light band, aluminium body fabrication and powder coating, LED and driver assembly, structural bonding, cleaning of every surface, then electrical test, load bearing test and final inspection before packing.

Quality Control

Each mirror is inspected before assembly and tested before packing. The mounting system is load bearing tested. Zero complaints is the goal the line is measured against.

Certifications

UL, cUL, ETL, cETL, CE, SAA, IP44 and RoHS. All electrical parts are UL listed or CE certified, and the lighting meets JA8 standards and Title 24 requirements.

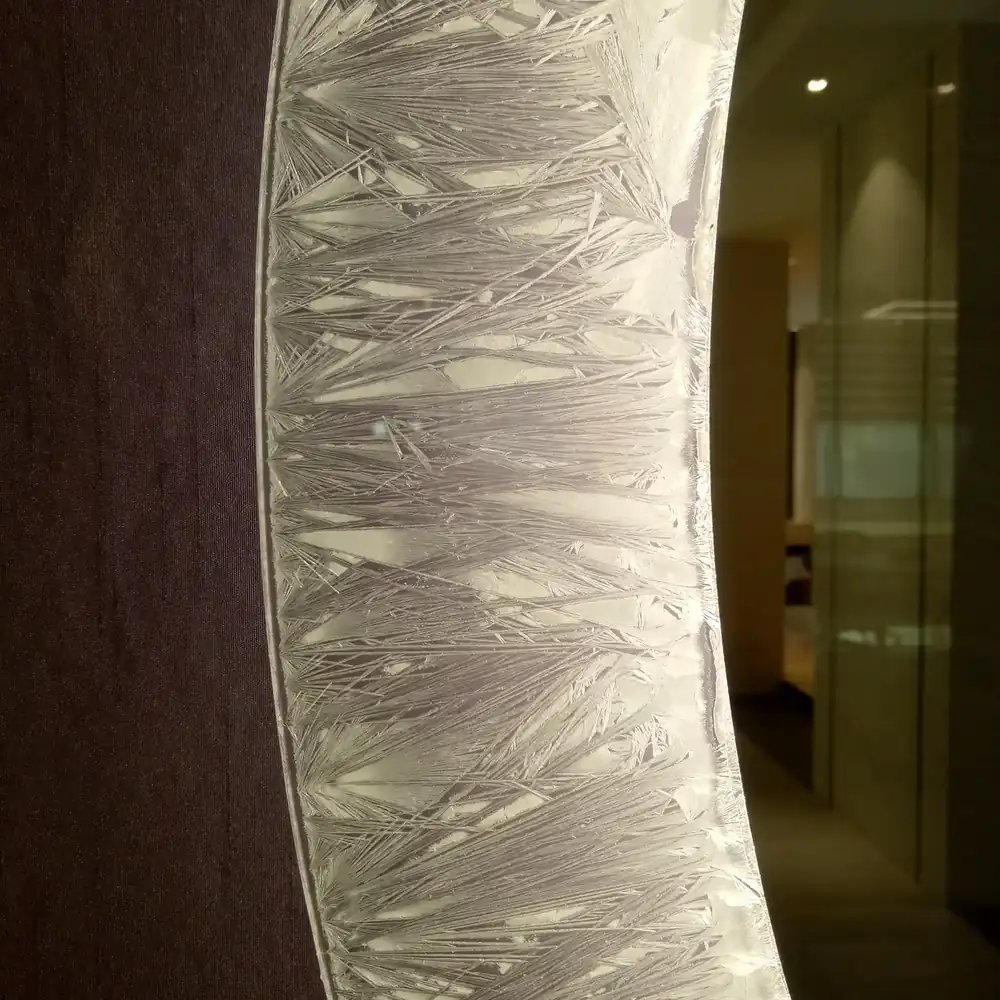

Ice frosted glass style for lighted mirror

Customisation

What Can Be Changed on This Model

Size: any width and height to your drawing, beyond the standard range
Functions: anti-fog defogger, clock, dimming, Bluetooth speaker, shaver socket, changeable light colour
Light source: flexible LED strip, T5 LED tube or rigid strip with diffuser, 10W/m to 22W/m

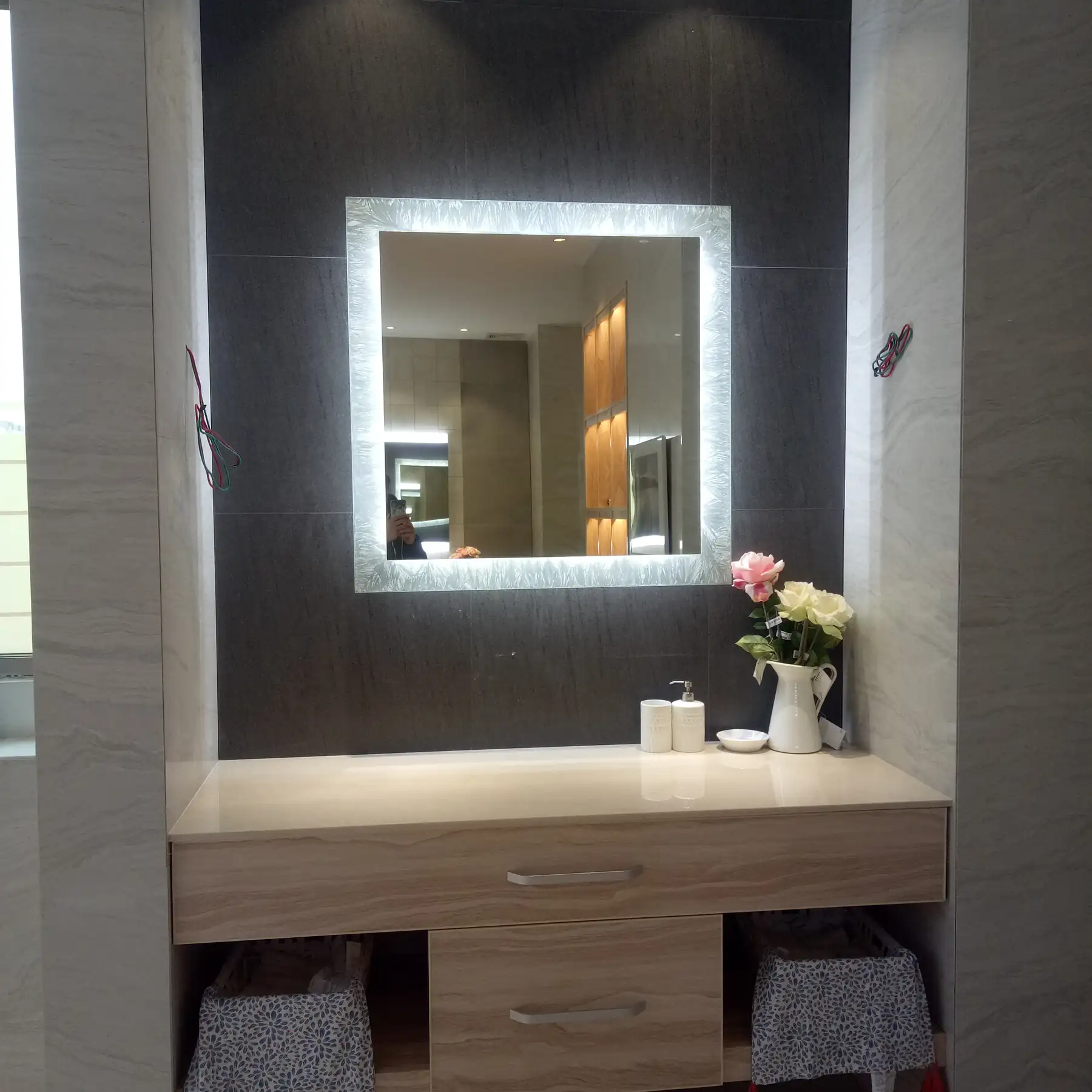

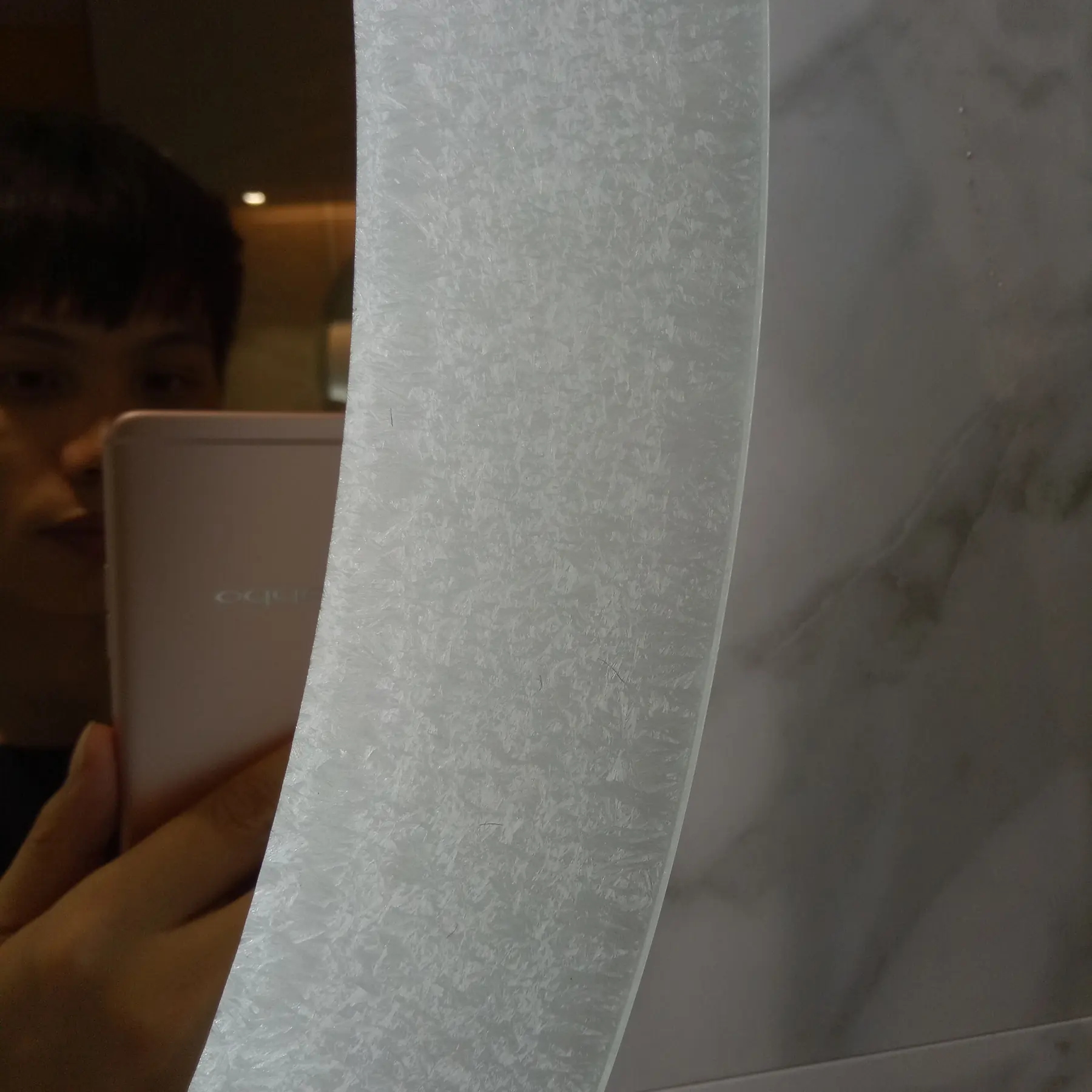

Frosting: standard white, ice flower or cotton fibre frosting
Switching: touch switch on the mirror or wall switch and dimmer

Comparison

How It Compares

Point	HQ001 Frameless	Framed LED Mirror
Visual effect	Mirror reads as part of the wall	Frame gives a finish line
Storage	None	Optional shelf on the frame
Site handling	No frame corners to protect	Corners need transit protection
Typical use	Repeat guest bathrooms	Feature or upper upscale bathrooms

Use Guide

Installing and Living With It

Fix the wall plate to the stud or to a suitable anchor at the height given on the drawing, and check it is level before hanging anything.
Make the electrical connection to the driver before the mirror is lifted into place; all parts are UL listed or CE certified.
Hang the mirror on the plate and secure it, then test the switch, the dimming and the defogger if one is fitted.
Clean the face with a soft cloth and a non-abrasive cleaner. Do not use a solvent on the frosted band.

Questions

Questions About High Quality Lighted Mirror Model HQ001

What sizes is HQ001 available in?

W24" x H36", W36" x H36", W42" x H36", W48" x H36" and W60" x H36" are standard, and custom sizes are made to drawing.

Can HQ001 be supplied with a defogger?

Yes. Anti-fog defogger, clock, dimming by touch switch or wall dimmer, Bluetooth speaker, shaver socket and changeable light colour are all available.

How long does an HQ001 order take?

30 to 45 working days. Shipping to your site or warehouse and customs clearance can be arranged with the order.

What warranty comes with HQ001?

3 to 5 years, the same as the rest of our lighted mirror and lit medicine cabinet range.

Which frosting style is standard?

Standard white frosting. Ice flower frosting and cotton fibre frosting are produced in house if the finish scheme calls for them.
