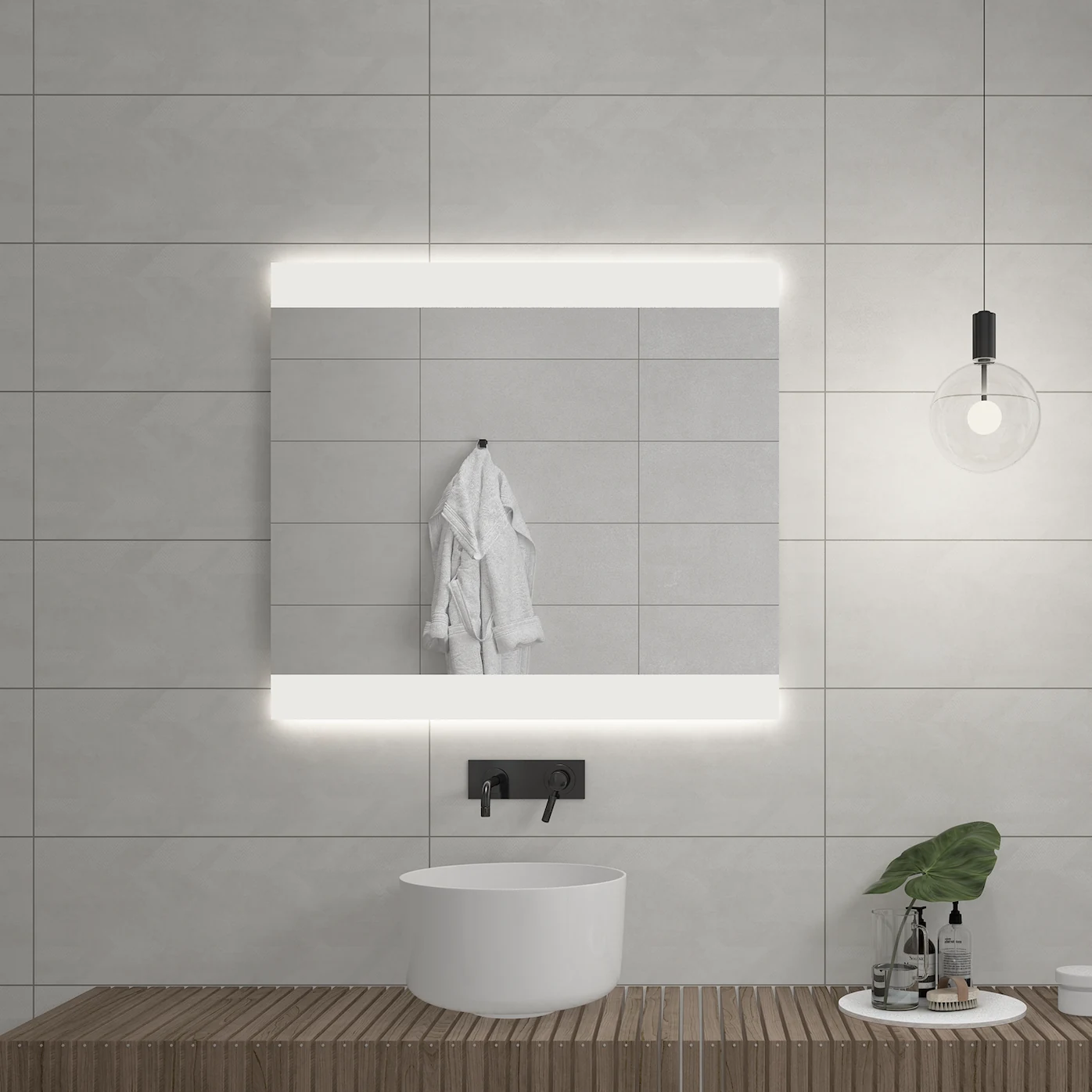

Fog Free Bathroom LED Mirror Model HQ004
HQ004 is the fog free model. A heated pad behind the glass keeps the mirror surface above the dew point, so the guest has a clear mirror immediately after a shower instead of a wiped smear.
What This Model Is For
Fogging is the complaint that reaches the front desk. In a compact hotel bathroom with a shower close to the vanity, an untreated mirror is unusable for several minutes after every shower, and guests wipe it with a towel that then leaves streaks.
HQ004 solves that with a defogger pad bonded behind the mirror, an acrylic diffuser for even light output and the same anti-rust aluminium structure used across the range.
What You Get From This Model
Clear Glass Immediately After a Shower
The heated area stays above the dew point, so the guest never has to wipe the mirror and the finish is not scratched over time.

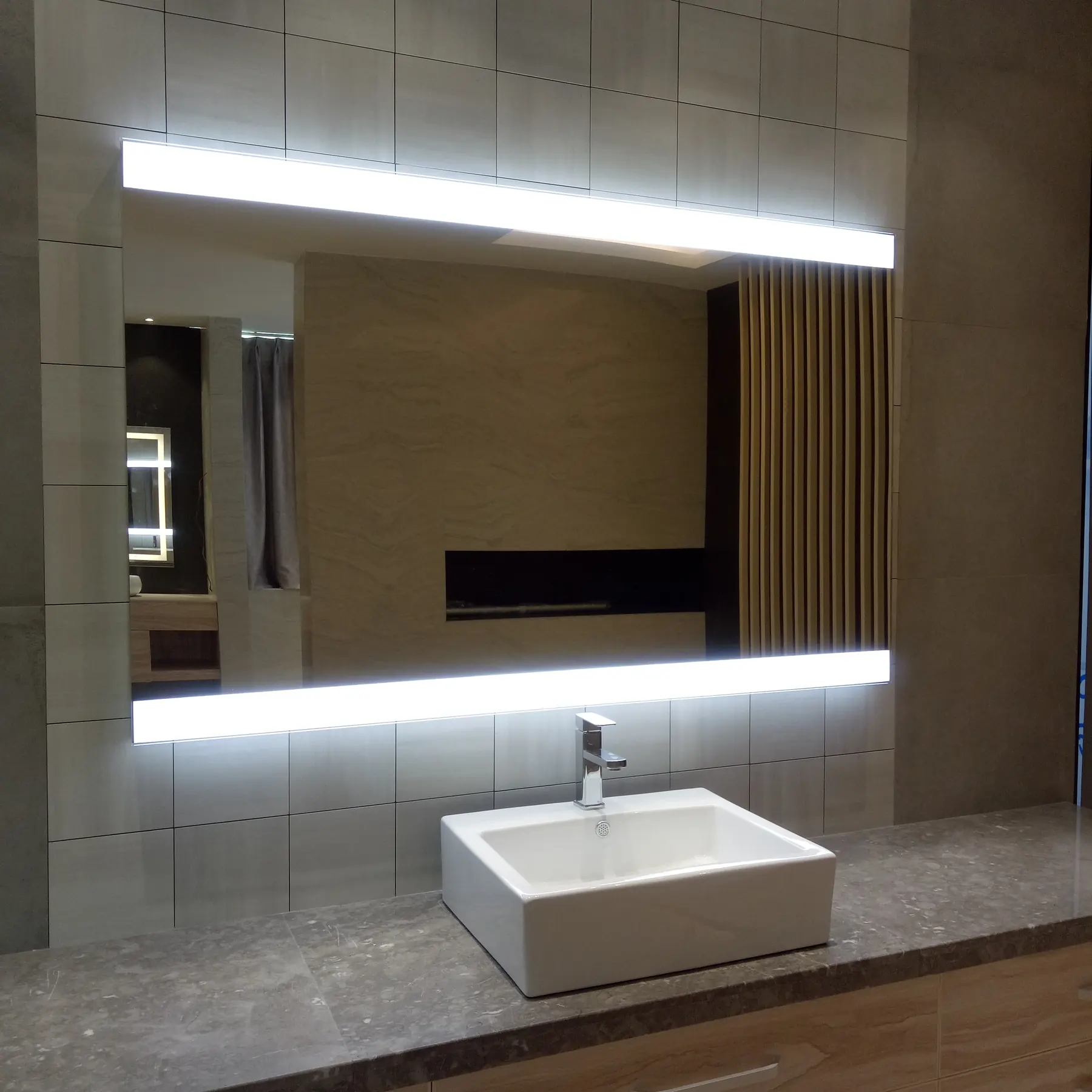

Acrylic Diffuser for Even Output
The diffuser spreads the LED output so the lit band has no hot spots along its length.

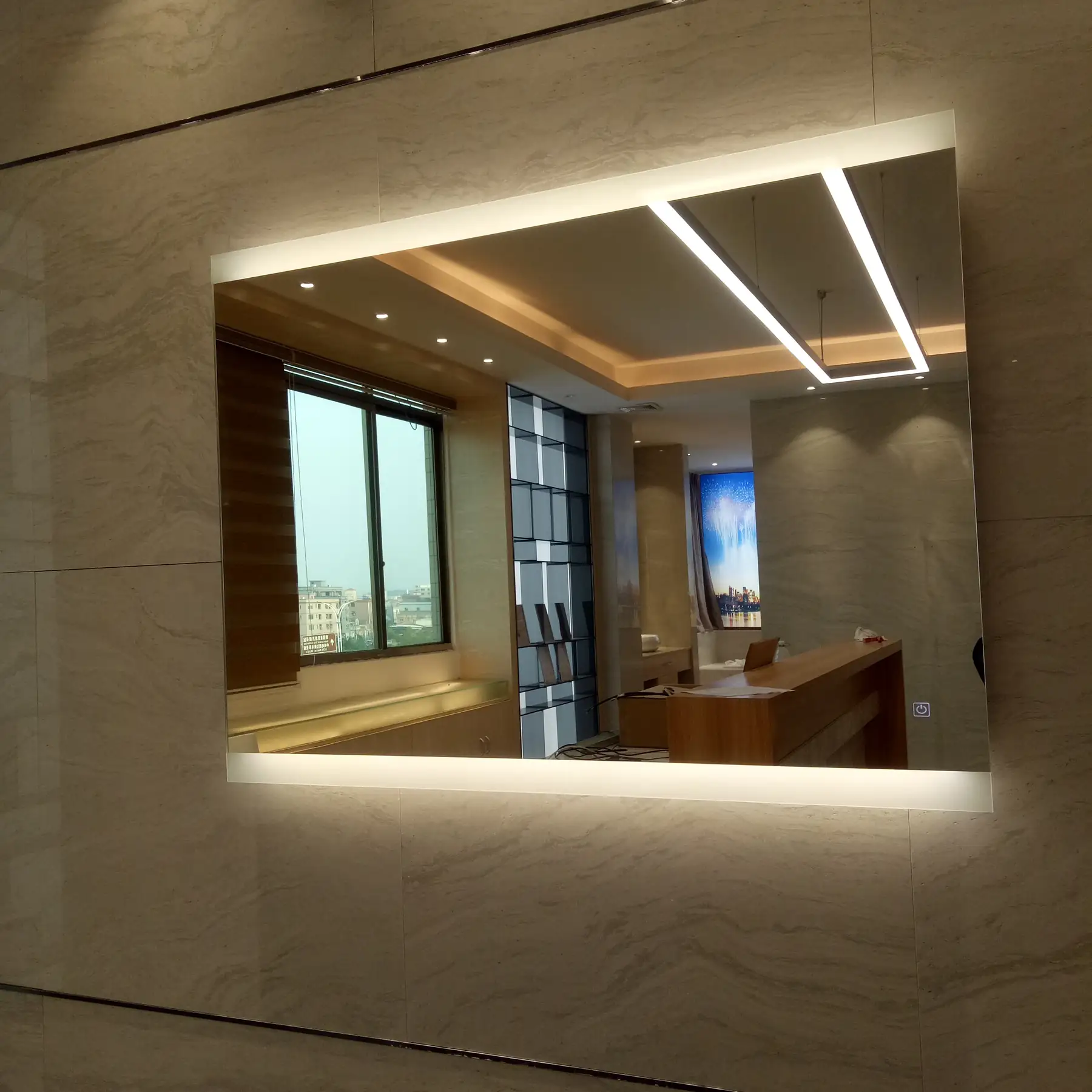

Anti Rust Aluminium Structure
The structure behind the glass is aluminium, which is what lets the unit live next to a shower for years.
Where This Model Is Installed
- Compact hotel bathrooms where the shower is next to the vanity
- Wet rooms and bathrooms with limited extract ventilation
- Spa, resort and leisure changing facilities
- Residential master bathrooms in humid climates
Who It Is For
Owners and operators who have had fogging complaints, and designers working with compact or poorly ventilated bathroom layouts.
What Goes Wrong Without It
Guest complaints about a fogged mirror
The defogger keeps a clear zone from the moment the guest steps out of the shower.
Scratched mirrors from repeated wiping
If the guest never wipes the mirror, the surface stays as it was at handover.
Uneven light on a long mirror
The acrylic diffuser evens the output so the band is consistent end to end.
How This Model Is Built
Distortion Free Silver Mirror
5mm environmental silver mirror with a fingerprint-proof frosted panel. No copper and no lead in the coating, so the silver edge does not creep or corrode in a wet bathroom.
Shatter Proof Safety Backing
Safety backing film is bonded to the rear of the glass, so a broken mirror stays in one piece instead of falling into a guest bathroom.
Powder Coated Anti Rust Frame
Strong powder coating adhesion on the aluminium body. The coating does not flake off the metal and the metal does not rust.
Structural Bonding
High strength adhesive and a rigid aluminium structure hold the glass, the light box and the mounting plate together as one assembly.
Easy Installation System
A wall plate is fixed first, then the mirror is hung on it. One installer can set a mirror without a second pair of hands on site.
Clean on Every Surface
Every face of the finished product is cleaned and inspected, including the back and the edges the guest never sees.
Technical Data for HQ004
Values marked TBC are confirmed on the approved drawing rather than guessed here.
| Model | HQ004 |
|---|---|
| Mirror Glass | 5mm environmental silver mirror, copper-free and lead-free, distortion free |
| Safety Backing | Shatter-proof backing film bonded to the rear of the glass |
| Body | Powder coated anti-rust aluminium structure |
| Lighting | Flexible LED strip, T5 LED tube or rigid LED strip with diffuser, 50,000 hour rated life, 10W/m to 22W/m |
| Electrical Parts | All electrical parts are UL listed or CE certified |
| Standards | Meets JA8 standards and Title 24 requirements |
| Ingress Protection | IP44 |
| Standard Sizes | W24" x H36", W36" x H36", W42" x H36", W48" x H36", W60" x H36", plus custom sizes |
| Optional Functions | Anti-fog defogger, clock display, dimming by touch switch or wall dimmer, Bluetooth speaker, shaver socket, changeable light colour |
| Switching | Touch switch for on/off, dimming, defogger and light colour change |
| Warranty | 3 to 5 years |
| Lead Time | 30 to 45 working days |
| Certificates | UL, cUL, ETL, cETL, CE, SAA, IP44, RoHS |
| Country of Manufacture | China |
| Unit Weight | TBC — confirmed on the approved drawing |
| Packing | TBC — confirmed with the order |
What It Is Made Of and How
Materials
5mm environmental silver mirror without copper or lead, shatter-proof safety backing film, powder coated anti-rust aluminium body, and LED strip or T5 tube light sources with UL listed or CE certified electrical parts.
Manufacturing Process
Glass cutting and edge work, frosting of the light band, aluminium body fabrication and powder coating, LED and driver assembly, structural bonding, cleaning of every surface, then electrical test, load bearing test and final inspection before packing.
Quality Control
Each mirror is inspected before assembly and tested before packing. The mounting system is load bearing tested. Zero complaints is the goal the line is measured against.
Certifications
UL, cUL, ETL, cETL, CE, SAA, IP44 and RoHS. All electrical parts are UL listed or CE certified, and the lighting meets JA8 standards and Title 24 requirements.
What Can Be Changed on This Model
- Size: any width and height to your drawing, beyond the standard range
- Functions: anti-fog defogger, clock, dimming, Bluetooth speaker, shaver socket, changeable light colour
- Light source: flexible LED strip, T5 LED tube or rigid strip with diffuser, 10W/m to 22W/m
- Frosting: standard white, ice flower or cotton fibre frosting
- Switching: touch switch on the mirror or wall switch and dimmer
How It Compares
| Point | HQ004 Fog Free | Standard Frameless |
|---|---|---|
| Defogger | Fitted as standard | Available as an option |
| Diffuser | Acrylic diffuser fitted | Frosted glass band |
| Best for | Compact or humid bathrooms | Well ventilated bathrooms |
| Electrical load | Mirror plus defogger circuit | Mirror only |
Installing and Living With It
Confirm the circuit can carry the defogger as well as the mirror before first fix; the defogger is a separate heated element.
Fix the wall plate, connect the driver and the defogger, then hang the mirror.
Run the defogger for a few minutes at commissioning and check the clear zone spreads evenly.
Clean with a soft cloth only. The defogger pad is behind the glass and needs no maintenance.
Questions About Fog Free Bathroom LED Mirror Model HQ004
How long does the defogger take to clear the mirror?
The heated area is kept above the dew point while it is powered, so the mirror stays clear rather than clearing afterwards. Switching is normally tied to the mirror light or a separate switch, depending on your specification.
Does the whole mirror stay clear or only part of it?
The clear zone follows the defogger pad. The pad size is set against your drawing, so tell us the mirror size and the area you want kept clear.
Can a defogger be added to other models?
Yes. Anti-fog is an option across the range, including the framed models and the lit medicine cabinets.
Is the defogger covered by the warranty?
Yes, under the same 3 to 5 year warranty as the rest of the product.
What sizes are available?
W24" x H36" up to W60" x H36" as standard, plus custom sizes.
