Frameless Lighted Mirror

High Quality Backlit Mirror Model HQ003

Name: High Quality Backlit Mirror Model HQ003
Brand: High Quality Lighted Mirror
SKU: HQ003

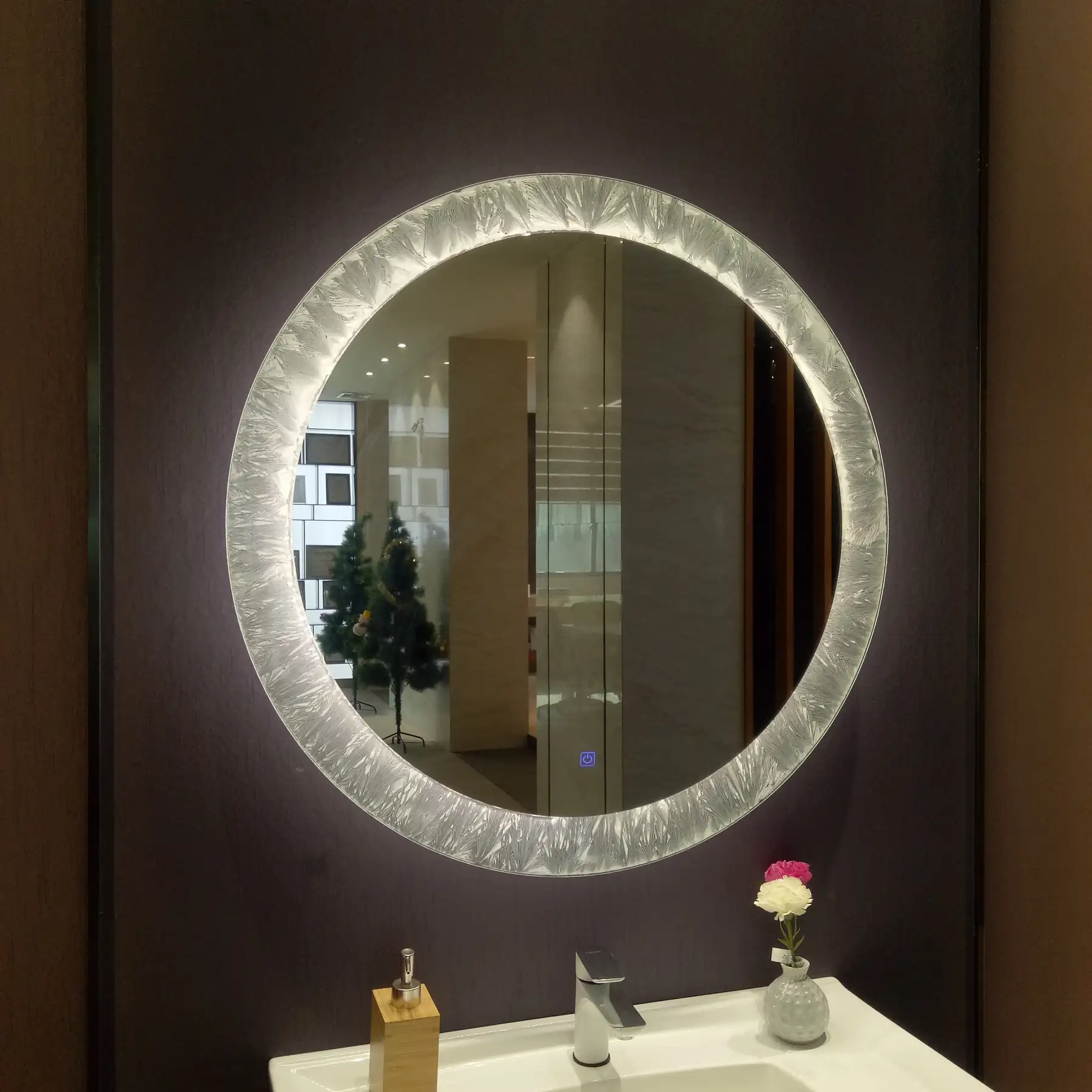

HQ003 is the backlit model. The light comes from behind the glass and washes the wall around it, which gives the mirror a floating edge instead of a bright band on the face.

Request A Quotation See The Full Range

Product Overview

What This Model Is For

Backlighting changes what the mirror does to the room. Instead of throwing light at the face from a frosted band, HQ003 throws it backwards onto the wall, so the mirror appears to float and the bathroom reads larger.

The construction is the same as the rest of the frameless range: 5mm silver glass, safety backing, powder coated aluminium body and UL listed or CE certified electrical parts. Only the light direction changes.

Key Benefits

What You Get From This Model

Floating Edge Effect

The perimeter glow separates the mirror from the wall, which is the effect designers usually want in a dark tiled bathroom.

Softer Ambient Light

Reflected light from the wall is gentler than direct face lighting, and works well as a night light level in a guest bathroom.

Same Build as the Front Lit Models

Glass, backing, frame and electrical specification are shared with HQ001, so mixing backlit and front lit models in one property is straightforward.

Application Scenarios

Where This Model Is Installed

Design-led hotel bathrooms with dark tile or stone
Feature powder rooms and lobby washrooms
Residential and condo bathrooms where ambience matters more than task light
Spaces where a night light level is wanted without a separate fixture

Who It Is For

Interior designers and owners who want the mirror to contribute to the atmosphere of the room rather than act purely as a task light.

Problems It Solves

What Goes Wrong Without It

Task lighting that flattens a designed bathroom

Backlighting puts the light on the wall instead of the face, so the tile and stone still read as intended.

Adding a night light without adding a fixture

A dimmed backlit mirror gives a low ambient level from a fitting that is already in the room.

Mixing lighting styles across a property

Because HQ003 shares its construction with the front lit models, both can be specified from one approval package.

Technical Features

How This Model Is Built

Distortion Free Silver Mirror
5mm environmental silver mirror with a fingerprint-proof frosted panel. No copper and no lead in the coating, so the silver edge does not creep or corrode in a wet bathroom.
Shatter Proof Safety Backing
Safety backing film is bonded to the rear of the glass, so a broken mirror stays in one piece instead of falling into a guest bathroom.
Powder Coated Anti Rust Frame
Strong powder coating adhesion on the aluminium body. The coating does not flake off the metal and the metal does not rust.
Structural Bonding
High strength adhesive and a rigid aluminium structure hold the glass, the light box and the mounting plate together as one assembly.
Easy Installation System
A wall plate is fixed first, then the mirror is hung on it. One installer can set a mirror without a second pair of hands on site.
Clean on Every Surface
Every face of the finished product is cleaned and inspected, including the back and the edges the guest never sees.

Specifications

Technical Data for HQ003

Values marked TBC are confirmed on the approved drawing rather than guessed here.

Model	HQ003
Mirror Glass	5mm environmental silver mirror, copper-free and lead-free, distortion free
Safety Backing	Shatter-proof backing film bonded to the rear of the glass
Body	Powder coated anti-rust aluminium structure
Lighting	Flexible LED strip, T5 LED tube or rigid LED strip with diffuser, 50,000 hour rated life, 10W/m to 22W/m
Electrical Parts	All electrical parts are UL listed or CE certified
Standards	Meets JA8 standards and Title 24 requirements
Ingress Protection	IP44
Standard Sizes	W24" x H36", W36" x H36", W42" x H36", W48" x H36", W60" x H36", plus custom sizes
Optional Functions	Anti-fog defogger, clock display, dimming by touch switch or wall dimmer, Bluetooth speaker, shaver socket, changeable light colour
Switching	Touch switch for on/off, dimming, defogger and light colour change
Warranty	3 to 5 years
Lead Time	30 to 45 working days
Certificates	UL, cUL, ETL, cETL, CE, SAA, IP44, RoHS
Country of Manufacture	China
Unit Weight	TBC — confirmed on the approved drawing
Packing	TBC — confirmed with the order

Materials and Manufacturing

What It Is Made Of and How

Materials

5mm environmental silver mirror without copper or lead, shatter-proof safety backing film, powder coated anti-rust aluminium body, and LED strip or T5 tube light sources with UL listed or CE certified electrical parts.

Manufacturing Process

Glass cutting and edge work, frosting of the light band, aluminium body fabrication and powder coating, LED and driver assembly, structural bonding, cleaning of every surface, then electrical test, load bearing test and final inspection before packing.

Quality Control

Each mirror is inspected before assembly and tested before packing. The mounting system is load bearing tested. Zero complaints is the goal the line is measured against.

Certifications

UL, cUL, ETL, cETL, CE, SAA, IP44 and RoHS. All electrical parts are UL listed or CE certified, and the lighting meets JA8 standards and Title 24 requirements.

Customisation

What Can Be Changed on This Model

Size: any width and height to your drawing, beyond the standard range
Functions: anti-fog defogger, clock, dimming, Bluetooth speaker, shaver socket, changeable light colour
Light source: flexible LED strip, T5 LED tube or rigid strip with diffuser, 10W/m to 22W/m
Frosting: standard white, ice flower or cotton fibre frosting
Switching: touch switch on the mirror or wall switch and dimmer

Comparison

How It Compares

Point	HQ003 Backlit	HQ001 Front Lit
Light direction	Backwards onto the wall	Forwards from a frosted band
Best for	Atmosphere and perceived space	Shaving and make-up task light
Wall requirement	Needs a clean wall surface behind	Works on any finish
Construction	Shared with the frameless range	Shared with the frameless range

Use Guide

Installing and Living With It

Check the wall finish behind the mirror; backlighting shows up an uneven or patchy surface that a front lit mirror would hide.
Allow the drawing gap between the mirror back and the wall so the glow spreads evenly.
Fix the wall plate, connect the driver, then hang and secure the mirror.
Set the dimmer level at commissioning with the room lights off, which is how the guest will normally see it.

Questions

Questions About High Quality Backlit Mirror Model HQ003

Is a backlit mirror bright enough for shaving and make-up?

Backlighting is ambient rather than task light. Where the bathroom has no other vanity light, a front lit model such as HQ001 or HQ002 is the better choice.

Can HQ003 be dimmed?

Yes, by touch switch or wall dimmer. Changeable light colour is also available.

What sizes does HQ003 come in?

W24" x H36" through W60" x H36" as standard, plus custom sizes.

Does the perimeter glow need a special wall finish?

It needs a flat, evenly finished wall. Uneven plaster or a patchy paint line behind the mirror becomes visible once the light is on.

What is the LED life expectancy?

The LED strips are rated at 50,000 hours, at 10W/m to 22W/m depending on the specification.
