Specification Sheets Drawings and Certificates
Everything here is issued per model and per project size. Name the model and the size and the right document comes back by email.
What We Can Send You
Product Specification Sheet
Full technical data for any model, including glass, lighting, electrical parts, sizes and options, formatted for a submittal package.
Shop Drawing for Your Sizes

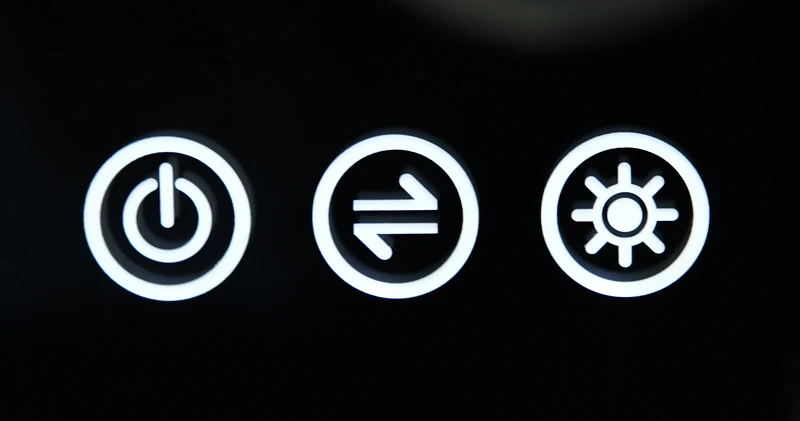

A drawing for your exact mirror or cabinet size, with fixing positions, switch position and defogger area marked.
Certificate Copies
Copies of our UL, cUL, ETL, cETL, CE, SAA, IP44 and RoHS certificates for the project file.
Installation Guide
Wall plate fixing, electrical connection sequence and commissioning steps for the model you are installing.
Maintenance and Cleaning Guide

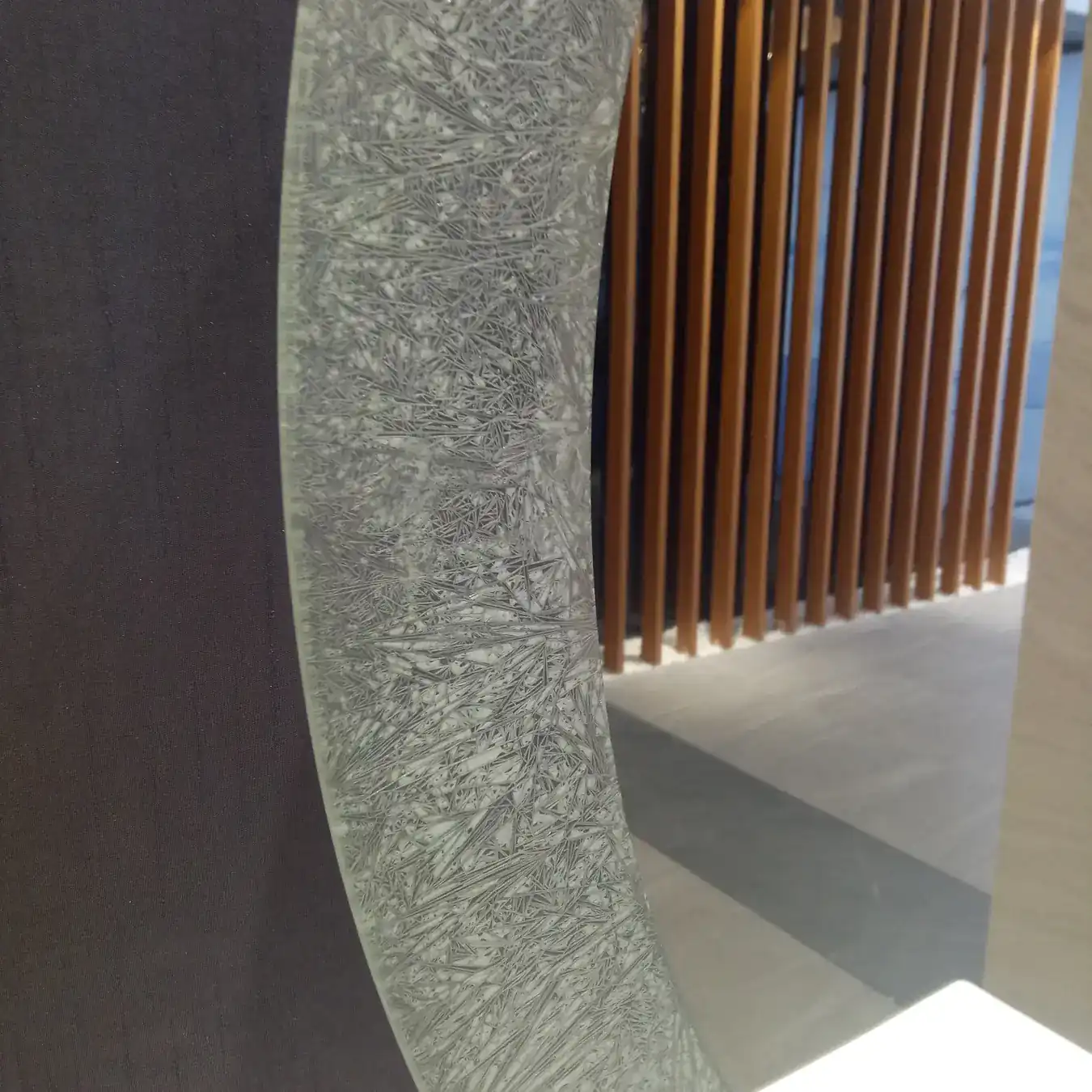

What to clean the mirror, frame and cabinet with, and what not to use on the frosted band or powder coating.
Project Reference List
Named properties with unit counts and sizes as supplied, for your approval submission.
CAD File on Request
CAD files are not published for download. They are issued directly to project teams against a named project.
A Generic PDF Is Rarely the One You Need
Most of what we manufacture is customised, so a published catalogue sheet would describe a mirror nobody is actually buying. Naming the model and the size gets you a document that matches what you are specifying.
Specification sheets are available for all models. Tell us what the project is and we will send what your submittal package needs.
Questions About Documents
Why are the documents not published as direct downloads?
Specification sheets and drawings are issued per model and per size. Sending the right document for your project is more useful than publishing a generic one.
How do I get a specification sheet?
Email us the model name and the sizes you are considering, and we will send the sheet.
Can I get CAD files?
CAD files are issued to project teams against a named project rather than published for download. Ask by email.
Do you provide certificate copies for approvals?
Yes. Copies of the UL, cUL, ETL, cETL, CE, SAA, IP44 and RoHS certificates are available for your project file.
Request The Documents You Need
Name the model, the sizes and the project and we will send the specification sheets, drawings and certificate copies.
