Single-station semi-automatic rigid box assembly machine that sprays glue on side panels and flat surfaces, takes shells up to 850 x 450 mm and changes over in about five minutes.

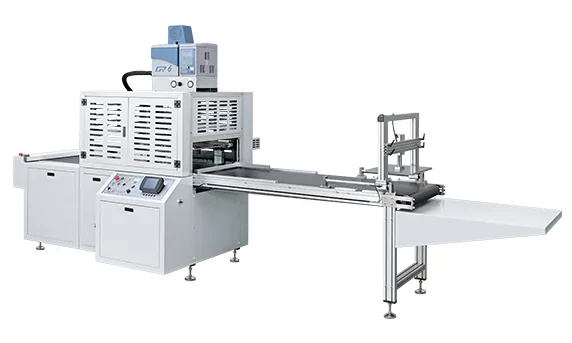

The GR-600B is a semi-automatic rigid box assembly and forming machine for one operator. It wraps cover paper onto shells and bonds outer shells to inner boxes on the same station, handling both side-panel and flat-plane gluing. It suits packaging plants that run mixed gift box orders and want to cut manual wrapping labour without moving straight to a full line.
Short and mid-length runs of gift sets, wine boxes and book-shaped boxes where order sizes change every week.
Small cosmetic and eye shadow shells that are slow and error-prone to wrap by hand.
Bottomless boxes, handicraft boxes and oversized or undersized gift boxes that fixed-mould machines cannot hold.
Plants replacing a manual gluing bench that need one machine the team can learn quickly.
Sprays stripe, dot and mist glue patterns, including fonts and logos, with strong adhesion and no missed areas.
One station covers side-panel gluing and flat-plane gluing, so side-wrapped and flat-wrapped boxes run on the same machine.
Pattern import and on-screen adjustment, with roughly five minutes per product changeover.
Can be dismantled for transport in a lift and connected to an online assembly line.
Positioning accuracy of 0.4 mm keeps the shell square to the inner box.
Figures published by Wenzhou Guorun Machinery for this model. Where a value is marked TBC it has not been published and must be confirmed with the factory before you quote it.
| Model No. | GR-600B |
|---|---|
| Machine Size | 4560 x 1440 x 2050 mm |
| Machine Weight | 500 kg |
| Air Pressure | 0.7 MPa |
| Machine Power | 6 kW / 380 V |
| Production Speed | 0-18 pcs/min |
| Max Cover Size | 850 x 450 mm |
| Min Cover Size | 90 x 50 mm |
| Nozzle Number | 1 |
| Positioning Accuracy | 0.4 mm |
| Maximum Inner Box | 450 x 450 x 150 mm |
| Minimum Inner Box | 50 x 50 x 10 mm |
| Maximum Painting Area | 450 x 600 mm |
| Minimum Glue Area | 50 x 50 mm |
Materials and construction: welded steel frame with servo or pneumatic drives, computer glue spraying control and a touch screen operator interface. Compressed air at 0.7 MPa is required on every model.
The GR-600B runs one station. The GR-1000B adds a second station and lifts daily output at the cost of a wider frame. If your boxes are collapsible rather than rigid, the GR-1000BA is the semi-automatic machine to look at instead.
Every machine is assembled, wired and test run in the Guorun workshop before despatch, with the customer's own box format used for the trial where one has been supplied. Guorun holds eleven granted Chinese patents covering forming, feeding, conveying and glue spraying mechanisms, listed on the About page.
Full production lines are customised to customer requirements. Delivery is quoted at 30 working days for samples and 45 working days for OEM orders, with a one-year warranty and lifetime machine operation training.
Two-station semi-automatic rigid box assembly machine covering shells up to 950 x 550 mm, with separate size envelopes for single and dual station work.
Fully automatic cosmetic box assembly machine with suspended shell positioning, servo linkage and one-time bubble pressing at 0-28 pcs/min and +0.2 mm forming error.
Fully automatic dual-use assembly machine for high-end cigarette, phone, wine, moon cake and ring boxes, with covers to 930 x 500 mm and 18-28 pcs/min forming.
Cover shells from 90 x 50 mm to 850 x 450 mm, and inner boxes from 50 x 50 x 10 mm to 450 x 450 x 150 mm.
A single head produces about 7,000 units per day. A double head configuration reaches about 15,000 units per day.
About five minutes per product change using the handheld touch screen, including importing the spray pattern.
6 kW at 380 V, with a compressed air supply at 0.7 MPa.
Guorun provides a one-year warranty and lifetime machine operation training.
Sample delivery is quoted at 30 working days and OEM orders at 45 working days.
Send your cover size, inner box size and type, film finish and daily volume. We will confirm whether the GR-600B envelope covers it and quote delivery, terms and freight.
