GR-1000BA · Collapsible Box Making Machine
GR-1000BA Semi-Automatic Collapsible Box Forming Machine
Compact semi-automatic collapsible box forming machine running on 220 V, covering shells from 250 x 180 mm to 1000 x 490 mm at 0-18 pcs/min.
Product Overview
What The GR-1000BA Does
The GR-1000BA is a semi-automatic forming machine for collapsible boxes, including handbag-style folding boxes. It is the smallest machine in the Guorun collapsible range at 2200 x 1400 x 1750 mm and 260 kg, and it runs on a 4 kW 220 V supply, so it can be installed where three-phase 380 V is not available at the workstation.
Key Benefits
- Lowest installed power in the Guorun collapsible range at 4 kW.
- 260 kg machine weight, so relocation inside the plant is straightforward.
- Wing sizes from 180 x 40 mm to 560 x 150 mm.
- Rated at 0-18 pieces per minute with a single nozzle.
Who It Is For
Plants That Buy The GR-1000BA
Folding and handbag box makers
Handheld collapsible boxes where accurate wing placement decides whether the box folds flat.
Small and mid-size packaging plants
Workshops without spare 380 V capacity or floor space for a full line.
Sample and short-run departments
Pre-production samples and small brand orders that do not justify an automatic line.
E-commerce packaging suppliers
Flat-packed gift boxes shipped collapsed and erected by the end customer.
Problems It Solves
Production Problems and How This Machine Answers Them
Floor spaceAt 2200 x 1400 mm the machine fits into a corner of an existing finishing area.
Power supply limitsA 4 kW 220 V supply avoids installing a new three-phase drop.
Inconsistent wing placementPositioning accuracy of 0.3 mm keeps wings square so the finished box folds flat and reopens cleanly.
A wide shell range on one machineCover sizes from 250 x 180 mm to 1000 x 490 mm cover most retail collapsible formats.
Technical Features
Mechanisms Inside The GR-1000BA
Compact frame
A 2200 x 1400 x 1750 mm footprint for finishing rooms with limited space.
Single phase supply
4 kW at 220 V rather than a 380 V three-phase connection.
Single nozzle glue application
One nozzle covers the wing and panel gluing pattern.
0.3 mm positioning
Holds wing position so the collapsible box folds flat and square.
Wide cover envelope
Cover sizes from 250 x 180 mm to 1000 x 490 mm.
Machine Gallery

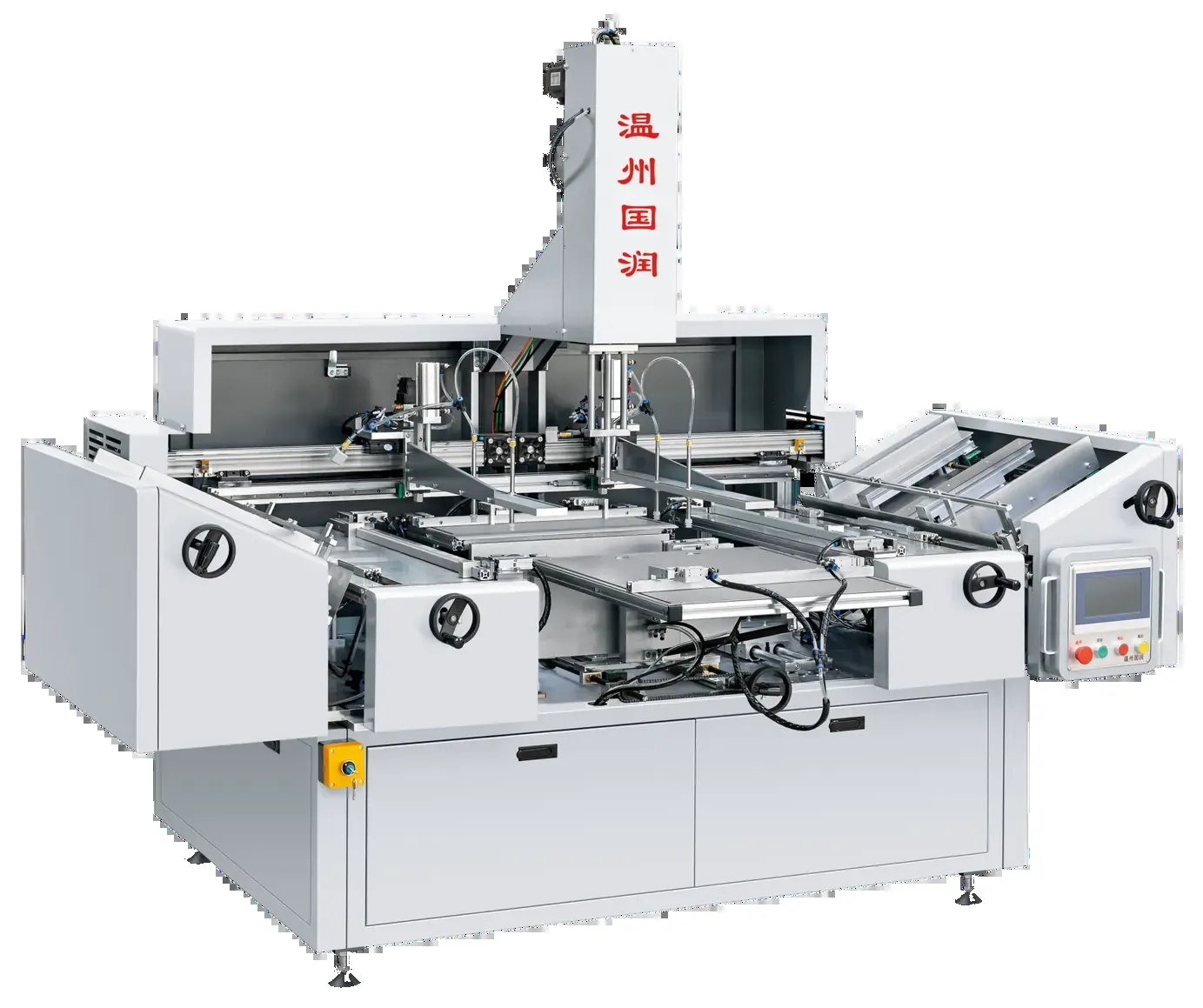

The GR-1000BA In Detail
Specifications
GR-1000BA Technical Specifications
Figures published by Wenzhou Guorun Machinery for this model. Where a value is marked TBC it has not been published and must be confirmed with the factory before you quote it.
| Model No. | GR-1000BA |
|---|---|
| Machine Size | 2200 x 1400 x 1750 mm |
| Machine Weight | 260 kg |
| Air Pressure | 0.7 MPa |
| Machine Power | 4 kW / 220 V |
| Production Speed | 0-18 pcs/min |
| Max Cover Size | 1000 x 490 mm |
| Min Cover Size | 250 x 180 mm |
| Nozzle Number | 1 |
| Positioning Accuracy | 0.3 mm |
| Maximum Wing Size | 560 x 150 mm |
| Minimum Wing Size | 180 x 40 mm |
Materials and construction: welded steel frame with servo or pneumatic drives, computer glue spraying control and a touch screen operator interface. Compressed air at 0.7 MPa is required on every model.
Use Guide
Setting Up A Format On The GR-1000BA
Step 1Check that the cover and wing sizes sit inside the machine envelope before quoting the job.
Step 2Set the glue pattern for the wing and panel positions on the collapsible blank.
Step 3Fold and reopen a first sample to confirm the box lies flat.
Step 4Clean the nozzle at shift end to keep the glue line consistent.
Compared With Other Guorun Machines
The GR-1000BA is the entry point of the collapsible range. The GR-1100ZA automates the same job across a nine-metre line at 25 kW, and the GR-1200ZA adds CCD vision and a four-axis robot for irregular and craft boxes.
Quality Control Certification and Customisation
Every machine is assembled, wired and test run in the Guorun workshop before despatch, with the customer's own box format used for the trial where one has been supplied. Guorun holds eleven granted Chinese patents covering forming, feeding, conveying and glue spraying mechanisms, listed on the About page.
Full production lines are customised to customer requirements. Delivery is quoted at 30 working days for samples and 45 working days for OEM orders, with a one-year warranty and lifetime machine operation training.
Industries
Related Solutions
Related Products
Other Machines In The Collapsible Box Making Machine Range
GR-1100ZA
GR-1100ZA Fully Automatic Collapsible Box Spraying and Assembly Line
Nine-metre fully automatic collapsible box spraying and assembly line handling shells to 1050 x 500 mm at 0.3 mm positioning and about 7,000 units per day.
GR-1200ZA
GR-1200ZA 7-Link Board Collapsible Box Forming Machine
High-precision 7-link board collapsible box line with CCD vision glue dispensing and a four-axis robot, running shells to 1000 x 450 mm at 2 mm robot positioning.
Answers
GR-1000BA Questions
Does the GR-1000BA need three-phase power
No. It runs on 4 kW at 220 V, with compressed air at 0.7 MPa.
What is the smallest collapsible box it can form
Cover size 250 x 180 mm, with a minimum wing size of 180 x 40 mm.
Can it make handbag-style folding boxes
Yes. Guorun lists handbag-style collapsible boxes as a standard application for this machine.
How heavy is the machine
260 kg, which makes it the easiest machine in the range to relocate inside a plant.
What output should we plan for
0 to 18 pieces per minute, depending on box size and operator pace.
What is included after delivery
A one-year warranty and lifetime machine operation training.
Next Step
Request A Quotation For The GR-1000BA
Send your cover size, inner box size and type, film finish and daily volume. We will confirm whether the GR-1000BA envelope covers it and quote delivery, terms and freight.
