Fully automatic dual-use assembly machine for high-end cigarette, phone, wine, moon cake and ring boxes, with covers to 930 x 500 mm and 18-28 pcs/min forming.

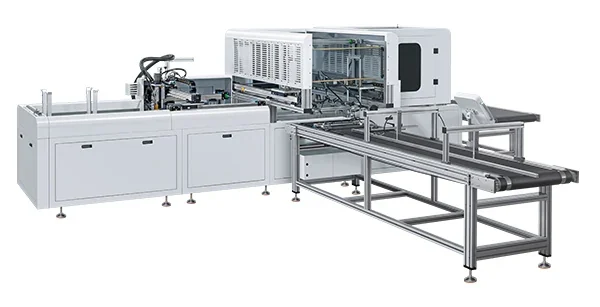

The GR-950WA is a fully automatic integrated assembly machine that forms and assembles book-shaped covers and cover boxes in one pass. It is used for high-end cigarette boxes, mobile phone boxes, health care boxes, wine boxes, moon cake boxes, ring boxes and general gift boxes. A GR-1020ZA variant extends the maximum cover width to 1020 mm.
Formats where seam tightness and film finish decide whether the box is accepted.
Mobile phone boxes and similar sky-cover formats produced in long runs.
Seasonal gift formats with large covers and tight visual standards.
Small inner boxes down to 110 x 110 x 10 mm assembled without a mould.
One machine covers side-panel and flat-plane assembly for book-shaped and cover boxes.
Protects matte, tactile and metallised face papers during positioning.
Automatic four-corner clamping and suction dual-mode for three inner box types.
No modular replacement between formats.
Imported electrical servo system holding +0.4 mm forming error.
GR-950ZA at 4400 x 2100 x 1600 mm and GR-1020ZA at 4800 x 2100 x 1600 mm.
Figures published by Wenzhou Guorun Machinery for this model. Where a value is marked TBC it has not been published and must be confirmed with the factory before you quote it.
| Model No. | GR-950ZA / GR-1020ZA |
|---|---|
| Machine Size | 4400 x 2100 x 1600 mm / 4800 x 2100 x 1600 mm |
| Machine Weight | 2000 kg |
| Air Pressure | 0.7 MPa |
| Machine Power | 8 kW / 380 V |
| Production Speed | 0-25 pcs/min |
| Max Cover Size | 930 x 500 mm / 1020 x 500 mm |
| Min Cover Size | 120 x 90 mm / 120 x 100 mm |
| Nozzle Number | 1 |
| Positioning Accuracy | +0.4 mm |
| Maximum Inner Box | 500 x 500 x 180 mm |
| Minimum Inner Box | 110 x 110 x 10 mm |
| Maximum Painting Area | 580 x 500 mm |
| Minimum Glue Area | 80 x 80 mm |
Materials and construction: welded steel frame with servo or pneumatic drives, computer glue spraying control and a touch screen operator interface. Compressed air at 0.7 MPa is required on every model.
The GR-950WA takes larger covers than the GR-580/720ZA and is the machine for wine, moon cake and large gift formats, while the GR-580/720ZA holds tighter +0.2 mm accuracy on small cosmetic work. Both run fully automatically, unlike the semi-automatic GR-600B and GR-1000B.
Every machine is assembled, wired and test run in the Guorun workshop before despatch, with the customer's own box format used for the trial where one has been supplied. Guorun holds eleven granted Chinese patents covering forming, feeding, conveying and glue spraying mechanisms, listed on the About page.
Full production lines are customised to customer requirements. Delivery is quoted at 30 working days for samples and 45 working days for OEM orders, with a one-year warranty and lifetime machine operation training.
Single-station semi-automatic rigid box assembly machine that sprays glue on side panels and flat surfaces, takes shells up to 850 x 450 mm and changes over in about five minutes.
Two-station semi-automatic rigid box assembly machine covering shells up to 950 x 550 mm, with separate size envelopes for single and dual station work.
Fully automatic cosmetic box assembly machine with suspended shell positioning, servo linkage and one-time bubble pressing at 0-28 pcs/min and +0.2 mm forming error.
High-end cigarette boxes, mobile phone boxes, health care boxes, wine boxes, moon cake boxes, ring boxes and general gift boxes.
Guorun states a forming error of +0.4 mm across the working envelope.
Maximum assembly and forming speed is 18 to 28 pieces per minute, with no waste production at the rated speed.
The GR-1020ZA is 400 mm longer and takes covers up to 1020 x 500 mm instead of 930 x 500 mm. The other listed parameters are the same.
No. The four-corner clamping and suction device covers bottomless, enclosed and bottomed inner boxes without moulds.
By sea freight for cost, or by air freight for urgent orders. Door-to-door service is available.
Send your cover size, inner box size and type, film finish and daily volume. We will confirm whether the GR-950WA envelope covers it and quote delivery, terms and freight.
