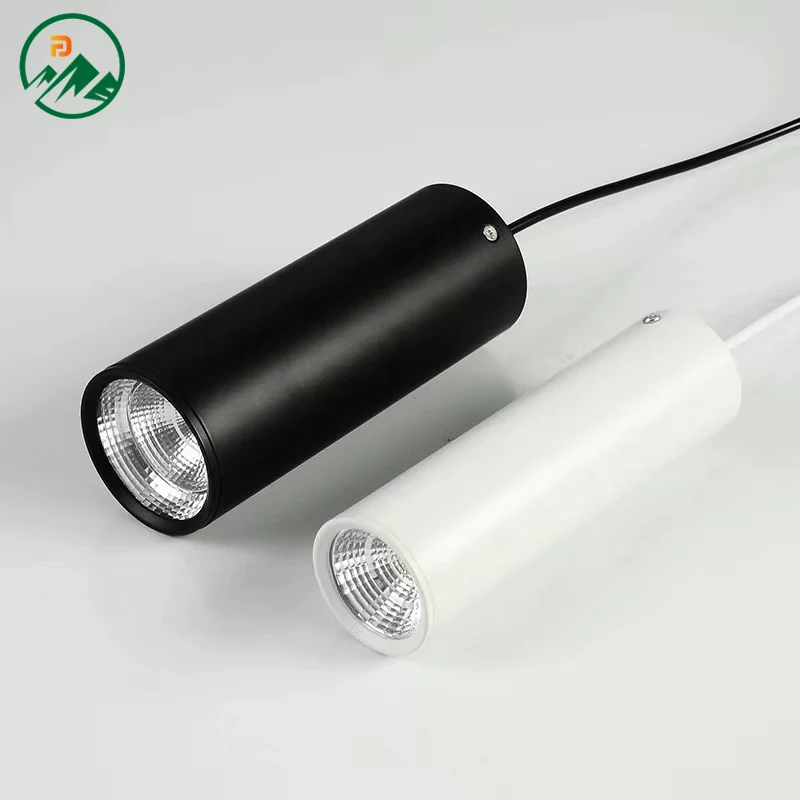

Suspension LED Down Light
The FD-SD010R05 is a 5W suspension LED down light designed for commercial office environments where a clean, low-profile ceiling fixture is needed. The fixture is constructed from aluminium with a white or black finish, and it operates on AC85-265V input, making it compatible with standard office power supplies. It has an IP20 rating, suitable for dry indoor spaces without exposure to moisture or dust. The colour temperature range of 2800K to 6500K allows selection of warm, neutral or cool white light depending on the workspace requirement.
| Model | FD-SD010R05 |
|---|---|
| Power | 5W |
| Input Voltage | AC85-265V |
| IP Rating | IP20 |
| Dimension | D60 x H150 mm |
| Material | Aluminium |
| Colour Temperature | 2800-6500 |
| Finish | White/Black |
| Warranty | 3 Years |
Key Benefits
- 5W power draws low energy while delivering sufficient light for office ceiling layouts
- AC85-265V input works with standard office electrical systems across Europe and the Middle East
- IP20 rating is sufficient for dry indoor office ceilings without water or dust exposure
- Aluminium body provides good heat dissipation and structural rigidity
- White or black finish matches common office ceiling aesthetics
- 3-year warranty covers typical office project lifespans
Application Scenarios

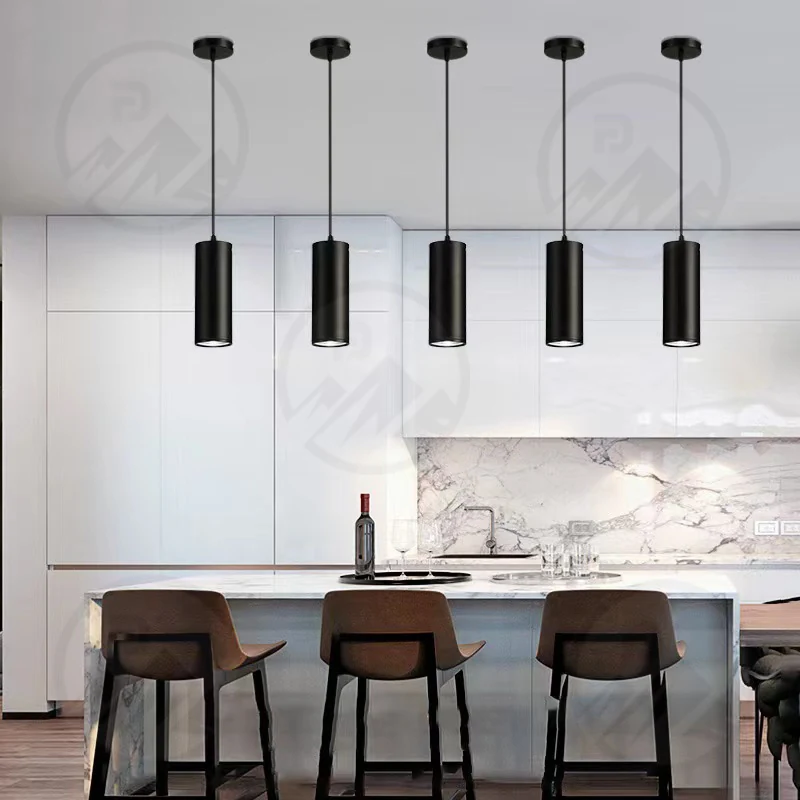

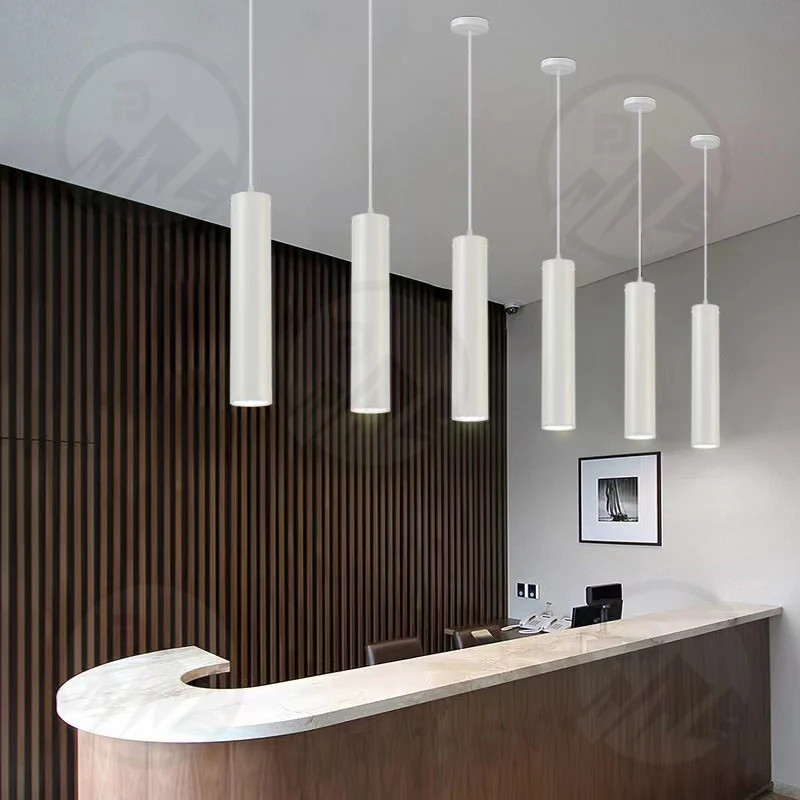

- Ceiling installation in open-plan office spaces with suspended ceilings
- Lighting in meeting rooms, corridors, and reception areas of commercial buildings
- Uniform lighting in office lobbies and administrative zones
- Replacement of older fluorescent troffers in retrofit office projects
Who It Is For
- Commercial office project contractors installing ceiling-mounted lighting
- Facility managers upgrading office lighting with energy-efficient LED fixtures
- Electrical wholesalers supplying office lighting in Europe and the Middle East
- Brand owners sourcing OEM down lights under their own label
Problems It Solves
- Older fluorescent troffers consume more power and require frequent lamp replacements
- Inconsistent light quality from low-efficiency LED panels can cause visual fatigue
- Lack of colour temperature flexibility in standard office fixtures limits design options
- Fixtures with no clear IP rating may be incorrectly specified for dry indoor use
Technical Features
- 5W LED power with AC85-265V input for universal voltage compatibility
- Aluminium body for heat dissipation and long-term stability
- IP20 rating for dry indoor environments only
- Colour temperature range of 2800K to 6500K for flexible lighting design
- D60 x H150mm dimensions fit standard ceiling cut-outs in office installations
- Available in white or black finish to match ceiling and interior design
Materials
- Aluminium body for heat dissipation and structural strength
- Powder-coated finish in white or black for consistent appearance
- Internal wiring and connector rated for indoor dry use
Manufacturing Process
- Aluminium body die-casting and surface finishing
- Powder coating application for white or black finish
- LED board assembly with driver integration
- Final inspection for dimensional accuracy and finish quality
- Aging test under power before packing
Quality Control
- Incoming inspection of LED boards and drivers
- Visual inspection of finish and surface defects
- Final power test and aging run before packing
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Available in white or black finish to match project specifications
- OEM and ODM production for buyers selling under their own brand
- Driver can be supplied fitted or omitted based on project wiring strategy
Compared With the Alternatives
Fluorescent troffer
Lower power draw, longer life, no mercury content, and better colour consistency
Surface-mounted LED panel
Lower profile and cleaner ceiling line, better for suspended ceiling integration
Higher IP-rated down light
Lower cost and lighter weight, but not suitable for damp or dusty environments

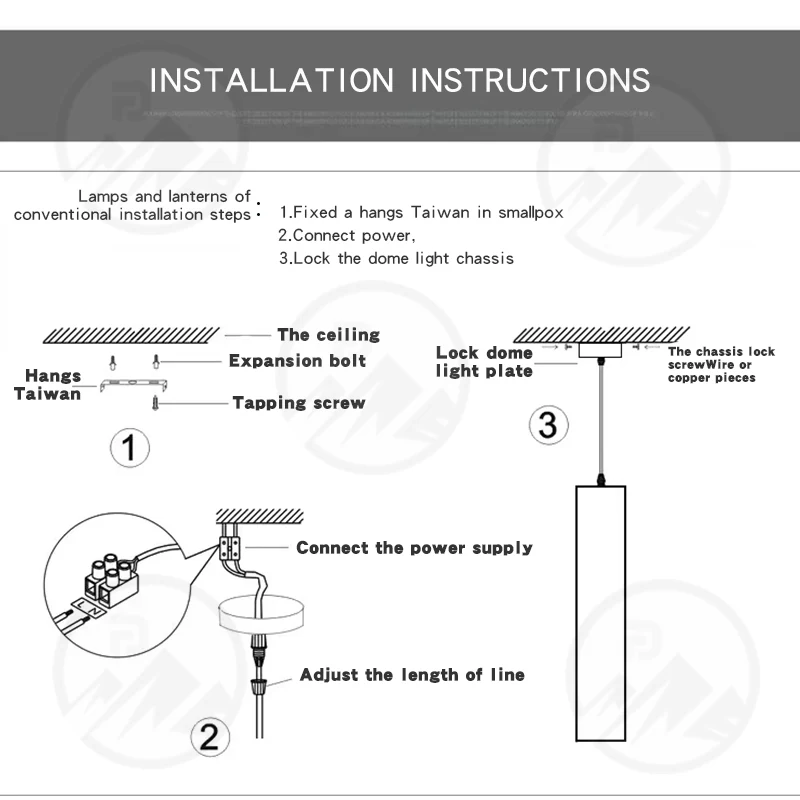

Use Guide
- Ensure ceiling cut-out is D60 mm diameter and the mounting point is structurally sound
- Connect to AC85-265V supply; verify voltage matches local office power
- Select 2800K, 4000K or 6500K CCT based on office lighting design requirements
- Install with the fixture flush to the ceiling to maintain clean visual lines
- Avoid installation in areas with moisture, dust, or high vibration
Suspension LED Down Light Questions
What is the input voltage range?
The fixture operates on AC85-265V, compatible with standard office power supplies in Europe and the Middle East.
Is the driver included?
Yes, the driver is integrated into the fixture. It can also be supplied without a driver if centralised drivers are used.
What is the IP rating?
The fixture has an IP20 rating, suitable only for dry indoor environments without dust or moisture exposure.
Can I choose the colour temperature?
Yes, the model supports 2800K (warm white), 4000K (neutral white), and 6500K (cool white) for different office lighting needs.
What finishes are available?
The fixture is available in white or black finish to match ceiling and interior design.
Is there a sample order option?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production typically takes 1-2 weeks, with shipping via DHL, UPS, FedEx or TNT taking 3-5 days in transit.
