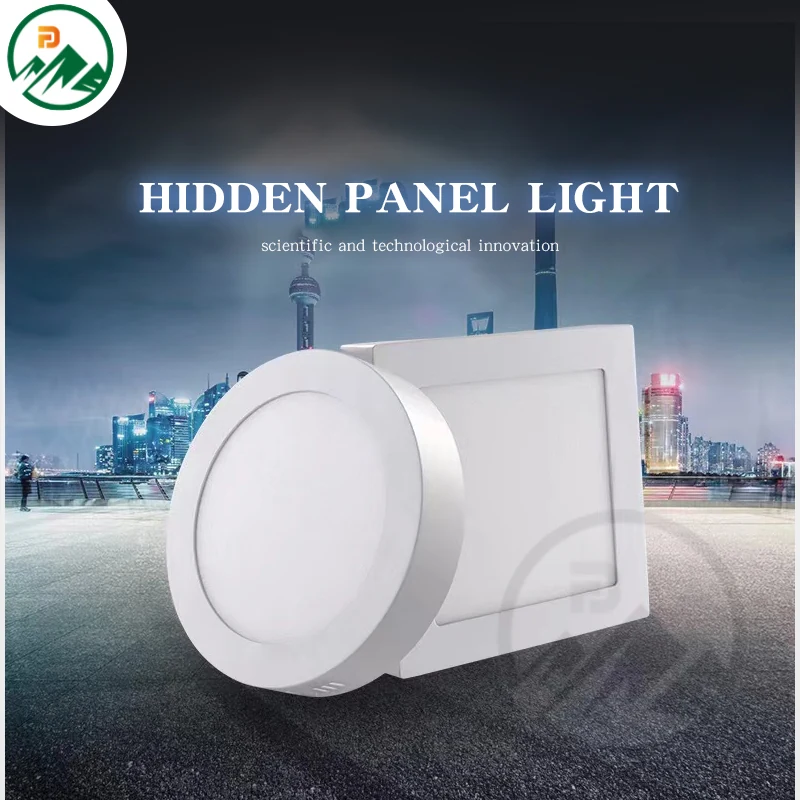

24W High Quality Design LED Ceiling Light
The FD-CL010H24 is a 24W flush-mounted ceiling light designed for commercial office environments where a clean, compact ceiling fixture is needed. The fixture has a circular aluminium body with a diameter of 300mm and a height of 40mm, making it suitable for low-ceiling installations. It operates on AC85-265V input, allowing compatibility with standard office electrical systems. The light uses a Philips LED chip and a Dark Energy driver, delivering consistent output in enclosed ceiling spaces. The IP20 rating indicates it is for indoor use only, with no protection against dust or water ingress.
| Model | FD-CL010H24 |
|---|---|
| Power | 24W |
| Input Voltage | AC85-265V |
| IP Rating | IP20 |
| Dimension | D300 x H40 mm |
| Material | aluminium |
| LED Chip | Philip |
| Driver | Dark Energy |
| Warranty | 3 Years |
Key Benefits
- Compact size fits in low-ceiling commercial office spaces without obstructing ceiling height
- AC85-265V input supports standard office voltage ranges across Europe and the Middle East
- Aluminium body provides efficient heat dissipation in enclosed ceiling installations
- Philips LED chip ensures stable lumen output and long life in continuous office use
- Dark Energy driver offers reliable performance with minimal flicker in office lighting
- Flush-mounted design maintains a clean, unobtrusive ceiling profile
Application Scenarios
- Office ceiling installations in open-plan workspaces with limited ceiling height
- Corridor and hallway lighting in commercial buildings where minimal profile is required
- Reception areas and meeting rooms needing discreet, uniform ceiling lighting
- Retail office zones and back-of-house areas requiring durable, low-maintenance fixtures
Who It Is For
- Commercial office lighting contractors specifying ceiling fixtures for new builds
- Facility managers replacing older ceiling lights in office buildings
- Electrical wholesalers supplying office lighting to regional distributors
- Brand owners sourcing OEM ceiling lights under their own label for commercial projects
Problems It Solves
- Large ceiling lights take up vertical space in low-ceiling offices, reducing headroom
- Non-uniform lighting from mismatched or poorly matched fixtures in office zones
- Frequent driver failures in low-cost fixtures lead to higher maintenance costs
- Inconsistent LED performance due to poor thermal management in enclosed ceiling housings
- Lack of compatibility with standard office voltage ranges across different regions
Technical Features

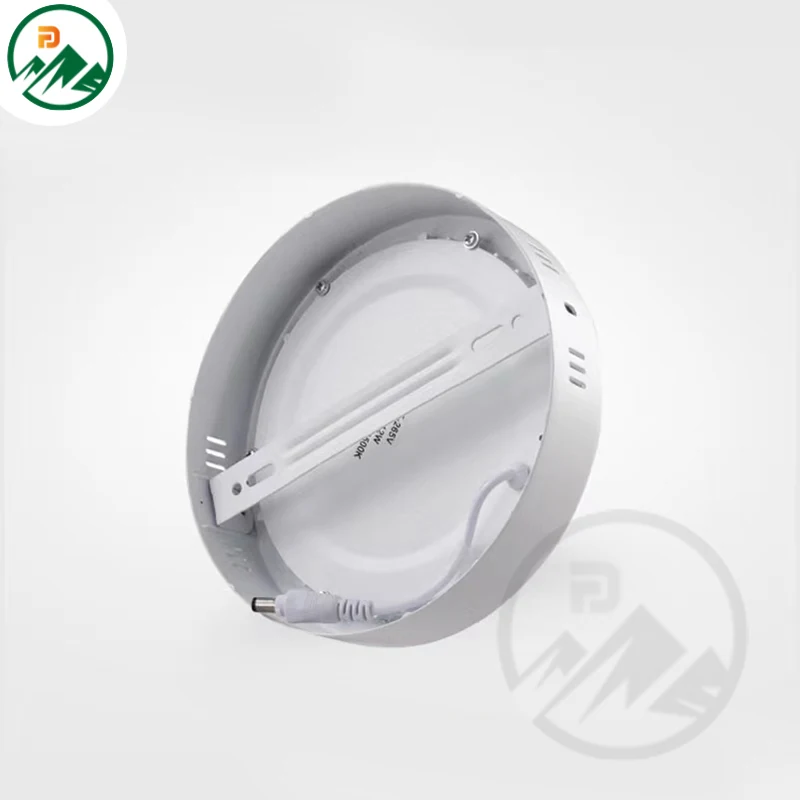

- Flush-mounted circular design with D300 x H40mm dimensions for low-profile ceiling fit
- AC85-265V input supports standard office voltage systems in Europe and the Middle East
- Aluminium body for heat dissipation in enclosed ceiling installations
- Philips LED chip for stable lumen output and long operational life
- Dark Energy driver for reliable operation with minimal flicker
- IP20 rating for indoor use only, no protection against dust or moisture
Materials
- Aluminium body for heat dissipation and structural rigidity
- Polished or anodised finish on the aluminium surface for a clean visual appearance
- Internal driver housing with heat-conductive material to support the Dark Energy driver
Manufacturing Process
- Aluminium body die-casting and surface finishing
- LED board assembly with Philips packages and Dark Energy driver
- Fixture sealing and internal wiring for electrical safety
- Final inspection and powered testing before packaging
Quality Control
- Incoming inspection of Philips LED chips and Dark Energy drivers
- Visual and dimensional check of the aluminium body and finish
- Powered test under AC85-265V to verify operation and stability
- Stated defective rate below 0.2%
Certification
Only the certification the factory publishes is listed here.
- CE certificate and report
- Stated conformity with CE, RoHS and FCC
Customisation Options
- Customer logo printing available, confirmed against an approved sample before production
- Driver can be supplied fitted or omitted when centralised drivers are used
- OEM and ODM production available for buyers selling under their own brand
- Finish and colour options may be available upon request, based on production capability
Compared With the Alternatives
Ceiling light with plastic body
Aluminium body offers better heat dissipation and longer life, especially in enclosed spaces
Ceiling light with higher IP rating
This model is IP20, suitable only for dry indoor environments; use an IP44 or higher model for humid or wet areas
Ceiling light with integrated driver and no option to omit
This model allows driver to be included or excluded, matching site-specific control strategies

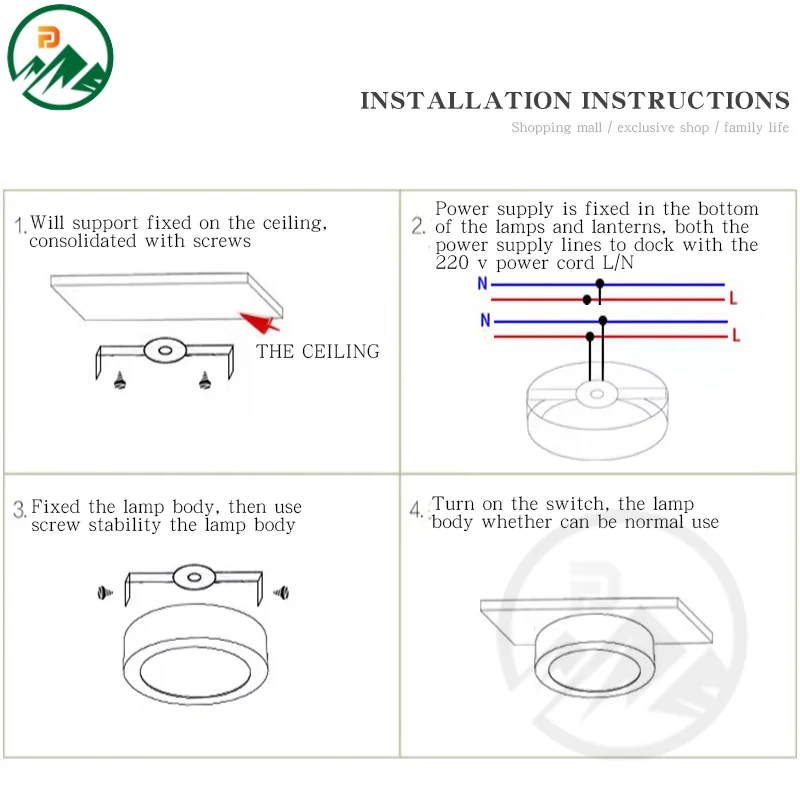

Use Guide
- Mount the fixture flush to the ceiling using the provided mounting bracket and screws
- Ensure the ceiling cavity is clean and dry before installation to avoid moisture ingress
- Connect to AC85-265V circuit; verify voltage range matches local supply
- Do not install in areas with high humidity, dust, or water exposure due to IP20 rating
- Clean the surface with a dry cloth during routine maintenance to maintain appearance
24W High Quality Design LED Ceiling Light Questions
What is the size of this ceiling light?
The fixture is D300 x H40 mm, with a 300mm diameter and 40mm height.
Can it be installed in a damp or wet area?
No. The IP20 rating means it is for indoor dry use only. Use an IP44 or higher rated fixture for damp or wet locations.
Is the driver included?
Yes, the Dark Energy driver is included. It can be omitted if the project uses centralised drivers.
What is the warranty period?
This model carries a 3 year warranty. Across the FENGDIAN range, warranty is 2 to 5 years depending on the product.
Can I order a sample before placing a bulk order?
Yes. Sample orders are accepted, mixed samples are acceptable, and samples typically ship within 3-5 days.
How long does mass production take?
Mass production is typically 1-2 weeks, and goods normally ship by DHL, UPS, FedEx or TNT with 3-5 days in transit, or by air or sea freight.
Is logo printing available?
Yes. Customer logo printing is available and confirmed against an approved sample before production begins.
